Aeroflow Performance External Wastegate, T4 Twin Entry Inlet Flange, V-Band Exhaust Flange Aeroflow BOOSTED 8075 T4 1.10 Turbocharger 1250HP, Hi Temp Black Finish AF8005-4018BLK SR

Roll over image to zoom in Click on image to zoom

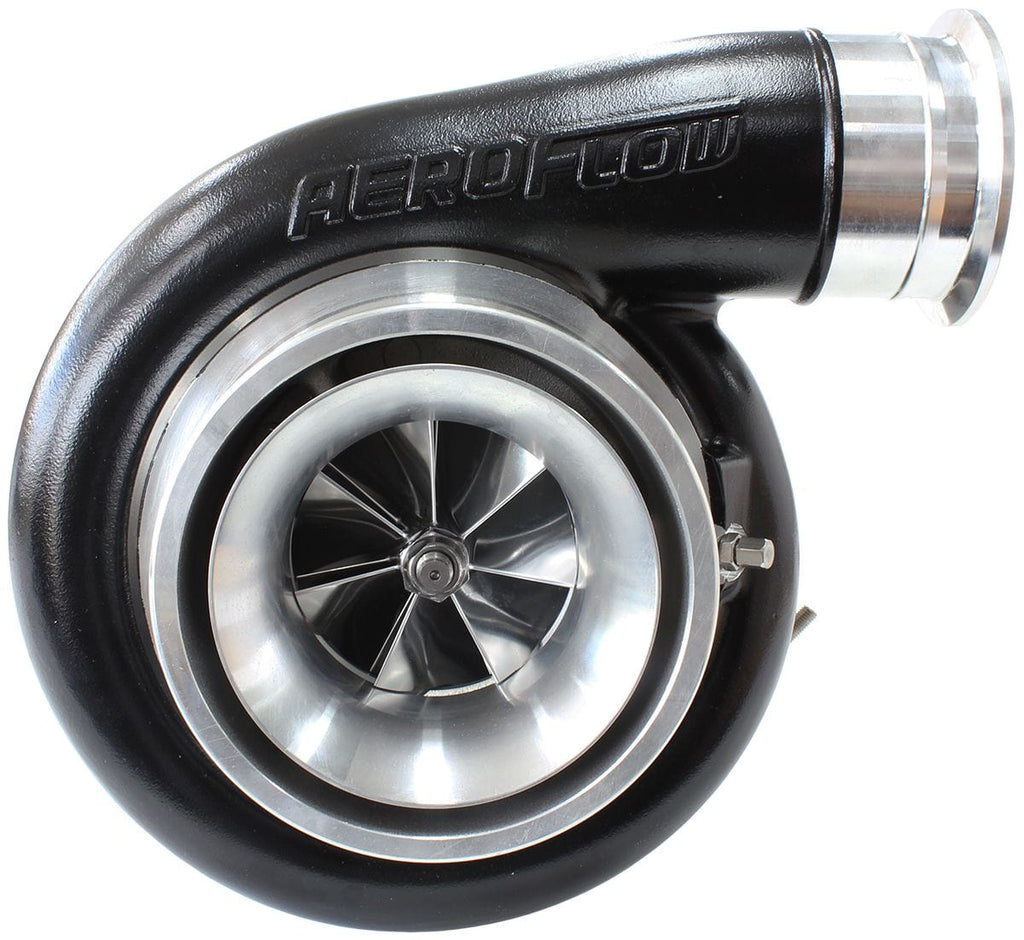

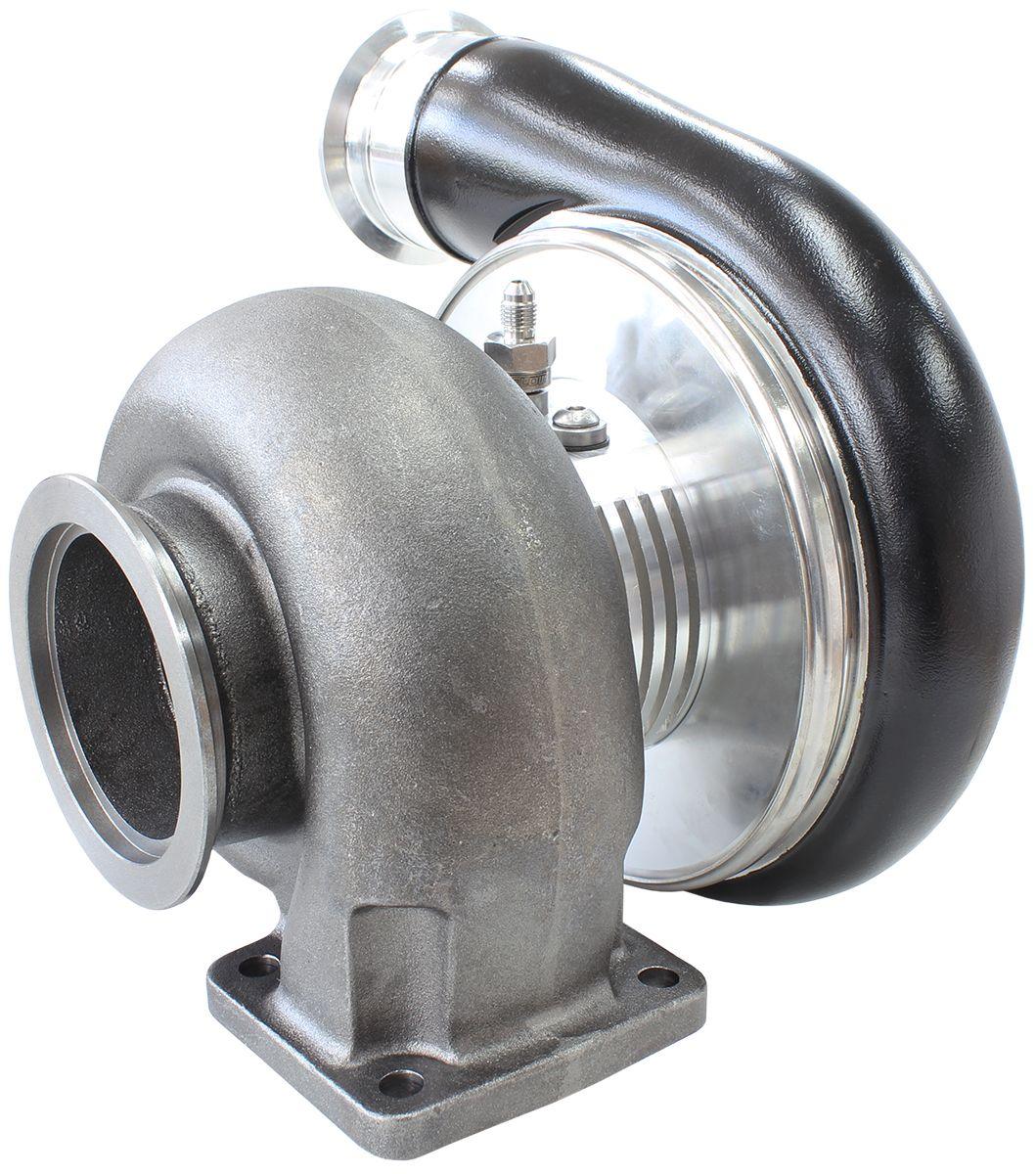

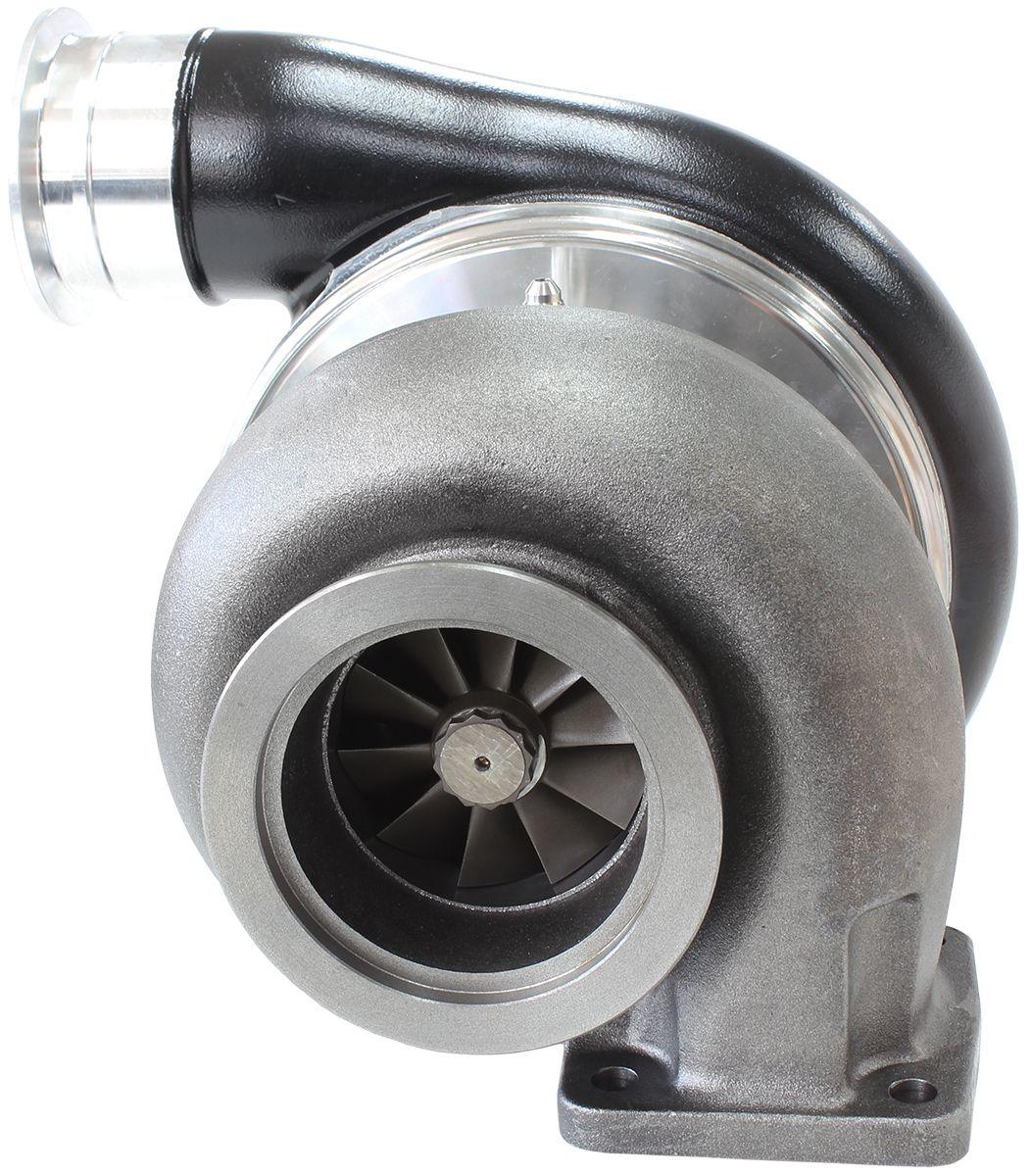

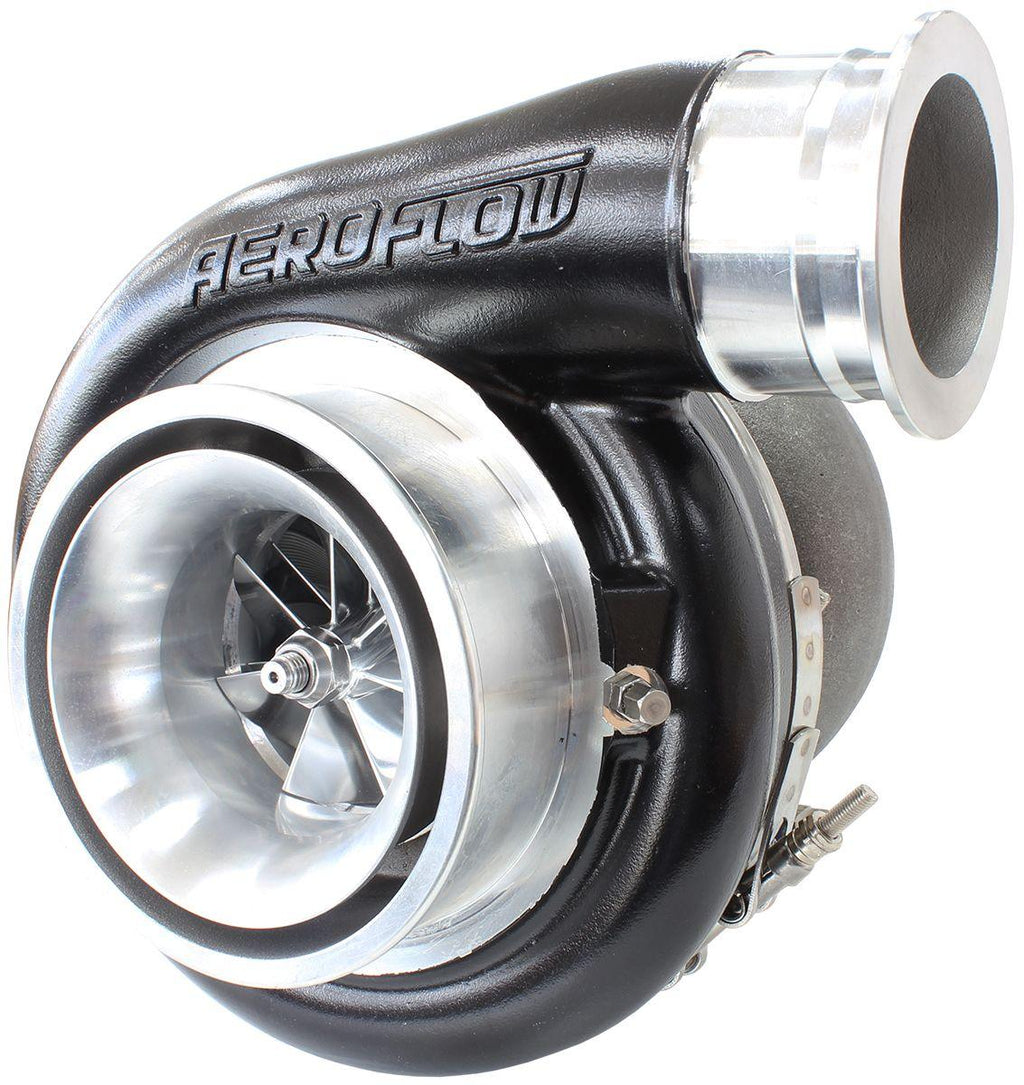

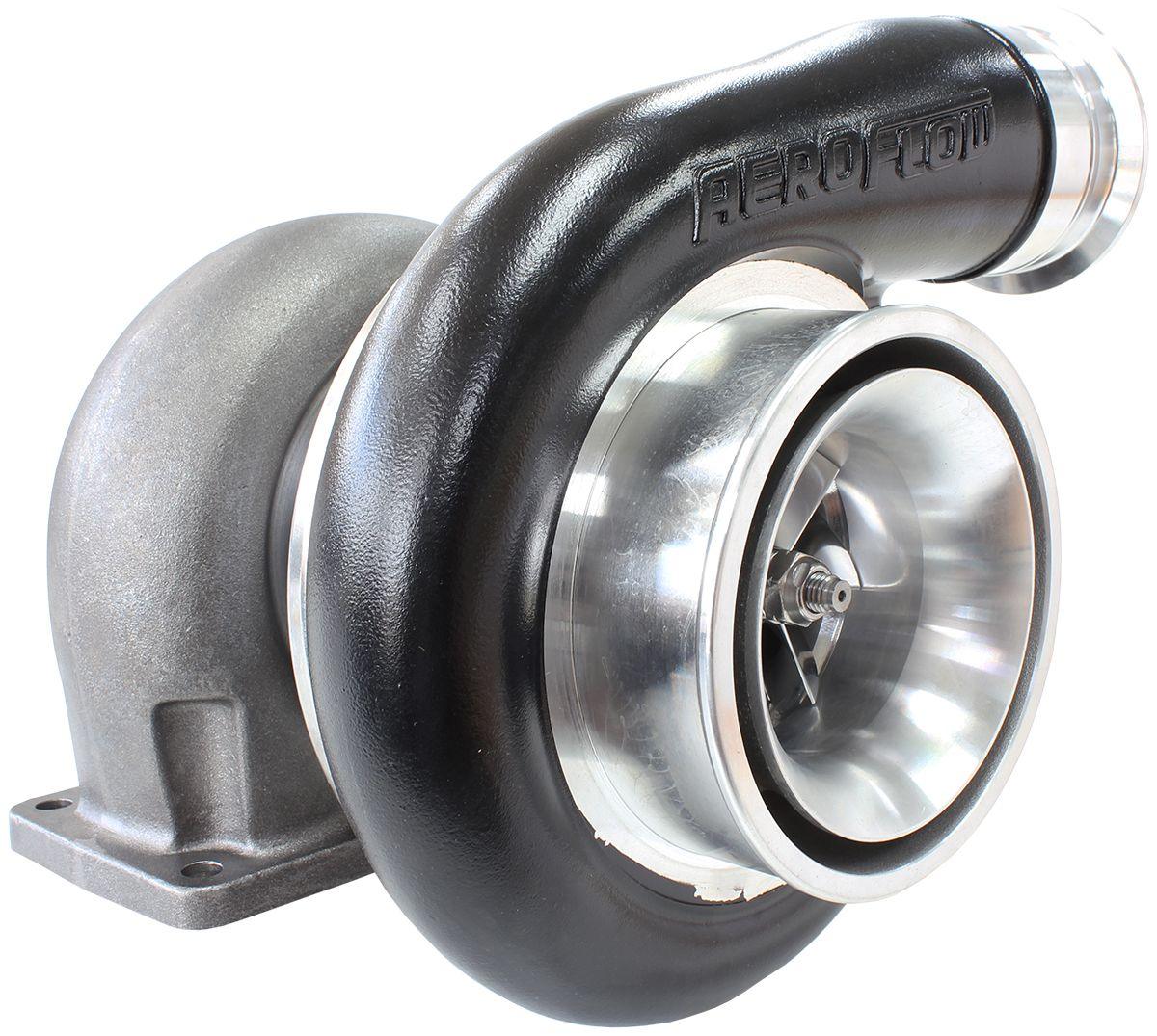

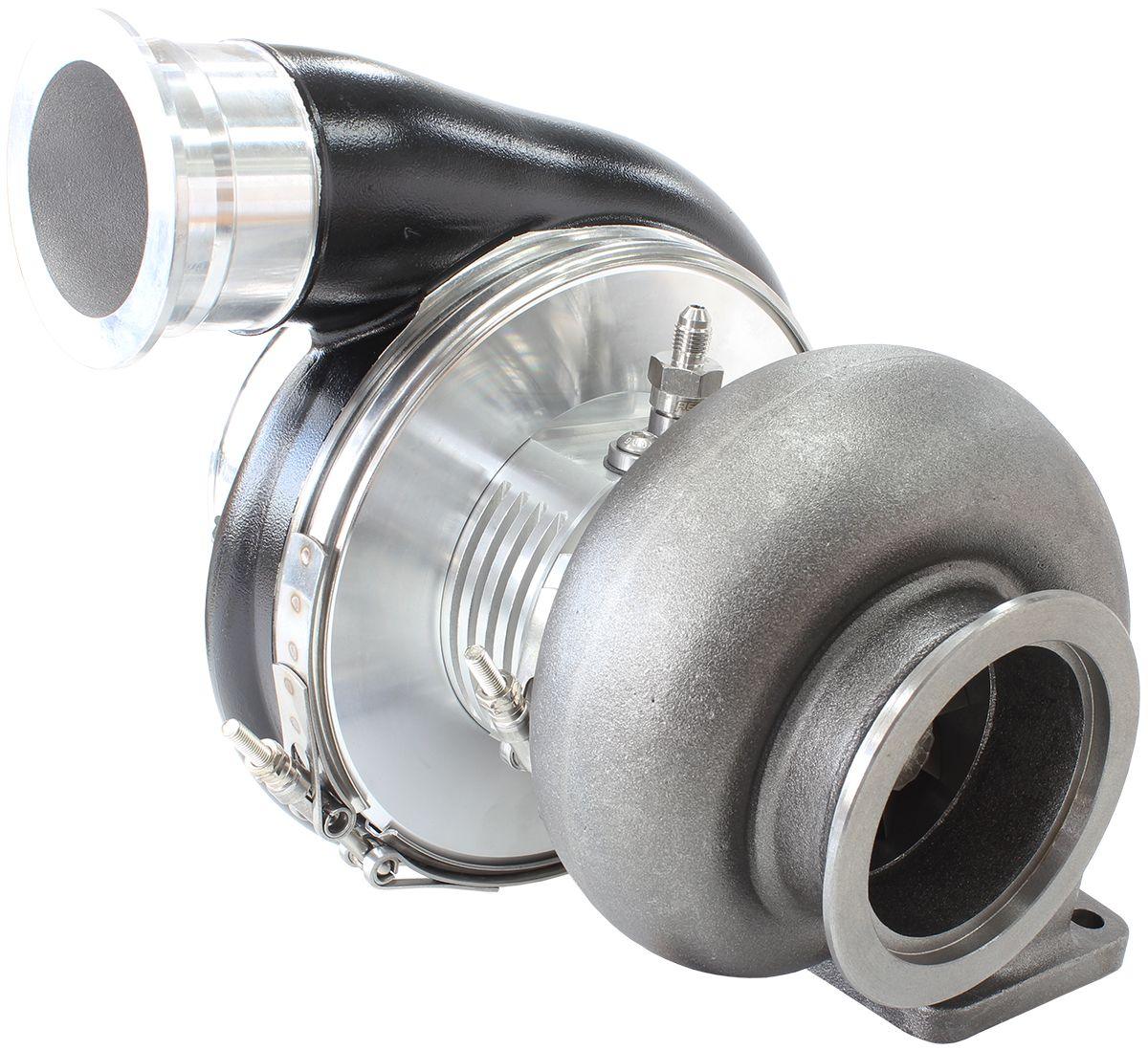

Aeroflow BOOSTED 8075 T4 1.10 Turbocharger 1250HP, Hi Temp Black Finish AF8005-4018BLK

AF8005-4018BLK - BOOSTED 8075 1.10 T4 TWINENTRY

Save $123.94

Aeroflow PerformanceSKU: AF8005-4018BLK

Product: External Wastegate, T4 Twin Entry Inlet Flange, V-Band Exhaust Flange

Variant

Price:

$2,355.00 AUD $2,478.94 AUD

Quantity:

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

BOOSTED 8075 T4 1.10 Turbocharger 1250HP, Hi Temp Black FinishExternal Wastegate, T4 Twin Entry Inlet Flange, V-Band Exhaust Flange
Brand: AEROFLOW
Part Number: AF8005-4018BLK
Description:

Aeroflow Performance Boosted turbochargers are designed specifically for the enthusiast who wants optimal performance at a competitive price. Boosted Turbochargers have a range of specific turbos to meet your power goals, driving style and budget. Boosted turbocharger's utilise billet compressor wheels and feature the latest aerodynamic design that maximises horsepower and boost response throughout the rev range. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to extremely high exhaust gas temperatures.

Boosted Turbocharger's are available in 360° journal bearing, dual and triple ceramic ball bearing cartridges designed to prolong the turbo lifespan and improve shaft balance. Boosted Turbocharger's are also available in oil/water or oil cooled versions to help keep temperatures to a minimum. The boosted range of turbos are available with a ported shroud compressor cover housing which increases surge resistance and provides reliable, continuous power throughout the engine's RPM. Boosted turbochargers are available for a direct bolt-on for some Ford's and Nissan's with further models in development. Boosted turbos are available in natural aluminium or high temp black compressor cover options.

Additional Specifications:

BOOSTED 8075 T4 Turbocharger Specifications

Recommended horsepower rating: 750-1250HP
Recommended engine displacement: 2.5L to 7.0L

- Dualceramic ball bearing
- 7075 billet 7 + 7 compressor wheel
- Ported shroud compressor cover
- BilletCNC core
- This is an oil cooled turbocharger
-Speed sensor port included in compressor cover (Speed sensorsold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T4 twin entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- V-Band compressor outlet flange or cut off v-band to allow a 3" slip on fit
- 1/4" NPT oil feed fittingwith in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flangewith M8 x 1.25mm thread size

CompressorSpecifications
Inducer: 80.30mm
Exducer: 113mm
Extended Tip: 117.36mm
Compressor Inlet: 5.5" slip fit
Compressor Outlet: V-Band (AF8080-1025) or 3" slip fit

Turbine Specifications
Inducer: 83.65mm
Exducer: 75mm
A/R: 1.10
Turbine Inlet Flange: T4
Turbine Outlet Flange: V-Band (AF8080-1001)

Wastegate
External wastegate
Important Information:

Boosted by Aeroflow products are manufactured to industry standard specifications from quality materials. Utmost care is taken to ensure products are free from blemishes, inconsistencies and defects. Aeroflow products carry a one year warranty from the date ofpurchase however warranty willbe void if the product is not used in the correct way for which it was intended. BoostedTurbochargers and replacement parts are designed for street use only. Products used in race applications and/or products that have been modified, damaged, incorrectlyinstalled or incorrectly/poorly maintained are not covered by this warranty. Proof of purchase will be required for all warranty claims.

This Boosted ball bearing turbocharger from Aeroflow Performance does not feature an internal oil flow restrictor. A -4AN fitting is provided with a built in external oil feed restrictor and must be used to ensure oildoes not push past the seals and shorten the life span of the turbocharger. Should you choose not to use the provided-4AN fitting then an external oil feed restrictor (AF399-04 or AF399-03, available for purchase separately) must be installed in the turbo oil feed line at the engine side and turbo side of the line. Failure to use a suitable restrictor will void the warranty. Boosted turbochargers that feature water cooling ports must have these ports connected to the water cooling system in order to cool the turbocharger core.Failure to connect any and allof these ports will void all warranties.
