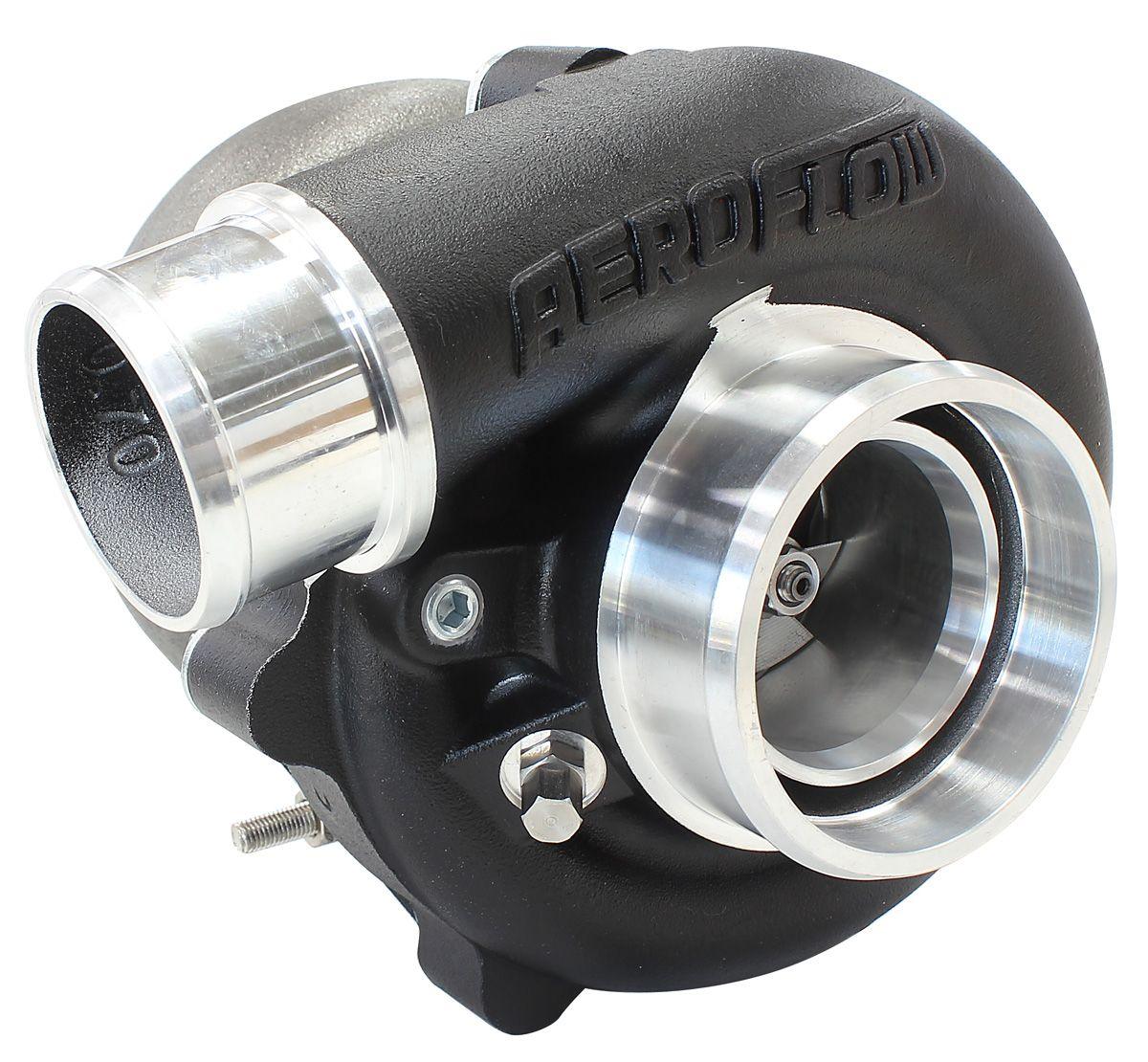

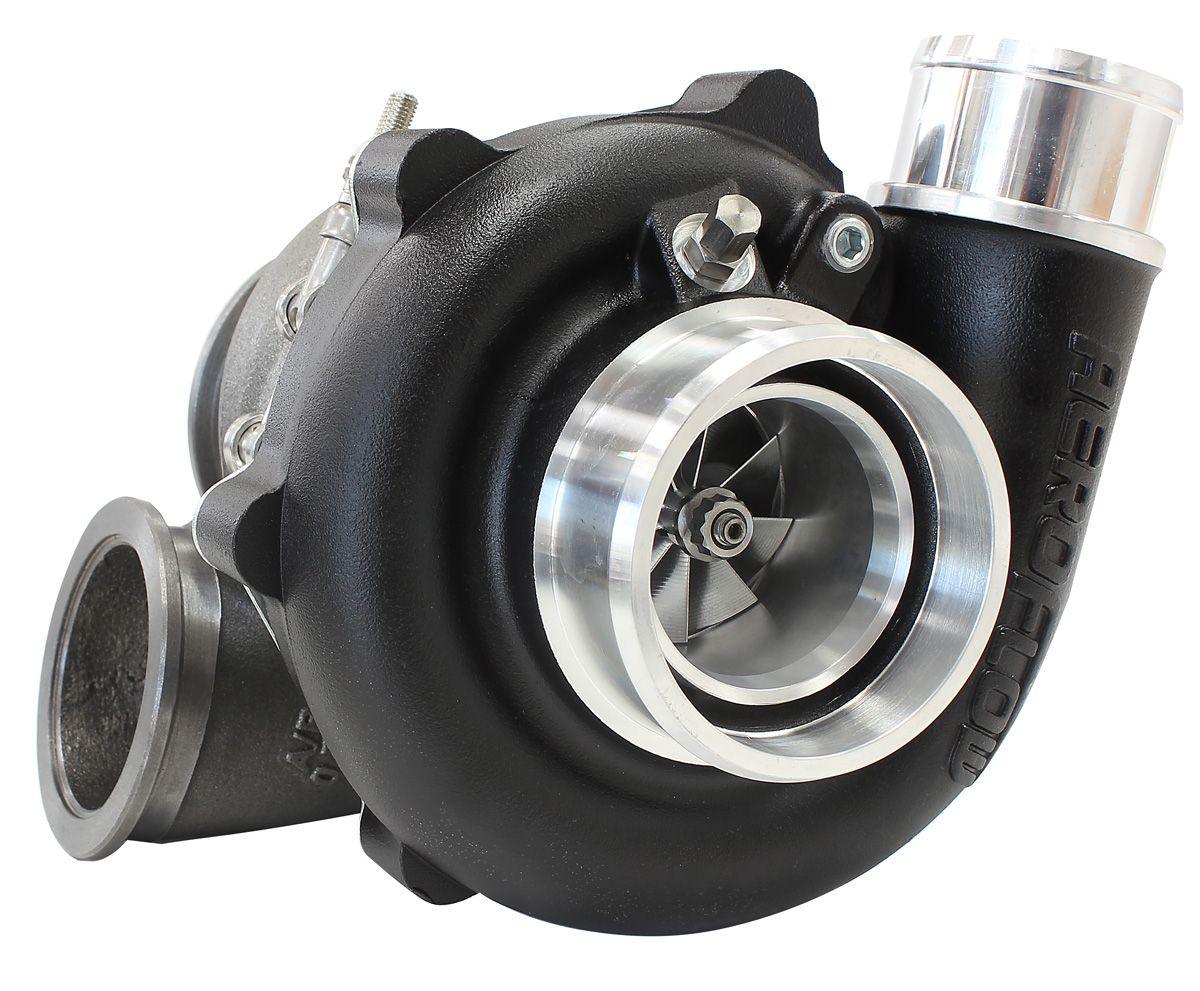

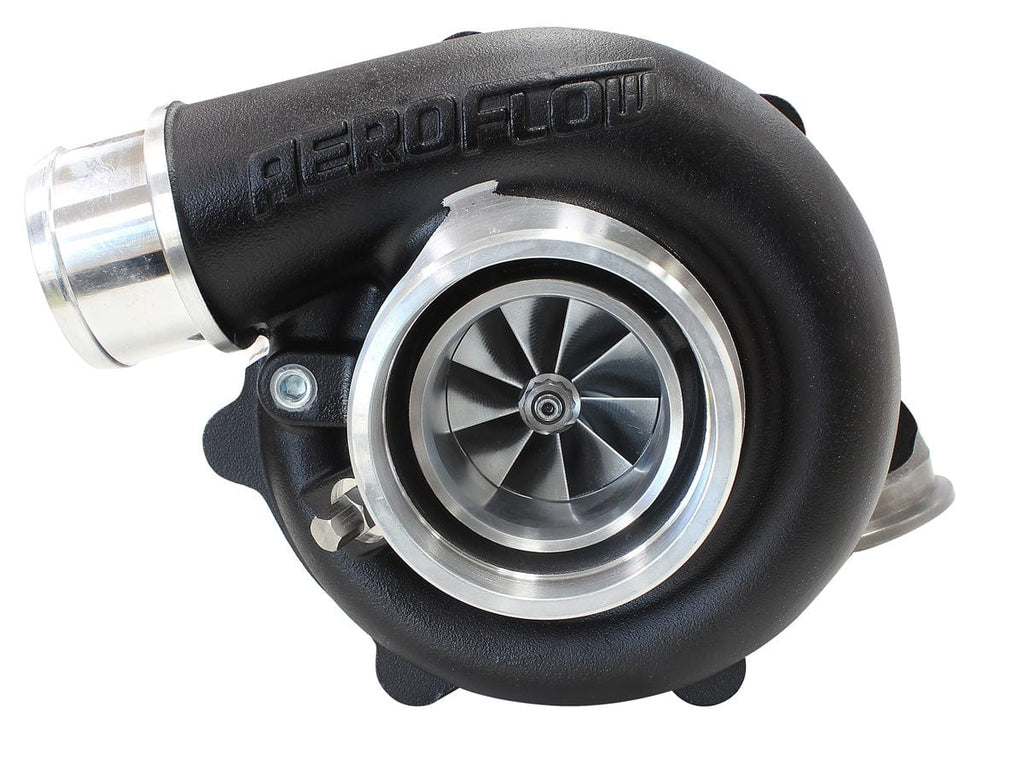

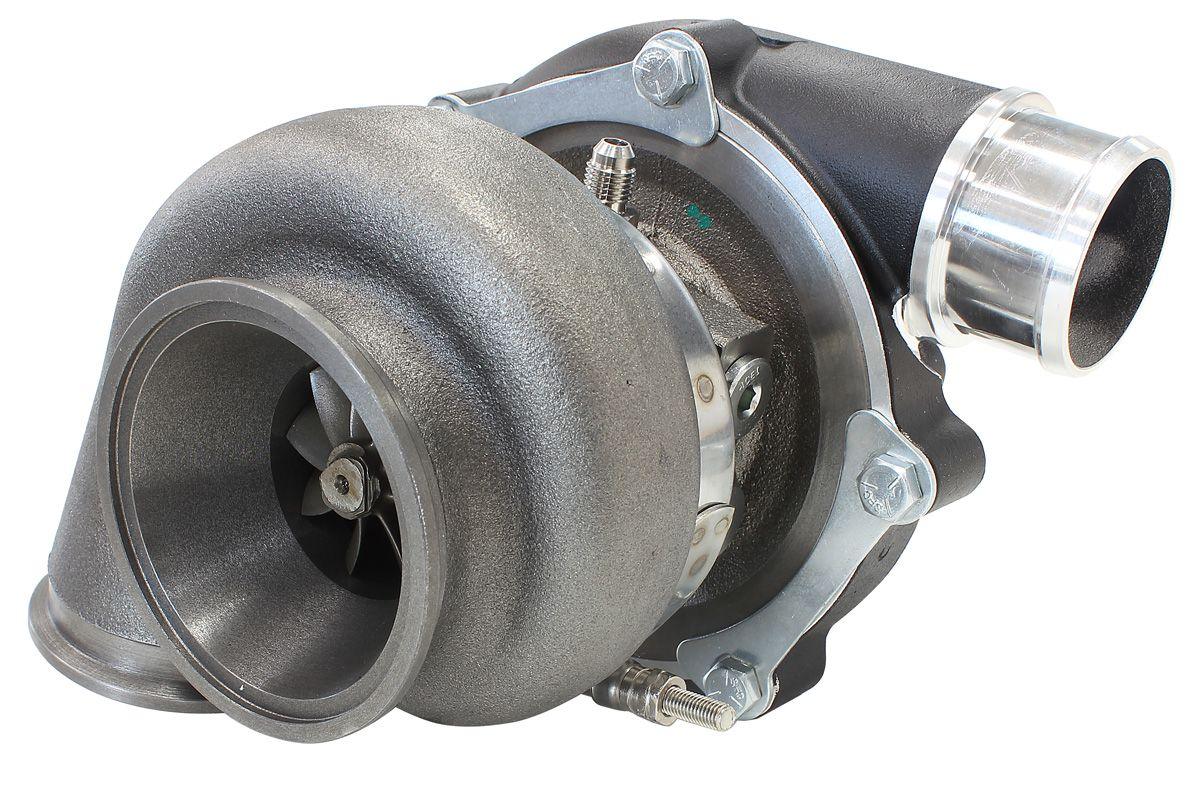

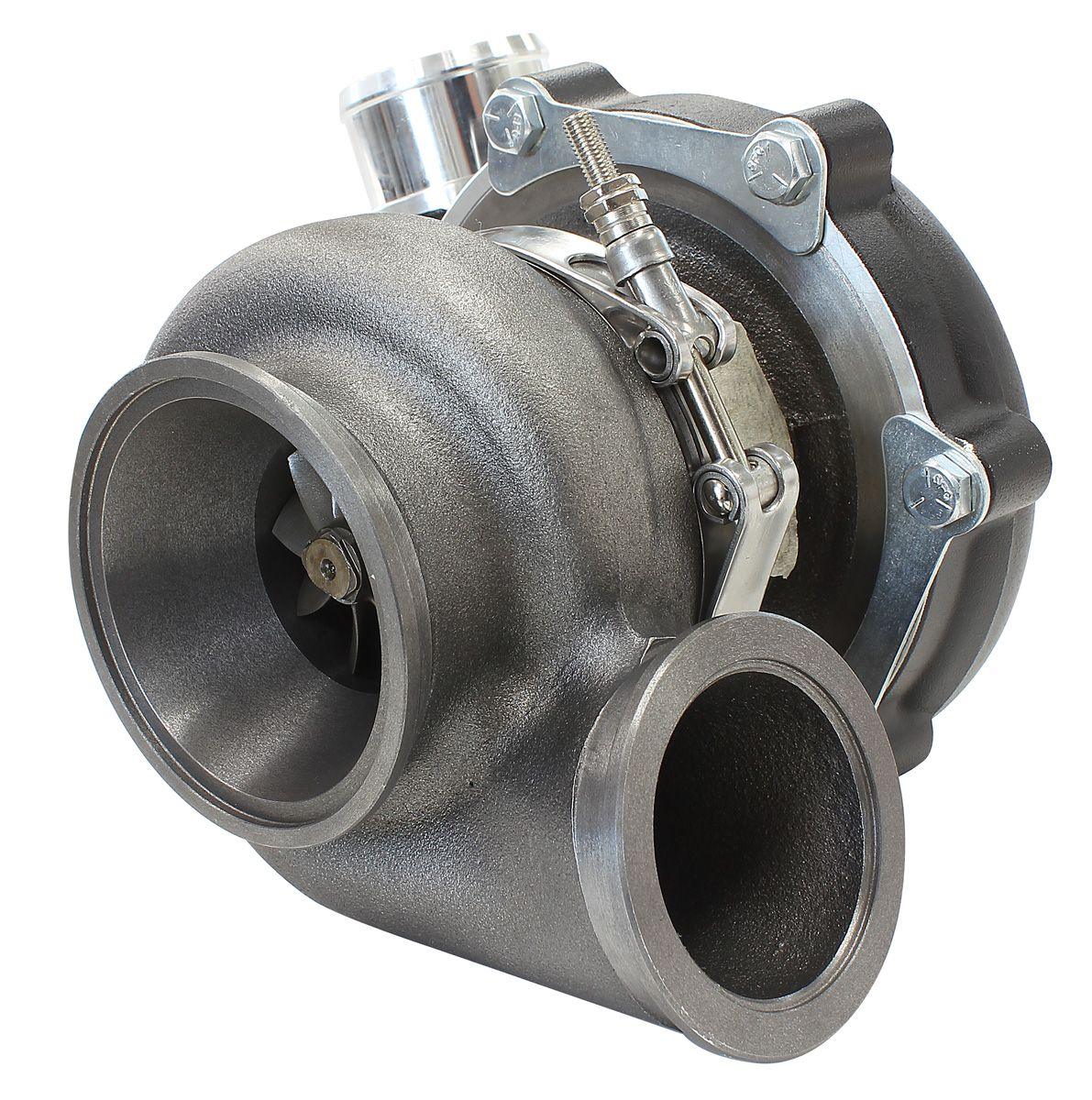

This is a reverse rotation turbocharger for applications that want the perfect twin turbo installation or a single reverse rotation turbo with installation restrictions. Matches Boosted 4849 (AF8005-2010) standard rotation turbocharger.
Recommended horsepower rating: 300-550HP
Recommended engine displacement: 1.4L to 3.0L
- V-Band turbine inlet and outlet
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor housing cover
- Speed sensor port included in compressor cover (Speed sensor sold separately,AF8050-1010)
- 1/8" NPT boost reference port
- SiMo-nodular cast ironrear housing
- 4 x M14 x 1.5mm coolant fitting ports (Must install water lines on opposite sides of the core)
- 7/16"-24 oil feedfitting with in-built restrictor (Warranty VOID if not used)
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
- External wastegate
Compressor Specifications
Inducer: 48mm
Exducer: 62mm
Extended Tip: 62mm
A/R: 0.70
Compressor Inlet: 3" Slip fit
Compressor Outlet: 2" Slip fit
Turbine Specifications
Inducer: 54mm
Exducer: 49mm
A/R: 0.72
Turbine Inlet Flange: V-Band (AF8080-1016)
Turbine Outlet Flange: V-Band (AF8080-1000)
Wastegate
External wastegate
Important Information:
Boosted by Aeroflow products are manufactured to industry standard specifications from quality materials. Utmost care is taken to ensure products are free from blemishes, inconsistencies and defects. Aeroflow products carry a one year warranty from the date ofpurchase however warranty willbe void if the product is not used in the correct way for which it was intended. BoostedTurbochargers and replacement parts are designed for street use only. Products used in race applications and/or products that have been modified, damaged, incorrectlyinstalled or incorrectly/poorly maintained are not covered by this warranty. Proof of purchase will be required for all warranty claims.
This Boosted ball bearing turbocharger from Aeroflow Performance does not feature an internal oil flow restrictor. A -4AN fitting is provided with a built in external oil feed restrictor and must be used to ensure oildoes not push past the seals and shorten the life span of the turbocharger. Should you choose not to use the provided-4AN fitting then an external oil feed restrictor (AF399-04 or AF399-03, available for purchase separately) must be installed in the turbo oil feed line at the engine side and turbo side of the line. Failure to use a suitable restrictor will void the warranty. Boosted turbochargers that feature water cooling ports must have these ports connected to the water cooling system in order to cool the turbocharger core.Failure to connect any and allof these ports will void all warranties.
