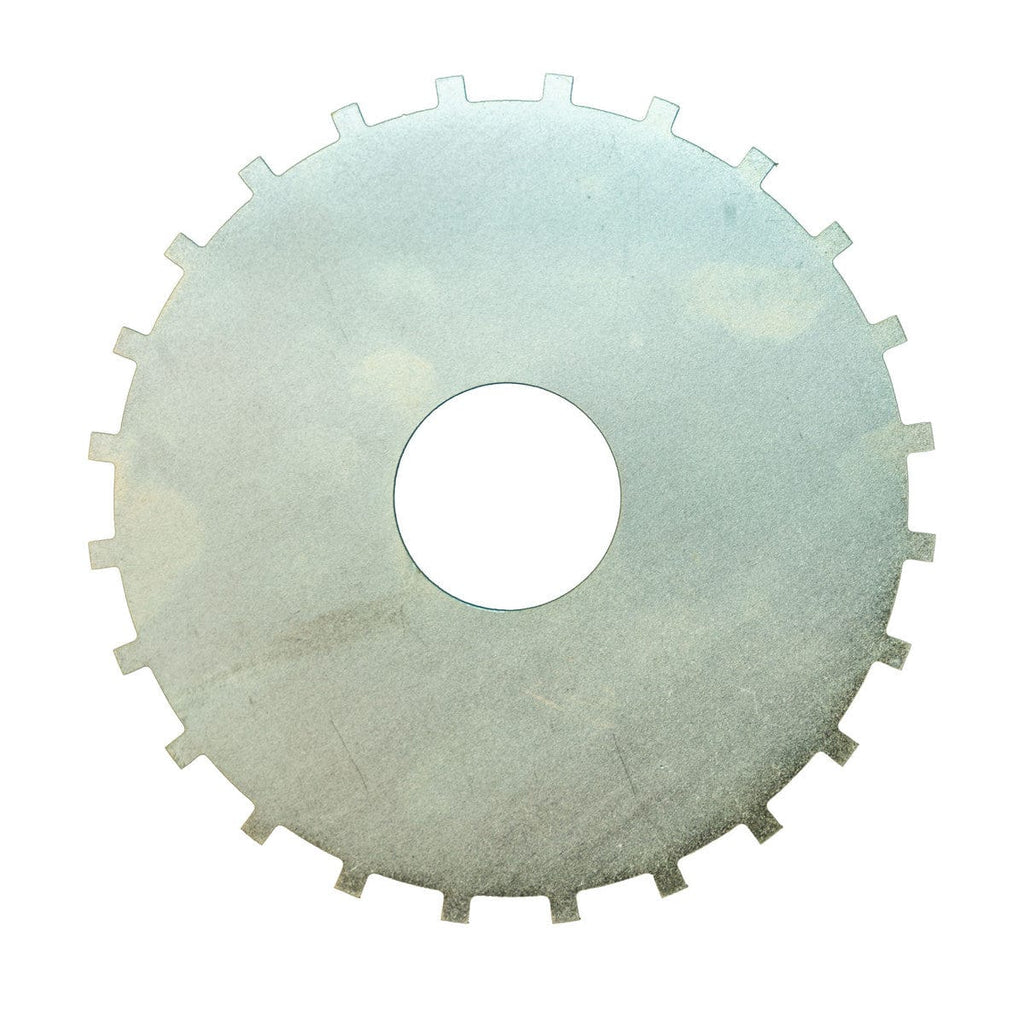

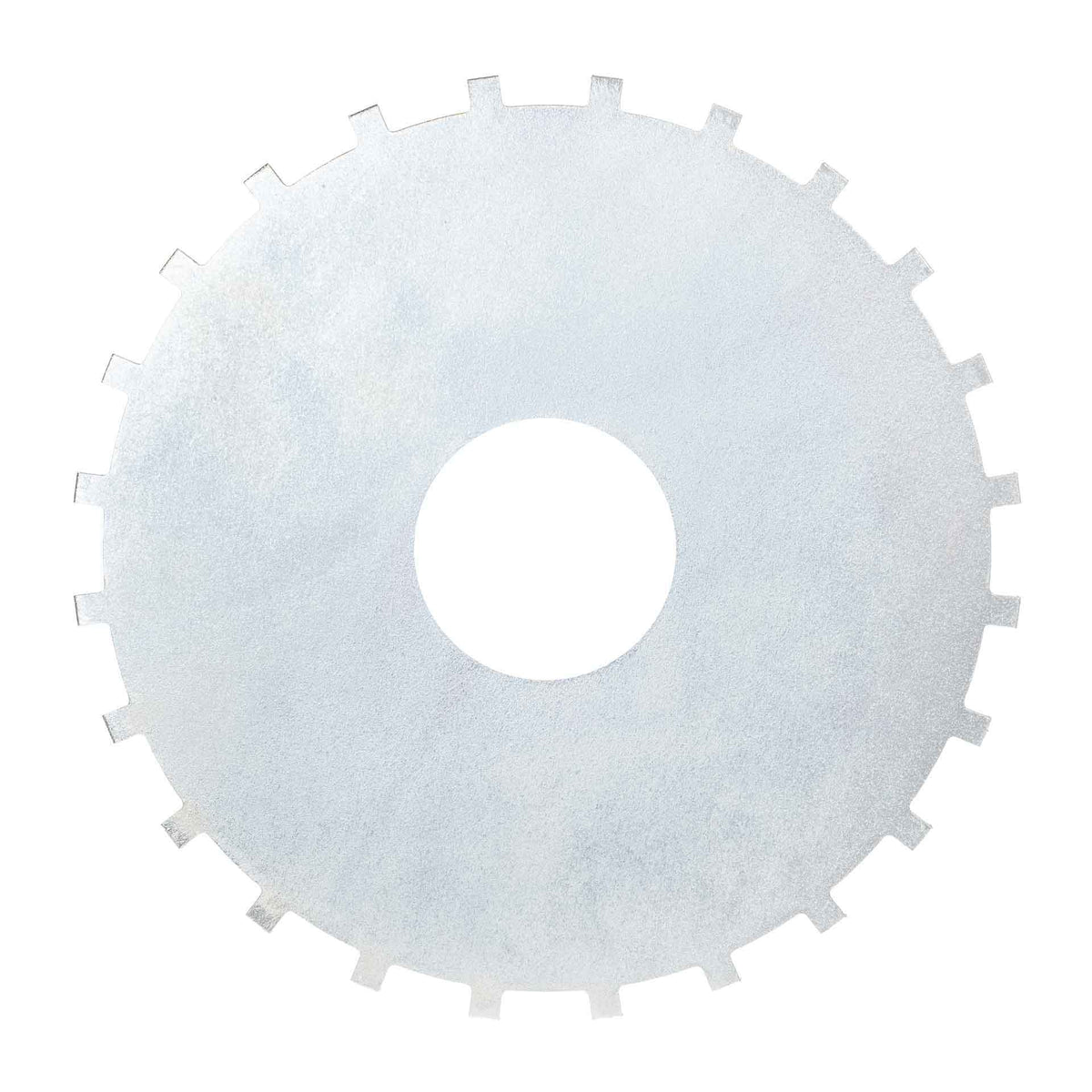

Link ECU Trigger Wheel TWS
Trigger Wheel 150 mm diameter, small
Brand: Link ECU
Part Number: 101-0103
Description:
The Link TWS Trigger Wheel provides an accurate crankshaft or camshaft position reference for Link ECUs and other aftermarket engine management systems. Precision laser cut from steel with a 24-tooth pattern and 150 mm diameter, it is ideal for custom engine builds, EFI conversions and ignition upgrades requiring a reliable engine position signal.
Suits
- All Link ECUs
- Other aftermarket ECUs
What's in the Box
- Trigger Wheel 24 tooth 150mm
Specifications
-
Highlights: The Link TWS Trigger Wheel has the following specifications:; 24-tooth trigger pattern.; 150 mm outside diameter.; 40 mm centre bore.; Precision laser-cut steel construction.; Can be machined to suit a wide range of applications.
-
Product Dimensions: 145mm(L)x145mm(W)x3mm(H); 5.71in(L)x5.71in(W)x0.12in(H)
-
Product Weight: 365 grams (12.88 ounces)
Notes
- Designed for custom installation and may require machining to suit your application. Install with a compatible Hall effect or VR trigger sensor. Correct trigger wheel alignment and sensor positioning are critical for accurate engine timing.
