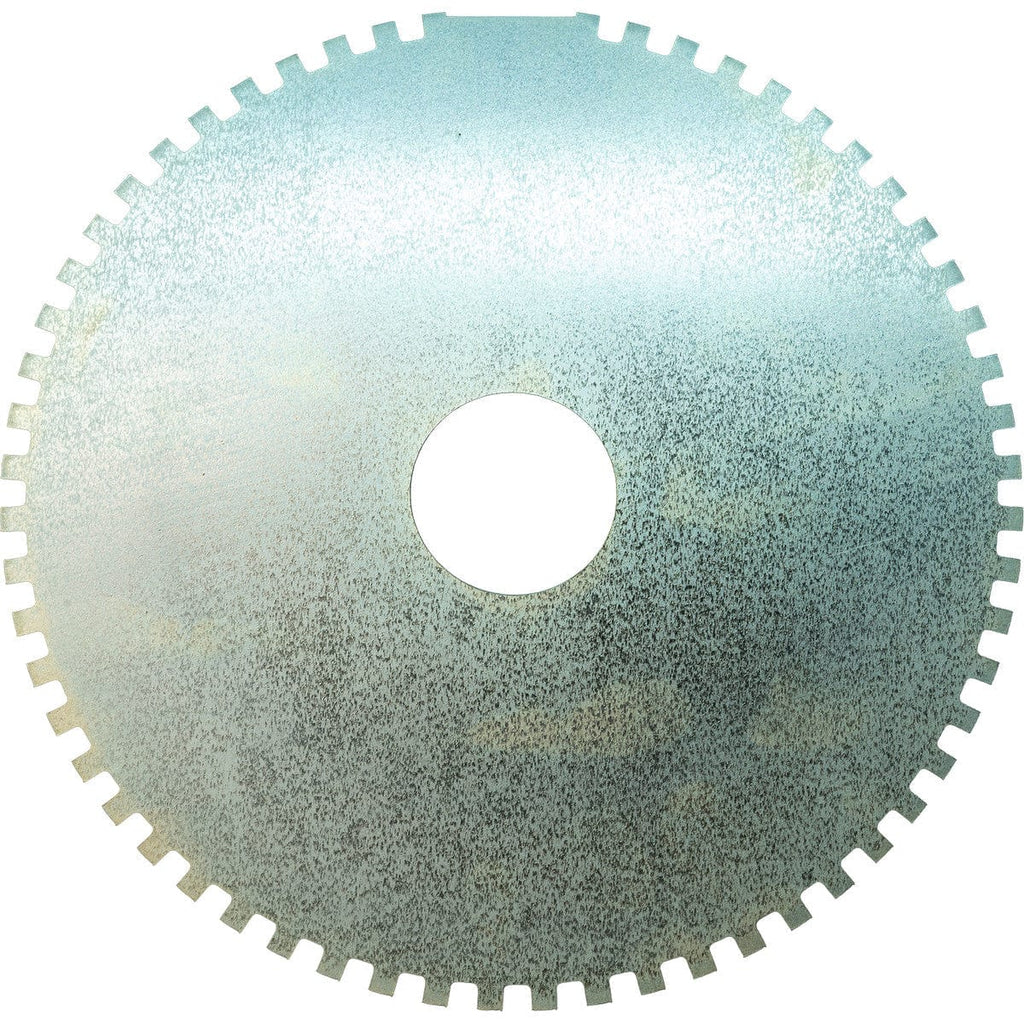

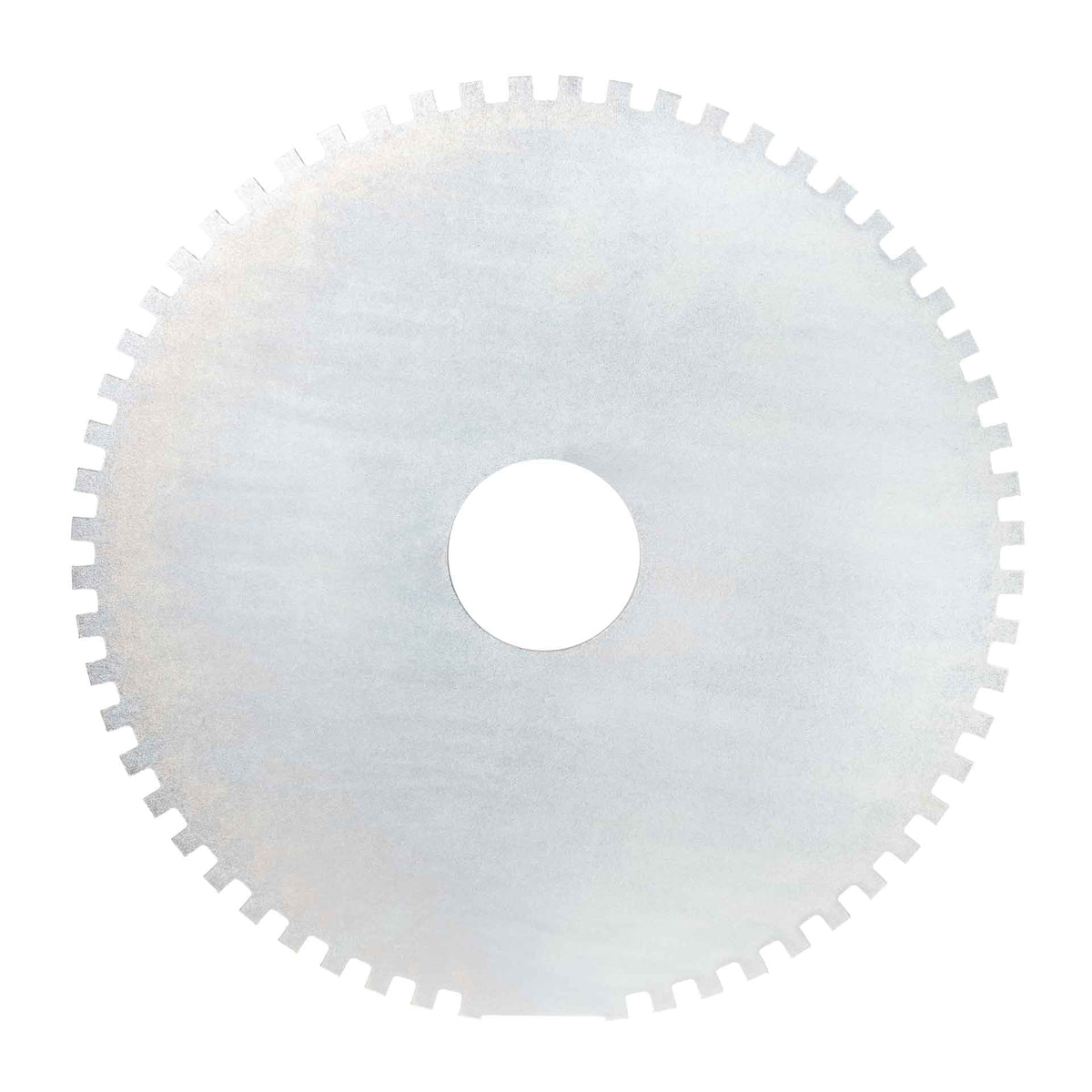

Link ECU Trigger Wheel TWL
Trigger Wheel 200 mm diameter, large
Brand: Link ECU
Part Number: 101-0101
Description:
The Link TWL Trigger Wheel provides an accurate crankshaft position reference for Link ECUs and other aftermarket engine management systems. Precision laser cut from steel with a 60-2 missing tooth pattern and 200 mm diameter, it is ideal for sequential fuel injection and direct ignition applications requiring precise engine position and speed measurement.
Suits
- All Link ECUs.
- Other aftermarket ECUs.
What's in the Box
- Trigger Wheel, 58/60tooth 200mm
Specifications
-
Highlights: The Link TWL Trigger Wheel has the following specifications:; 60-2 missing tooth trigger pattern.; 200 mm outside diameter.; 40 mm centre bore.; Precision laser-cut steel construction.; Can be machined to suit a wide range of applications.
-
Product Dimensions: 205mm(L)x205mm(W)x5mm(H); 8.07in(L)x8.07in(W)x0.20in(H)
-
Product Weight: 725 grams (25.57 ounces)
Notes
- Designed for custom installation and may require machining to suit your application. Install with a compatible Hall effect or VR trigger sensor. Correct trigger wheel alignment and sensor positioning are critical for accurate engine timing.
