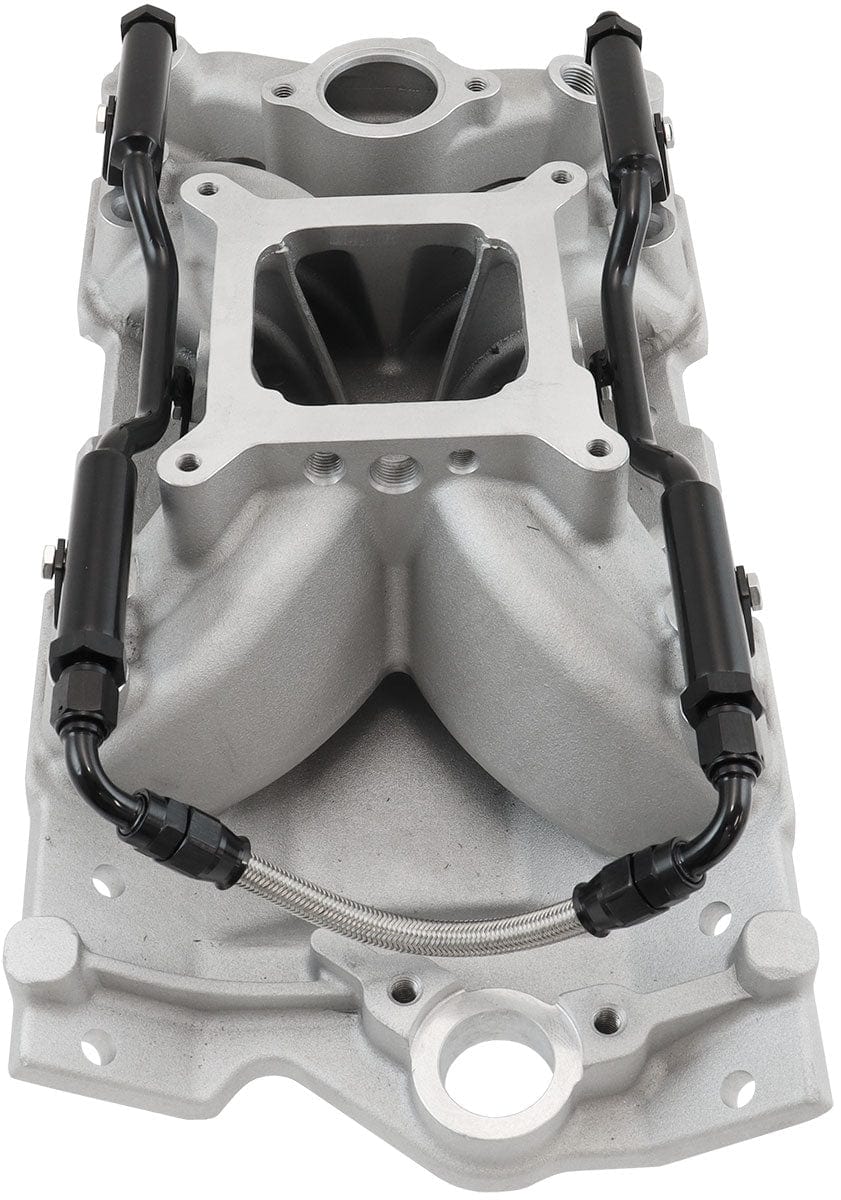

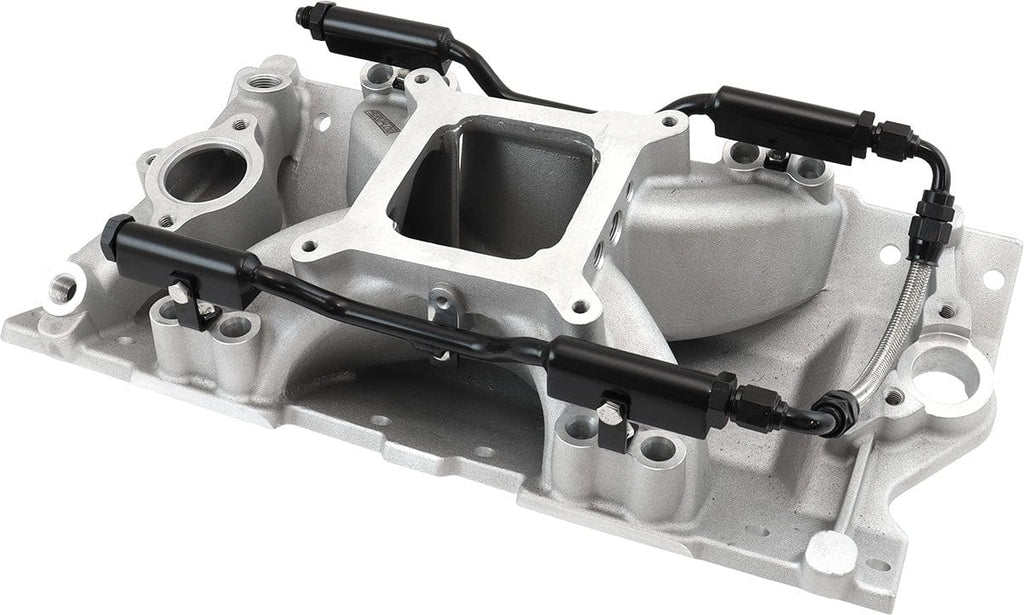

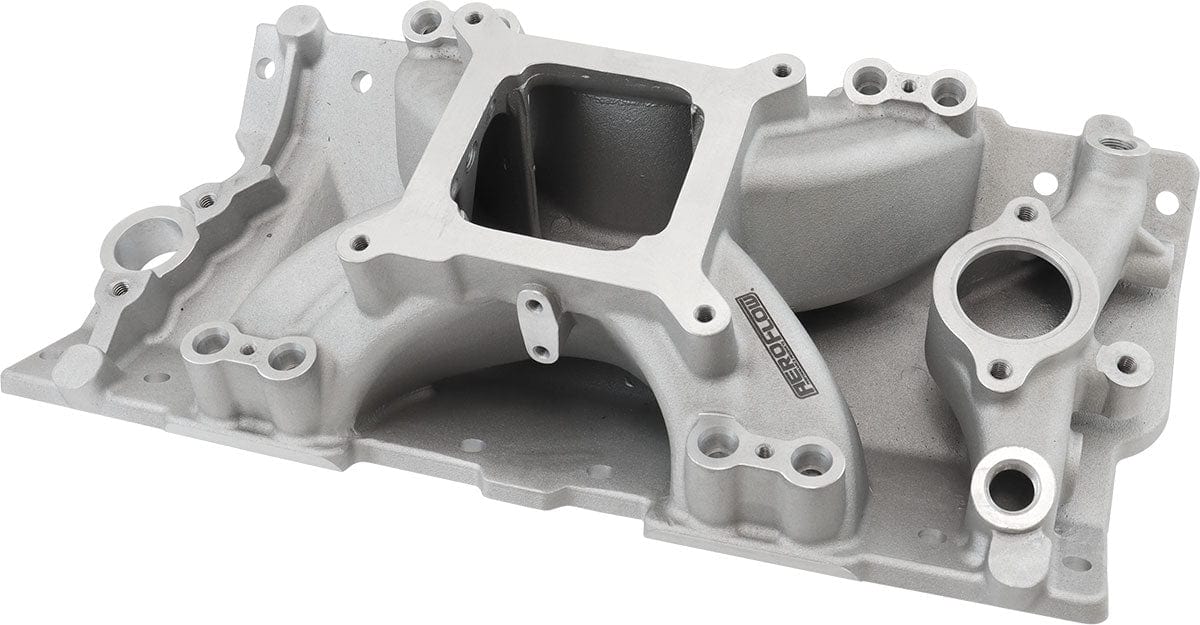

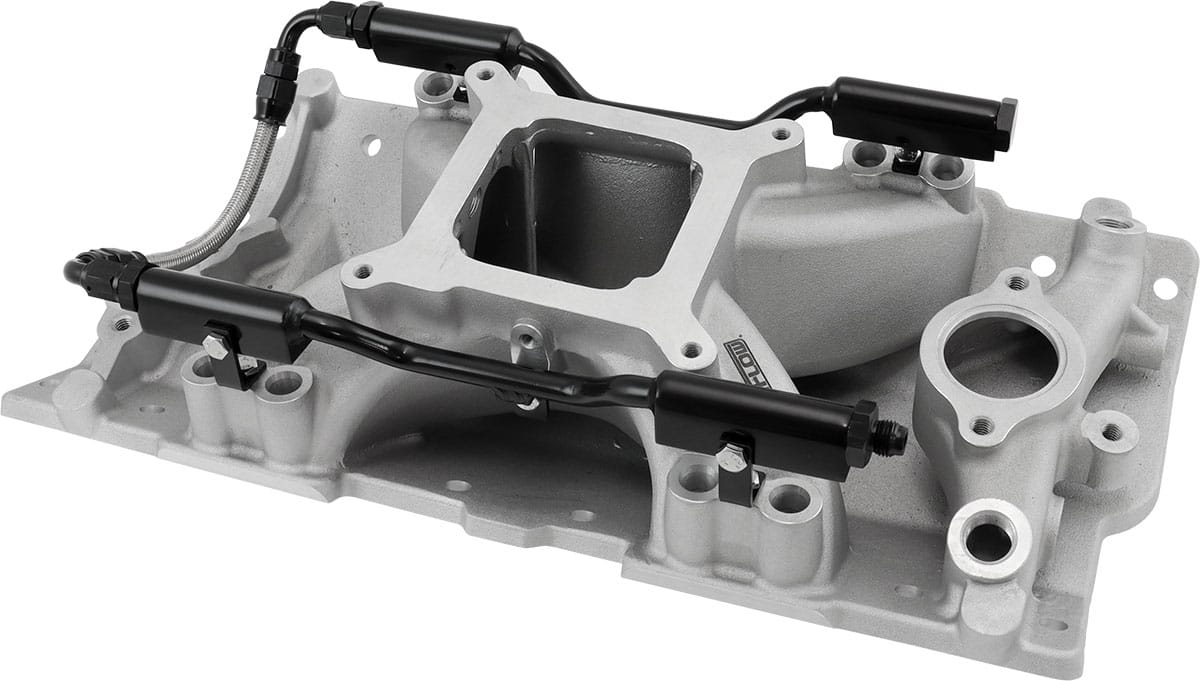

SB Chev EFI Air Gap Single Plane Intake Manifold, Natural Cast Finish2500 - 7500 RPM, Square Bore Carburettor Pad, Non-EGRBrand: AeroflowPart Number: AF6090-1000Description:
Get the maximum power from your engine with this Air Gap Small Block Chevy EFI cast intake manifold. This single-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket 4150 square-bore throttle bodies designed for EFI applications.

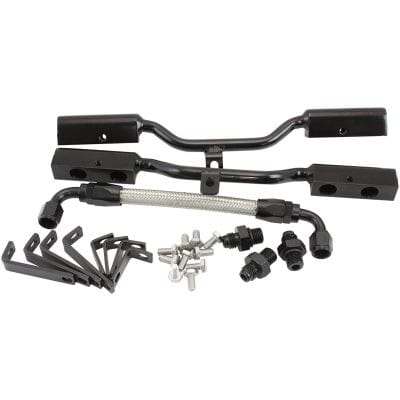

The fuel injector bores have back-cut exits in the intake runners for better fuel atomization. The fuel rails, brackets and mounting hardware are included with the manifold for easy installation with the injectors that you choose to use for your combination (fuel injector sold separately). Fuel rail is designed for maximum throttle lever clearance and has two different brackets to allow either a full length or short length 14mm fuel injector.
Specifically designed for 262-400 cubic inch small-block Chevy engines operating in the 2500 to 7500 rpm range. In most cases, these manifolds accept factory OE water necks, air conditioning, alternator and H.E.I. ignition systems.
- Fits Small Block Chevy 262-400 Cubic Inch Engines.
- Single Plane Configuration.
- EFI Applications ONLY.
- Suits 14mm Full Length Injectors (60.65mm) or 14mm Short Length injectors (33.60mm).
- RPM operating range - 2500 to 7500.
- Natural Cast Finish.
