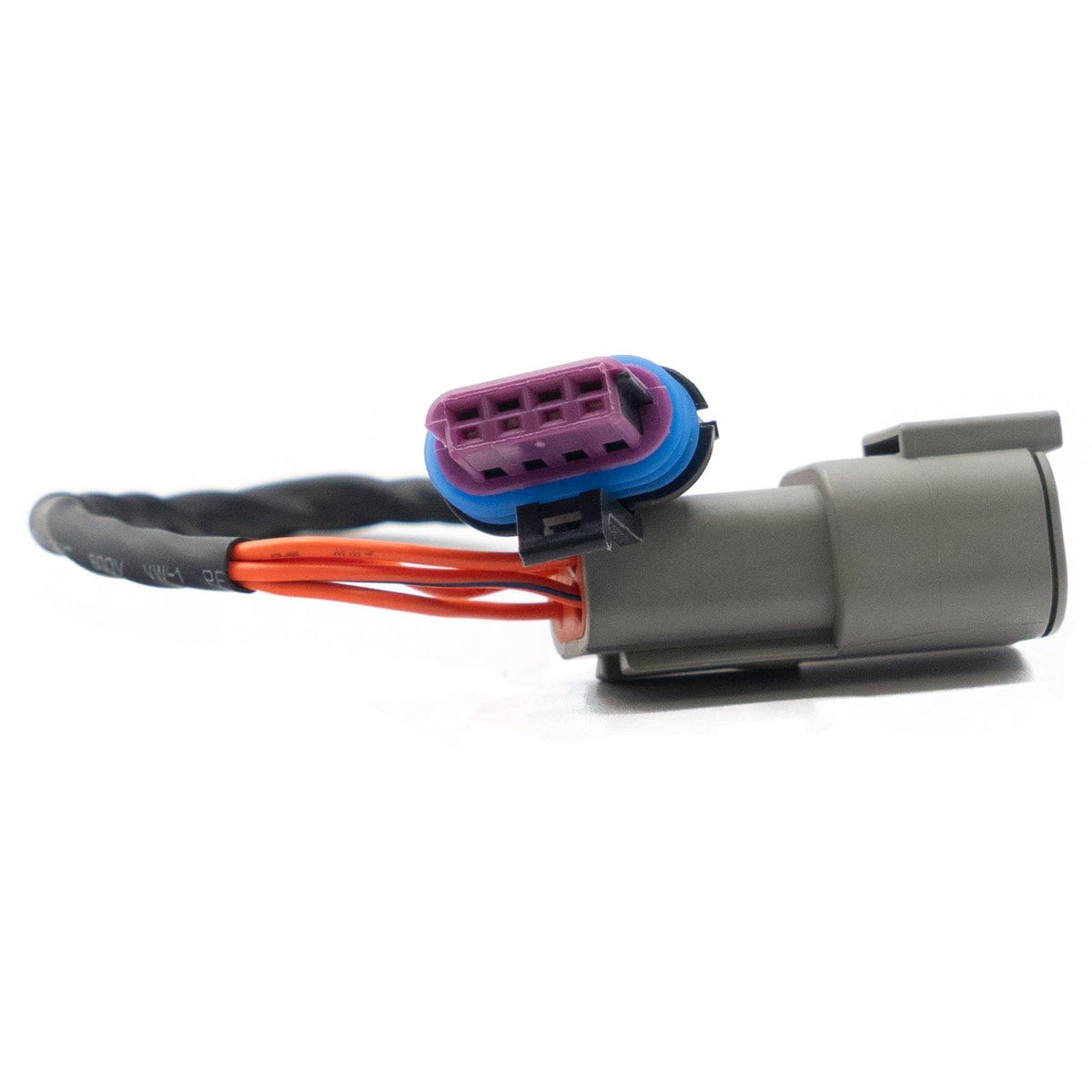

Link ECU LS Stepper Adapter Harness
Brand: Link ECU
Part Number: 101-0301
Description:
The Link LS Stepper Adapter Harness is a plug-and-play adapter designed to connect a GM LS Idle Air Control (IAC) stepper motor to the Link Terminated LS Engine Harness. Required for cable throttle (drive-by-cable) LS applications, it connects directly to the pre-wired stepper connector on the engine harness, simplifying installation and eliminating the need for additional wiring.
Suits
- GM Gen 3 LS1 and LS6 engines.
- GM Gen 4 LS2, LS3 and LS7 engines*.
- Link Terminated LS Engine Harness (PN 101-0300).
- Cable throttle (drive-by-cable) LS throttle bodies with a factory GM IAC stepper motor.
- *Gen 4 engines may require additional harness adapters depending on engine configuration. Refer to the LS Harness Manual.
What's in the Box
- LS Stepper Adapter Harness
Specifications
-
Highlights: The Link LS Stepper Adapter Harness has the following specifications:; Plug-and-play installation.; Supports factory GM LS IAC stepper motors.; Connects to the pre-wired stepper adapter connector on the Link LS Engine Harness (PN 101-0300).; Interfaces with Aux 5, Aux 6, Aux 7 and Aux 8.; Designed for cable throttle (drive-by-cable) LS applications.; Manufactured in the USA.
-
Product Dimensions: 250mm(L)x25mm(W)x20mm(H); 9.84in(L)x0.98in(W)x0.79in(H)
-
Product Weight: 20 grams (0.71 ounces)
Notes
- Required when using the Link Terminated LS Engine Harness with a cable throttle LS engine.
- Not required for drive-by-wire applications. Use the LS DBW Adapter Loom instead (101-0304).
- Designed exclusively for use with the Link Terminated LS Engine Harness.
