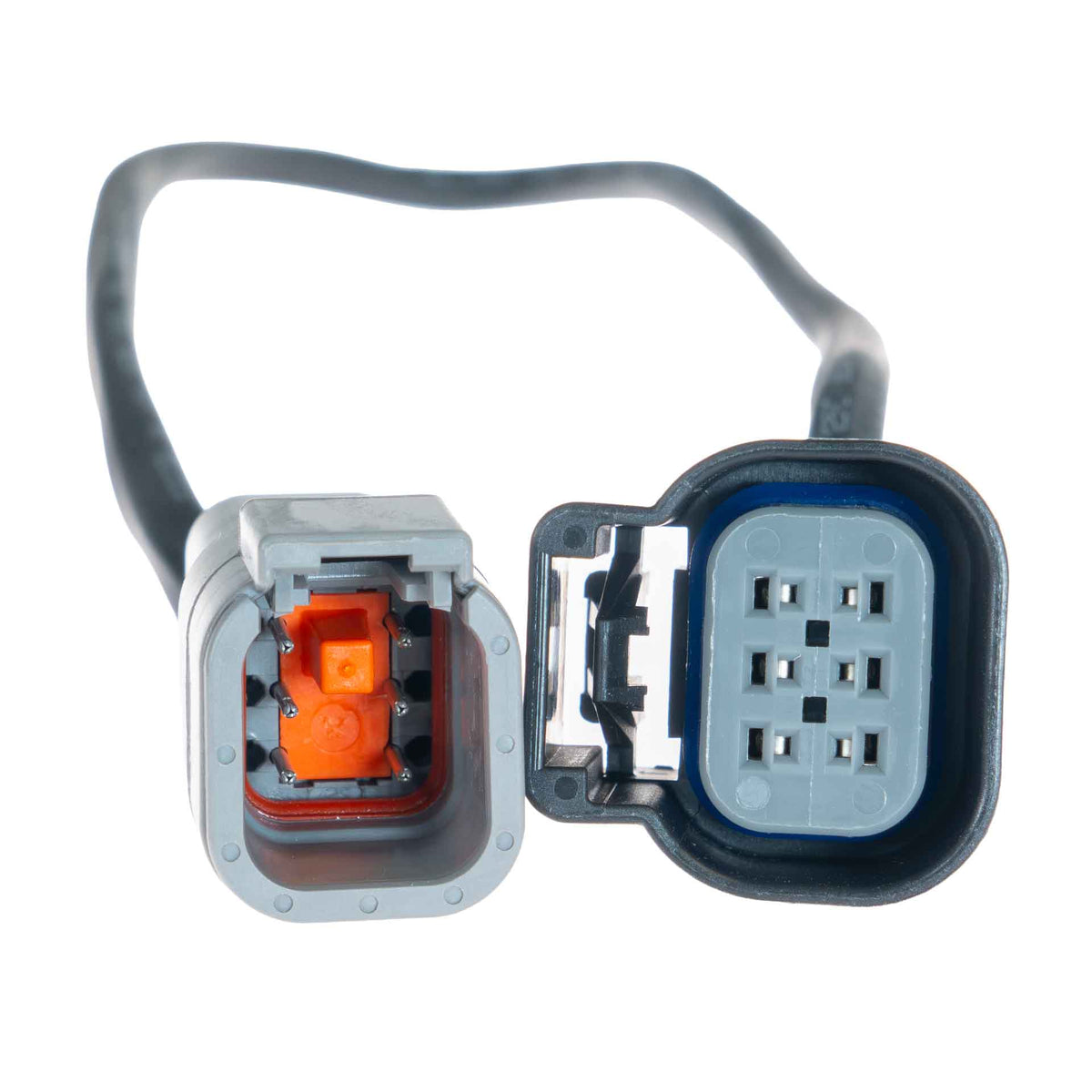

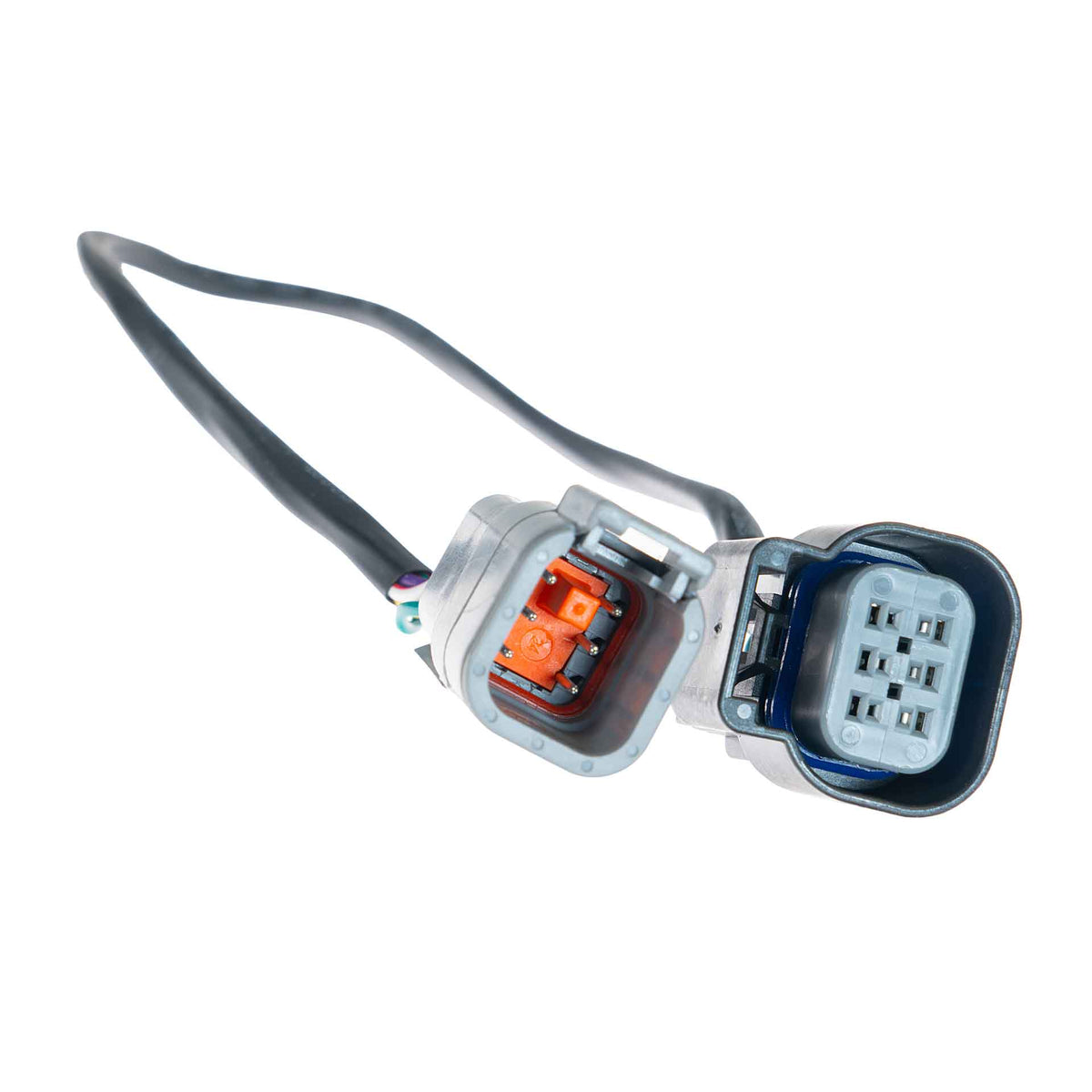

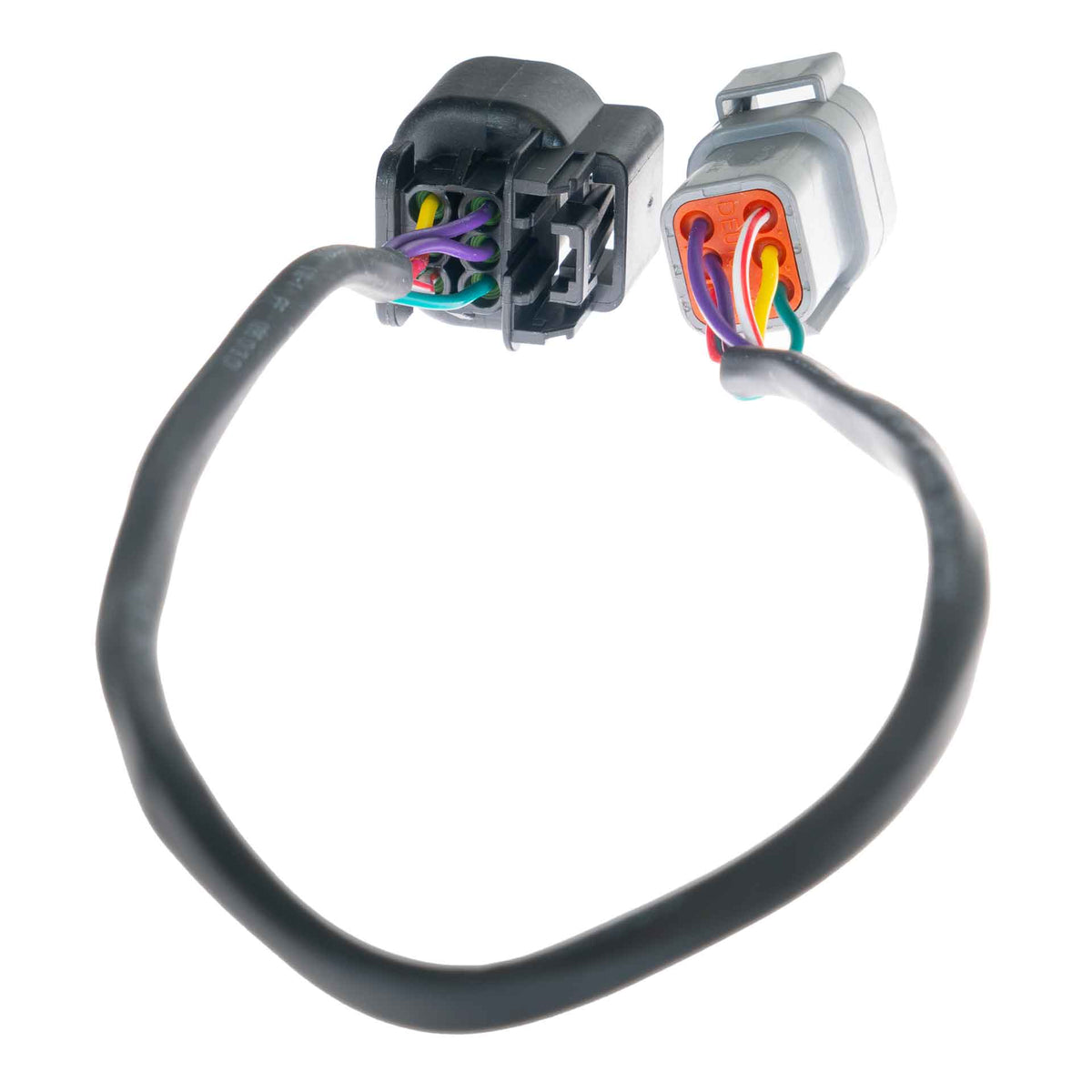

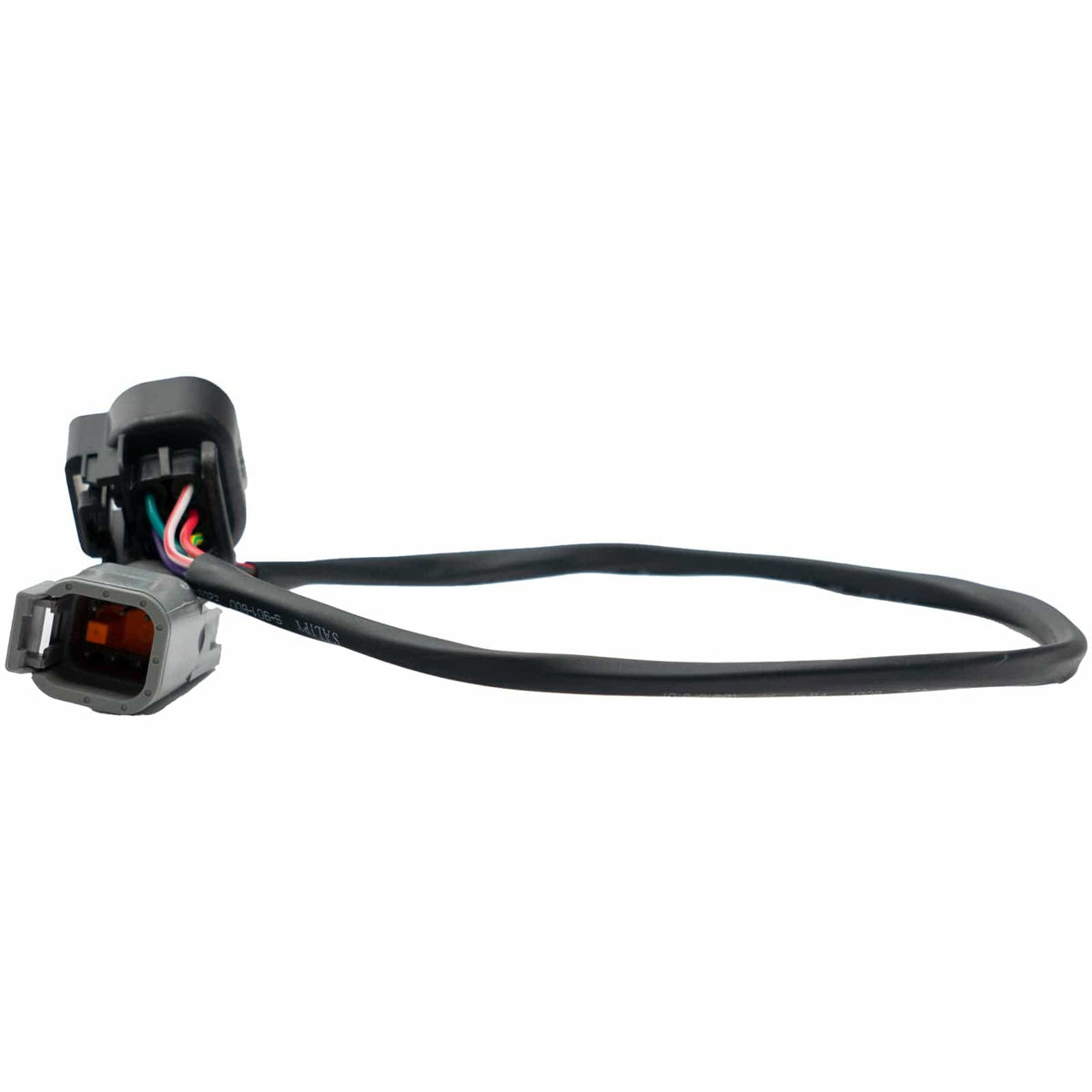

Link ECU LS DBW Adapter Loom
Brand: Link ECU
Part Number: 101-0304
Description:
The Link LS Drive-by-Wire (DBW) Adapter Loom is a plug-and-play adapter designed to connect a factory Gen 4 GM LS Drive-by-Wire throttle body to the Link Terminated LS Engine Harness. It eliminates the need for custom wiring, providing a simple and reliable solution for Drive-by-Wire LS applications.
Suits
- GM Gen 4 LS2, LS3 and LS7 engines.
- Factory GM Gen 4 Drive-by-Wire throttle bodies.
- Link Terminated LS Engine Harness (PN 101-0300).
- Link ECUs with Drive-by-Wire support.
Specifications
-
Highlights: The Link LS Drive-by-Wire Adapter has the following specifications:; Plug-and-play adapter loom.; Connects the Link LS Engine Harness to a factory Gen 4 GM Drive-by-Wire throttle body.; No wiring modifications required.; Utilises the pre-wired Drive-by-Wire connector on the Link LS Engine Harness.; Interfaces with Aux 9, Aux 10, AN Volt 5, AN Volt 6, 5V reference and sensor ground.; Manufactured in the USA.
Notes
- Designed exclusively for use with the Link Terminated LS Engine Harness.
- Intended for Gen 4 GM Drive-by-Wire throttle bodies only.
- Requires a Link ECU with Drive-by-Wire control capability.
- Not required for cable throttle (DBC) applications.
- Use the Link LS Stepper Adapter Harness (PN 101-0301) when using a factory GM idle air control (IAC) stepper motor.
