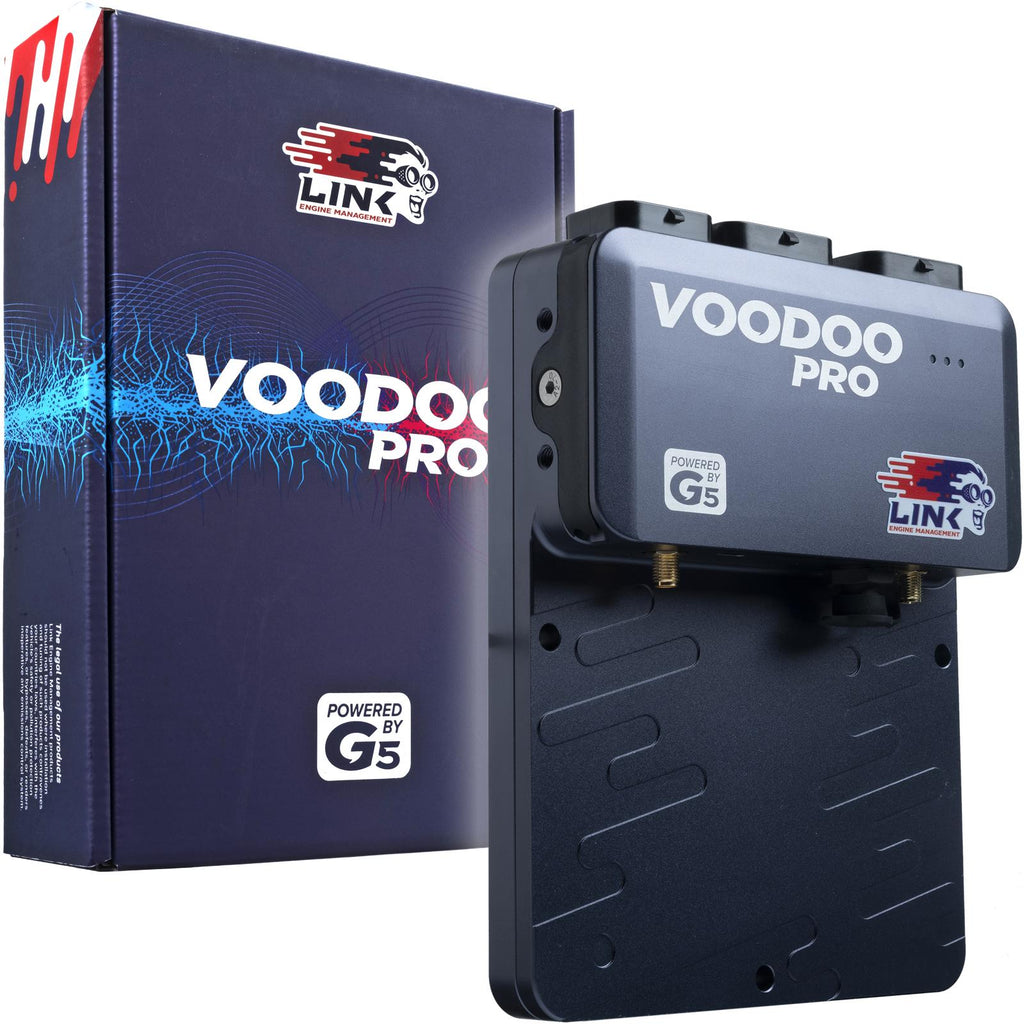

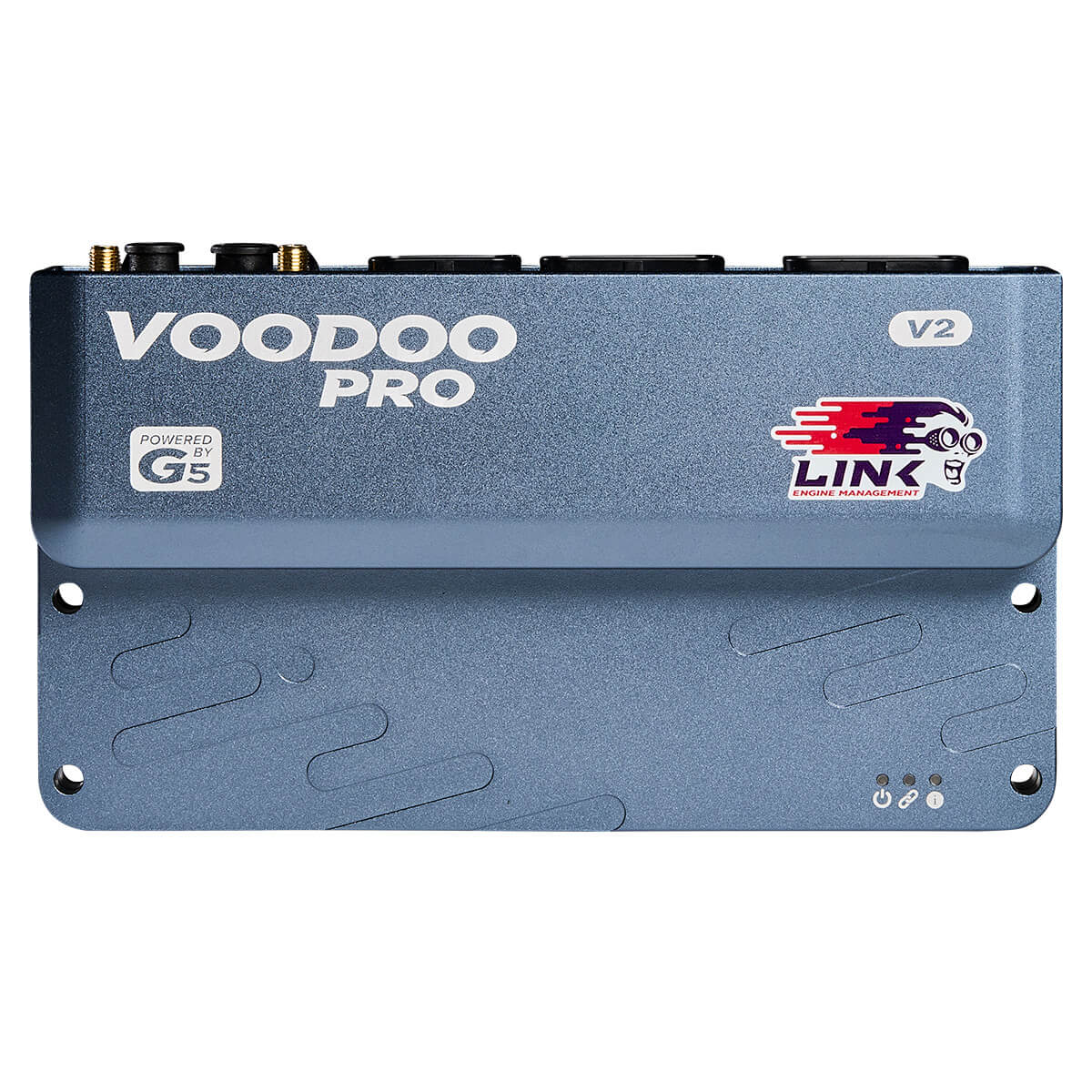

Link ECU G5 Voodoo Pro
Brand: Link ECU
Part Number: 153-5000
Description:
Link's flagship ECU, the G5 Voodoo Pro, is built on Link's most advanced, most powerful and most flexible ECU platform ever, delivering next-generation engine management for up to 12 cylinder sequential or 8 cylinder staged sequential builds.
The G5 Voodoo range puts real magic in your hands and opens a new world of possibilities with the ability to control port plus direct injection, highly customisable IO, advanced communications and next-generation features.
The G5 Voodoo Pro includes increased I/O and advanced functionality beyond the Neo range, with dual onboard Lambda control, additional injector and ignition drives, more ADIO pins and analogue inputs, supporting high cylinder counts.
Advanced communications include GPS, Wi-Fi, Ethernet, dual CAN Bus and USB-C tuning, alongside 1GB of onboard data logging for high-speed data capture and analysis.
The G5 Voodoo Pro also features automatic transmission control and dual H-bridges for E-Throttle and low power E-Wastegate control.
The G5 Voodoo Pro is the ideal solution for modern high-performance street and motorsport builds requiring maximum I/O, dual Lambda control and the full capability of Link's next-generation of engine management technology.
Features
Link's flagship G5 Voodoo Pro delivers next-generation features including:
ECU Features
- Global Positioning System (GPS)
- Dual E-throttle Control
- 8 Custom Math Blocks with 30 characters
- Flex Fuel
- Trigger Oscilloscope
- 3 Axis Accelerometer
- 1k or 10k Selectable Temp Input Pullups
- Flexible engine protection limiters
- CAN Keypad Control
- VVT Control
- Open Loop Boost Control
- Closed Loop Boost Control
- Dual Onboard Digital Wideband Lambda Control
- Dual Closed Loop Lambda
- Direct Automatic Transmission Control
- 1 Gigabyte of Internal Data Logging
Motorsport Features
- Nitrous Control
- Launch Control
- Anti-lag
- Cruise Control
- Traction Control
- Race Timer and Power Management
- Gear Shift Control
- Paddle Shift Control
Suits
- 12 cylinders sequential port or direct injection and direct spark, or
- 8 cylinders with direct/port staged injection, and direct spark
What's in the Box
- G5 Voodoo Pro ECU

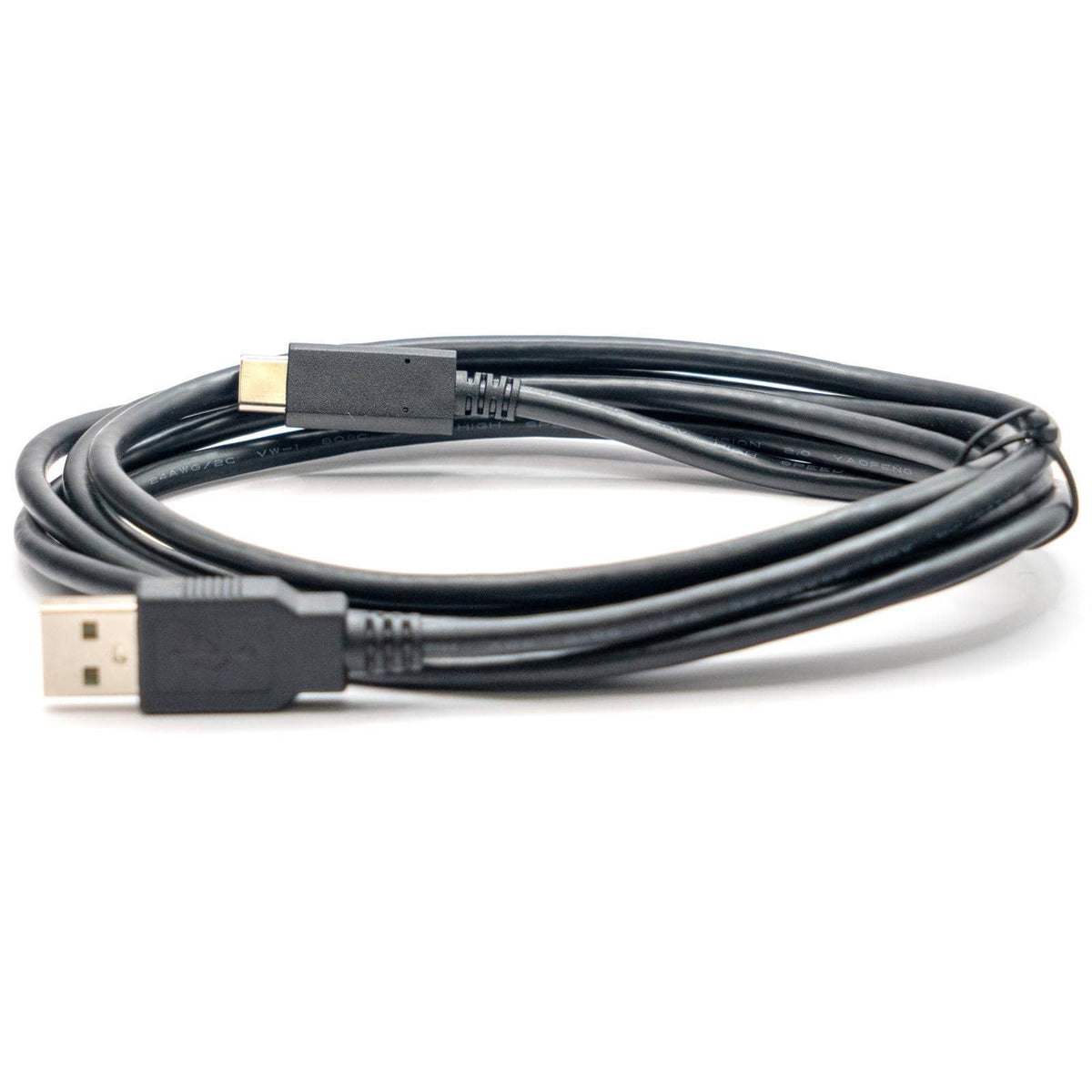

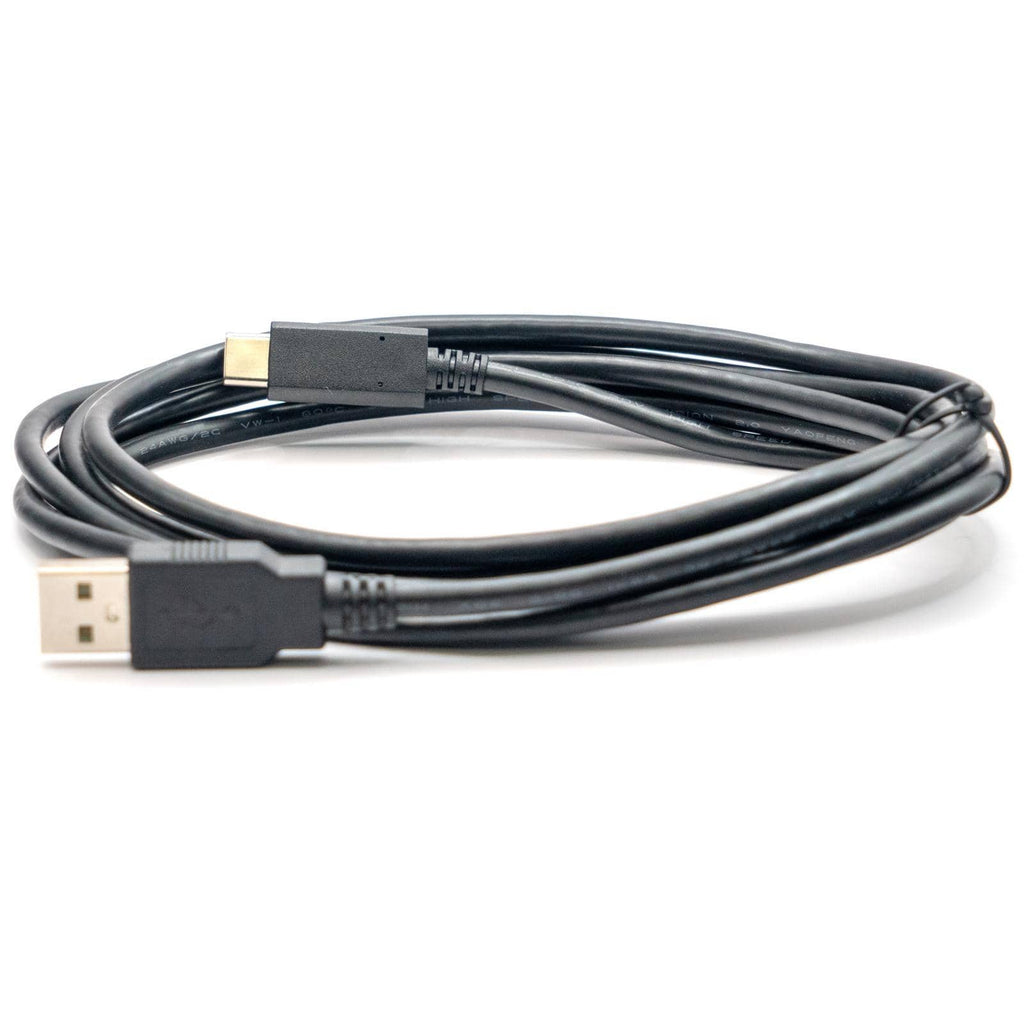

- USB-C Connection Cable

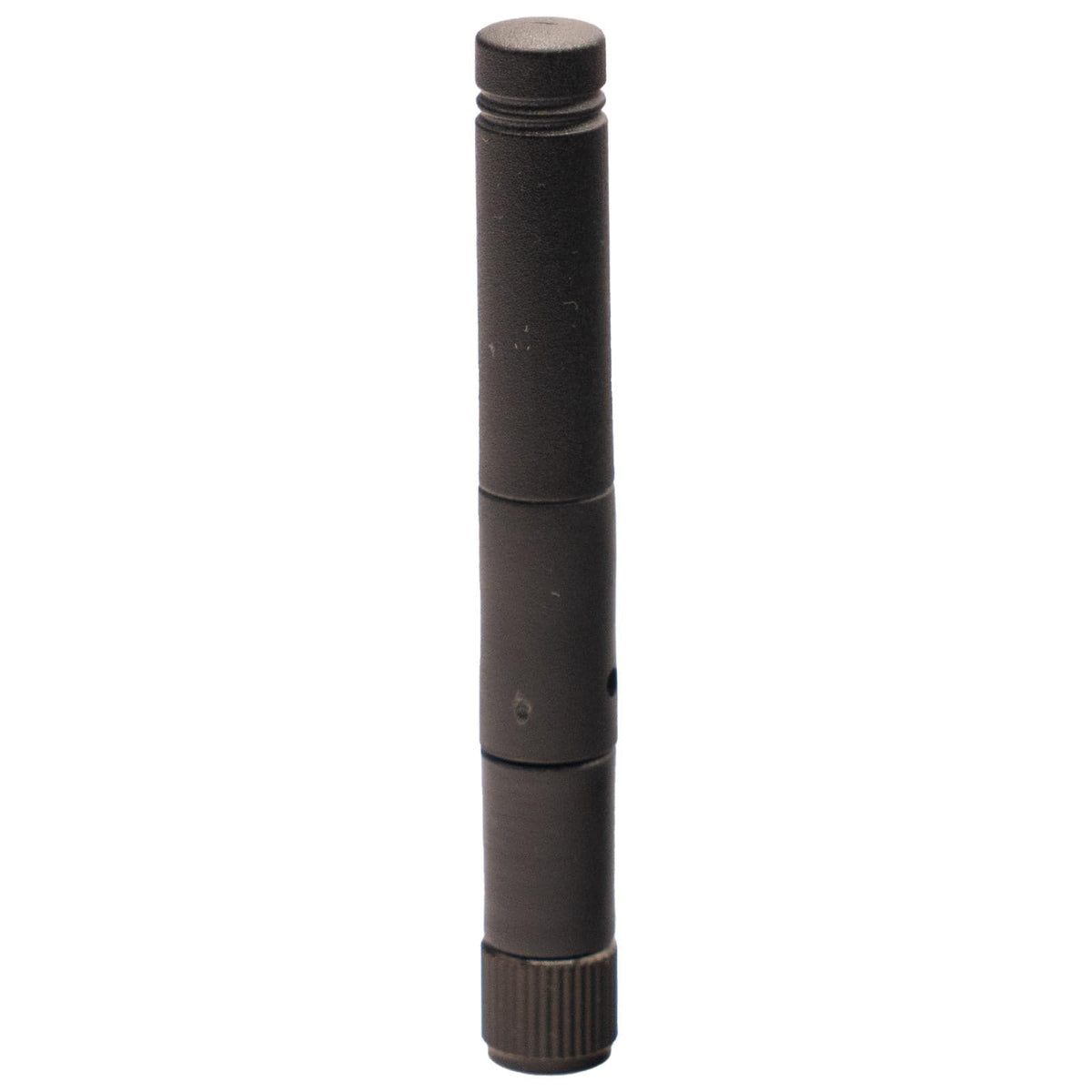

- Wi-Fi Antenna

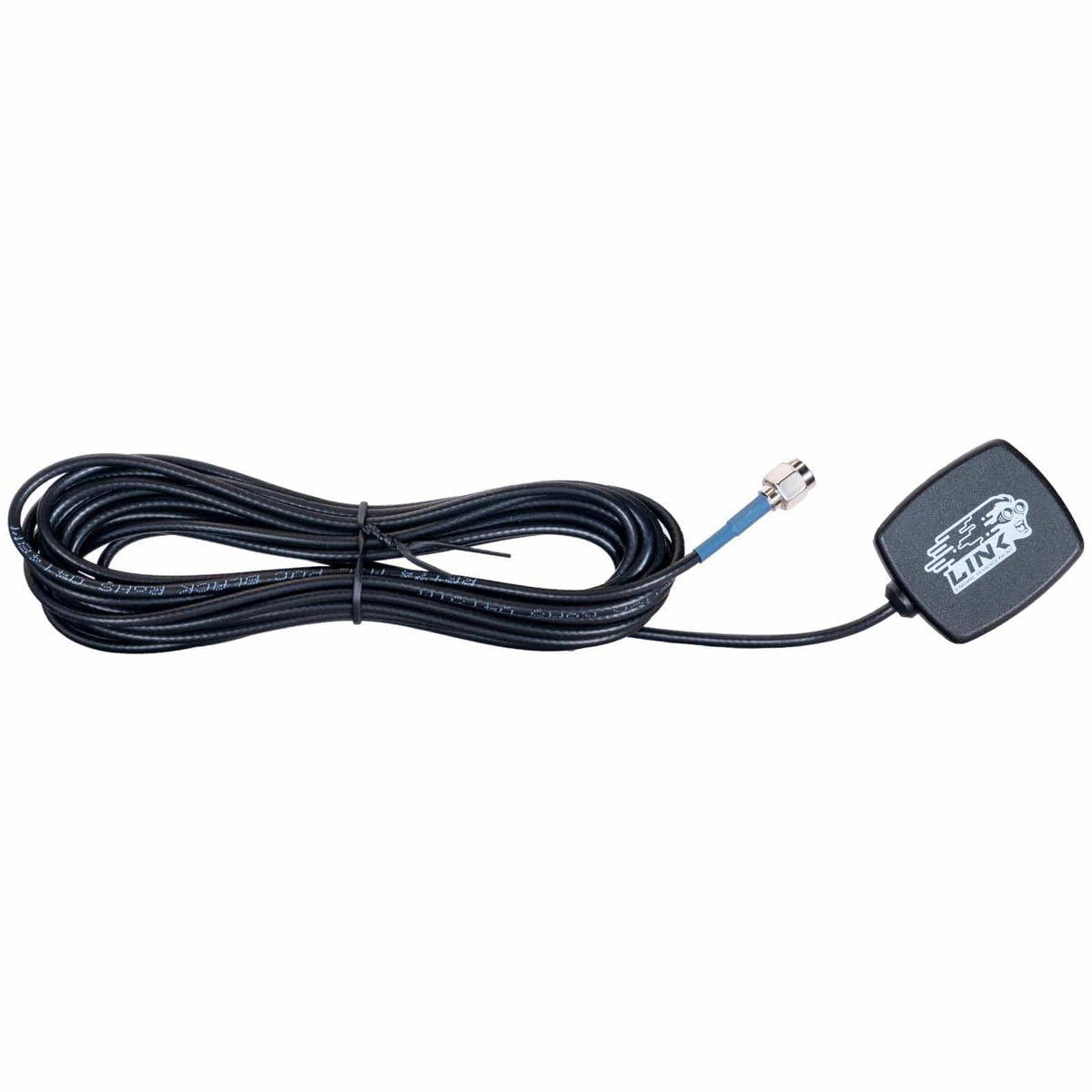

- 4m GPS Antenna (Magnetic or Adhesive Mount)
- USB-C and SMA Dust Covers
- Quick Start Guide (A5)
- Installer I/O table (A3)
- Mounting Screws
- Link stickers
Specifications
-
Outputs: 16‡ Injection Drives; Injection Drives can run Direct Injection via a driver box; 12‡ Ignition Drives; 6 Auxiliary Outputs; +5V Sensor power supply; Unused Injection and Ignition drives can be used as an Auxiliary Outputs; ‡ G5 Voodoo Pro has 12 injection, 8 ignition, plus 4 multipurpose (inj, ign, aux) drives (24 total)
-
Inputs: 10 Digital Inputs; 4 Temperature Inputs; 14 Analogue Inputs; 2 Trigger Inputs; 2 Knock Inputs; Unused Temperature and Analogue Inputs can be used as Digital Inputs
-
Inputs / Outputs: 8 ADIO Dual Purpose
-
Communications: 2 CAN Bus Channels; Wi-Fi; USB-C Tuning Connection; Ethernet; Power Over USB
-
Data Logging: 1GB Onboard Logging Memory; 100kHz Maximum Total Logging Rate; 250 Logging Channels
-
Product Dimensions: 109mm(L) x 193.5mm(W) x 45mm(H); 4.29in(L) x 7.62in(W) x 1.77in(H)
-
Product Weight: 768 grams (27.09 ounces)
-

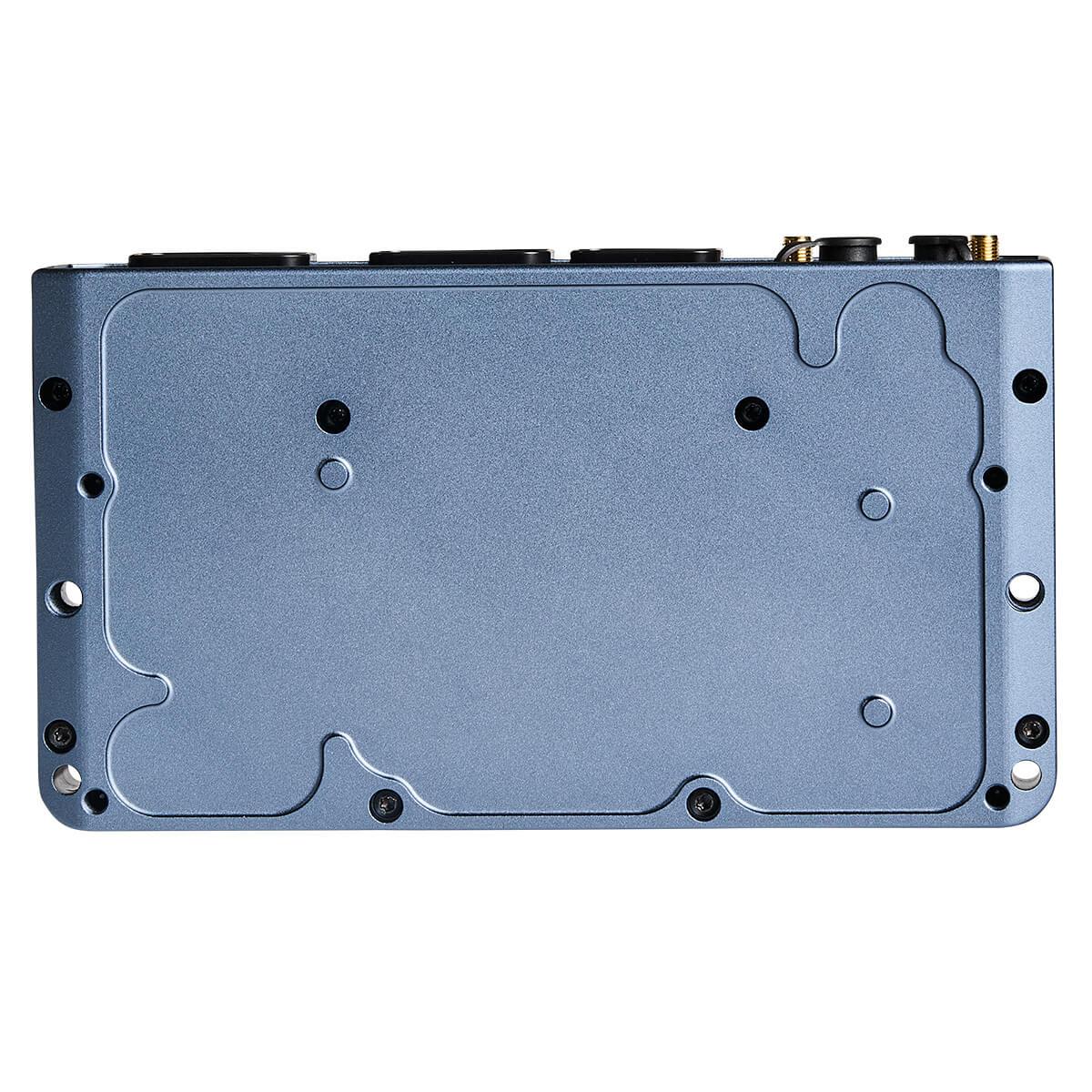

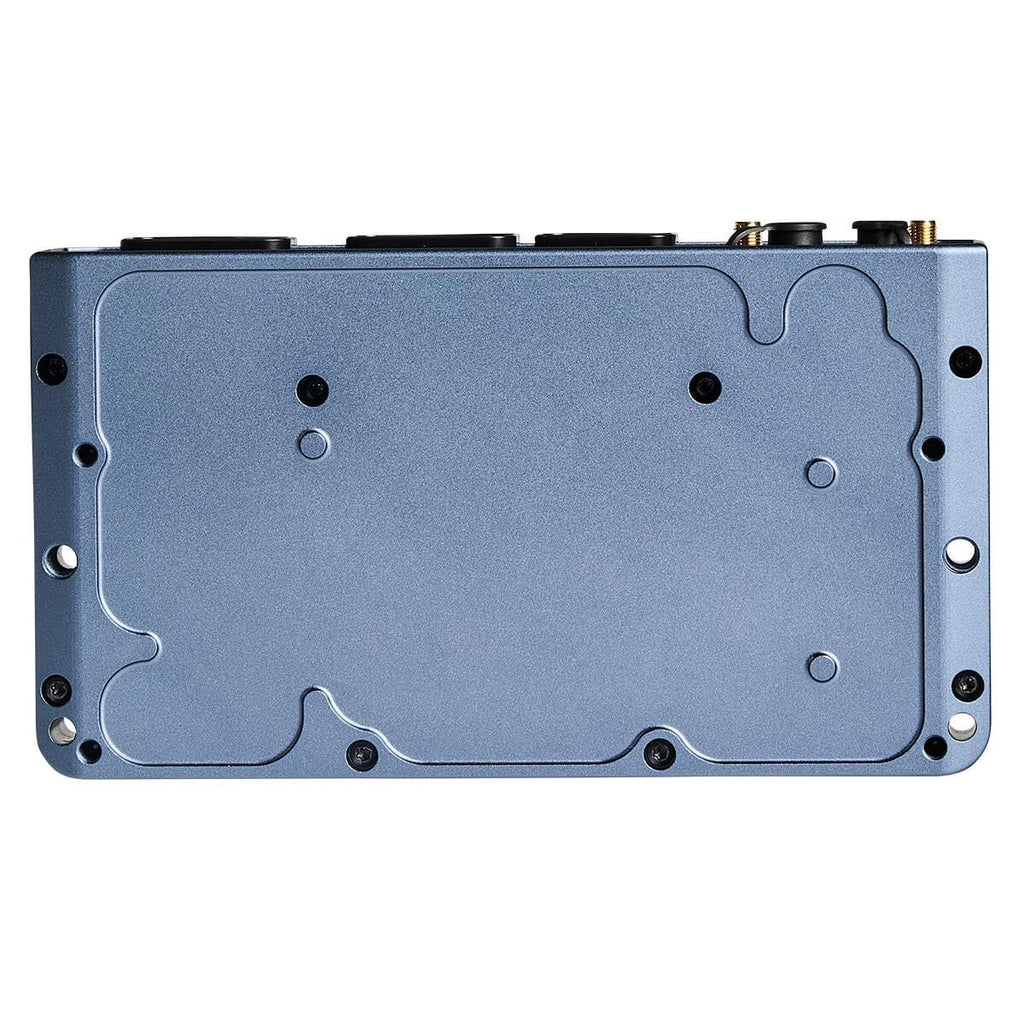

Material: 6061-T6 billet CNC sealed enclosure
-
Electrical: Operating Voltage Range: 6-30V; Maximum Input Voltage: 30V; Maximum Continuous Current Draw: 17A
-

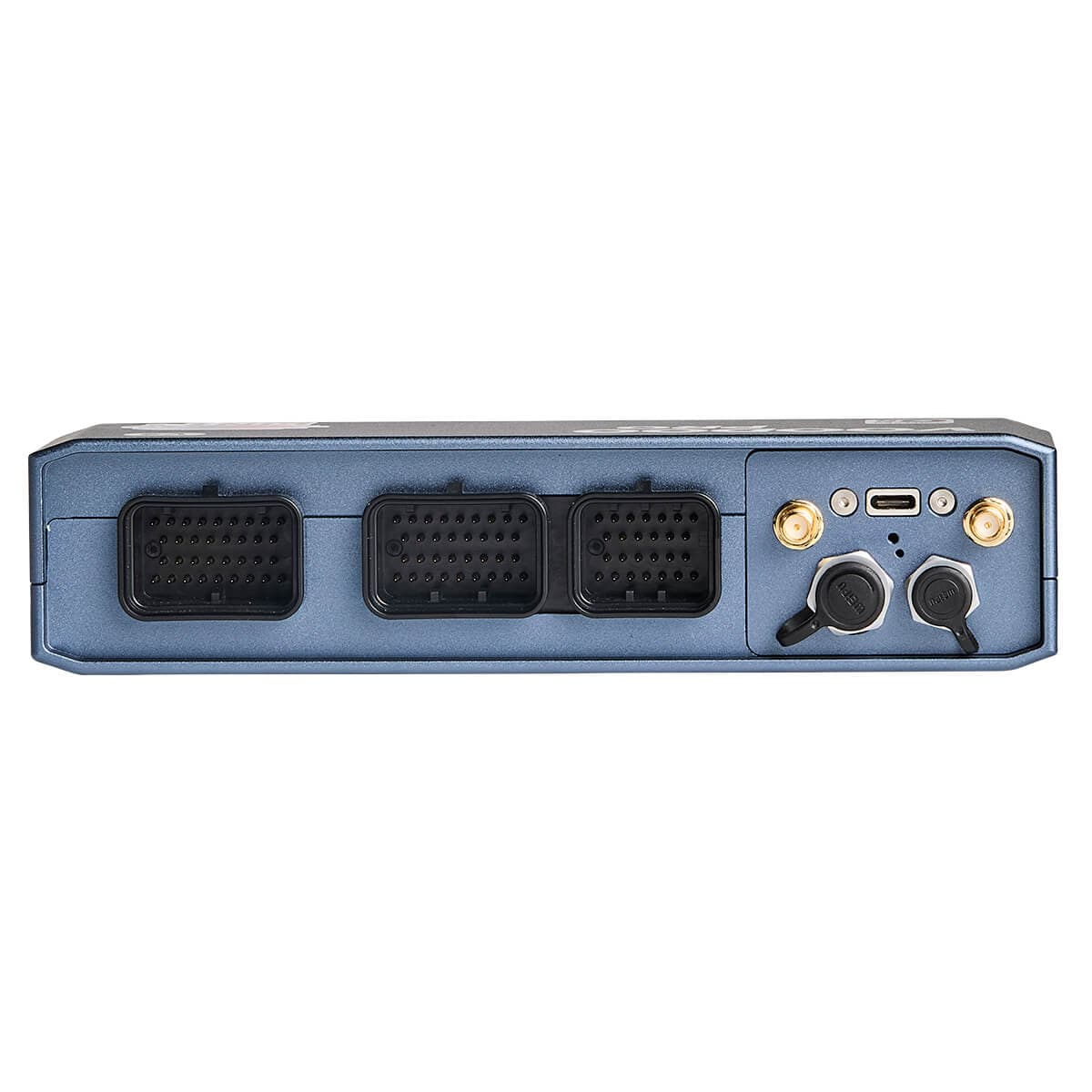

Connector: Superseal 4 Row 34 Position x2; Part number 4-1437290-0; Part number 4-1437290-1; Superseal 4 Row 26 Position; Part number 1473416-1
