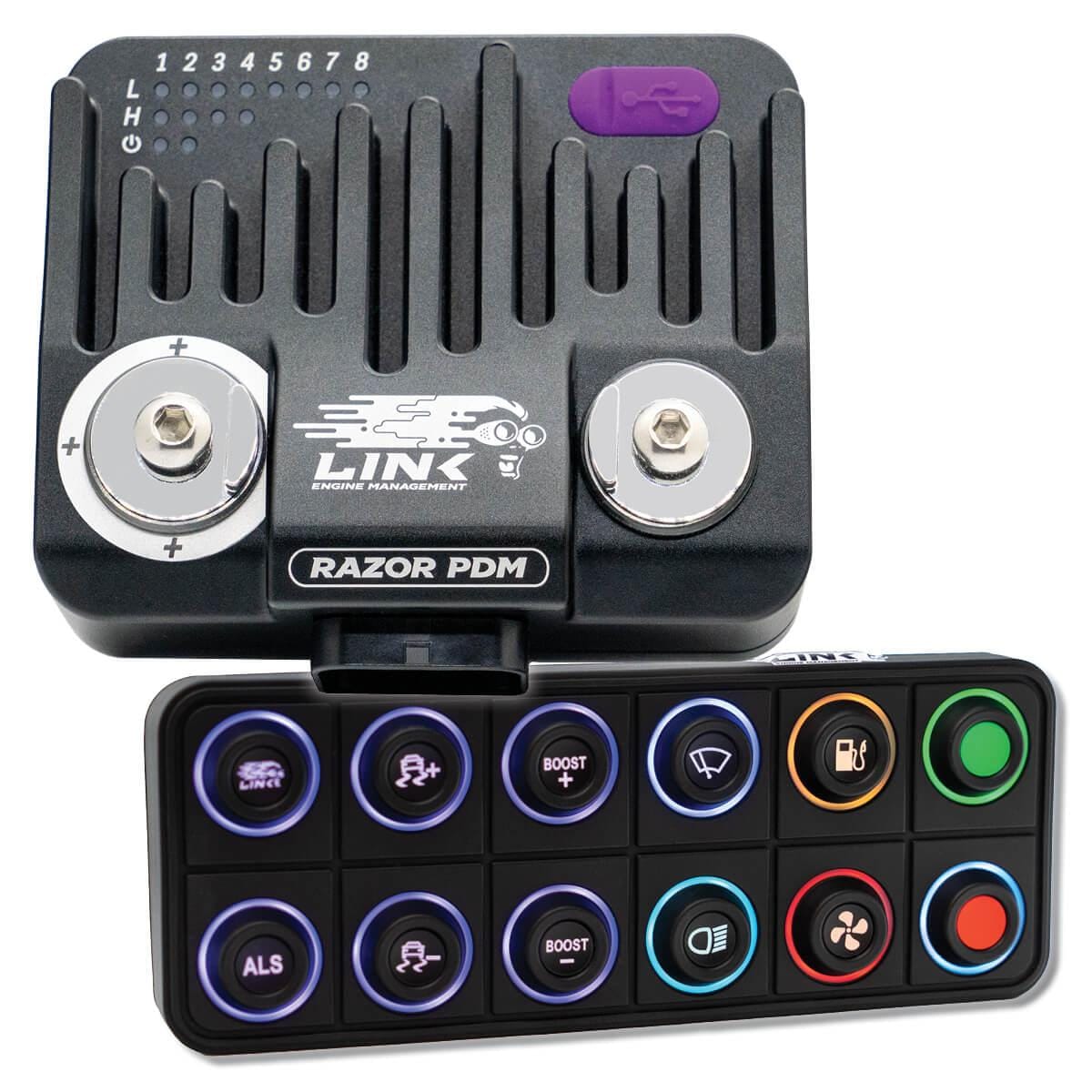

Link ECU Razor PDM Bundle - Razor PDM + 12 Button CAN Keypad
Brand: Link ECU
Part Number: 135-9500B
Description:
Bundle - Includes 1 x Razor PDM and 1 x 12 Button CAN Keypad.
Link's highly anticipated PDM, the Razor PDM, is an intelligent Power Distribution Module that replaces traditional fuses and relays, putting you in complete control of your setup.
The Razor PDM is a programmable device that uses logic for the smart control of any outputs you have connected, meaning events and commands can be triggered when your vehicle hits specific parameters.
The device will allow you to manage things such as fuel pumps, radiator fans, electronic throttles, servos, lights and more, as well as monitoring analog or digital sensor signals.
You can gain full control by using an Analog Switch Panel, CAN Keypad or ECU to switch output channels, as well as increasing reliability and protecting your critical components from damage.
With superior thermal performance, the Razor PDM has been designed with vehicle protection in mind, while allowing for a more efficient, cleaner, and reliable build.
It may be small and compact, but the Razor PDM can handle up to 100 Amps of continuous combined current, as well as 160A of non-repetitive maximum current. If you need to manage even more power, you can easily add multiple Razor PDM's via CAN or use as a CAN Expander to increase your inputs and outputs.
The Razor PDM has the ability to connect with many other ECU brands and CAN devices when using a custom CAN stream. Those of you with a Link ECU will be pleased to know that our software comes with a pre-configured stream, so your Link products will work with the device straight out of the box.
Setup and management of the Razor PDM is performed through our custom PDM Link software, which is
free to download
and use.
Features
Razor PDMs (Power Distribution Modules) are programable computers and include the following features:
- PDM Features
- Can be used in conjunction with a Link ECU or as a completely standalone device.
- Configurable Over-Current and Short Circuit Protection, with adjustable trip and resettable fuse parameters.
- Flexible and powerful control strategies including general purpose PID control, math functions, logic expressions and CAN keypad functions.
- Flexible CAN keypad control, allowing buttons to operate Razor PDM outputs, Link ECU functions or both (G5, G4X and G4+ with some limitations).
- Data logging via CAN or USB for diagnostics, analysis and troubleshooting, helping you find issues quicker.
- Multiple Razor PDM units can be connected easily via CAN for more I/O.
- USB Configuration via Link's free advanced software package, PDM Link.
What's in the Box
- Link Razor PDM
- Mounting plate and screws
- Superseal C Plug and Pin Kit
- USB-C connection cable
- Positive terminal insulation boot
- 2 x high-current ring terminals and bolts
- Quickstart guide
