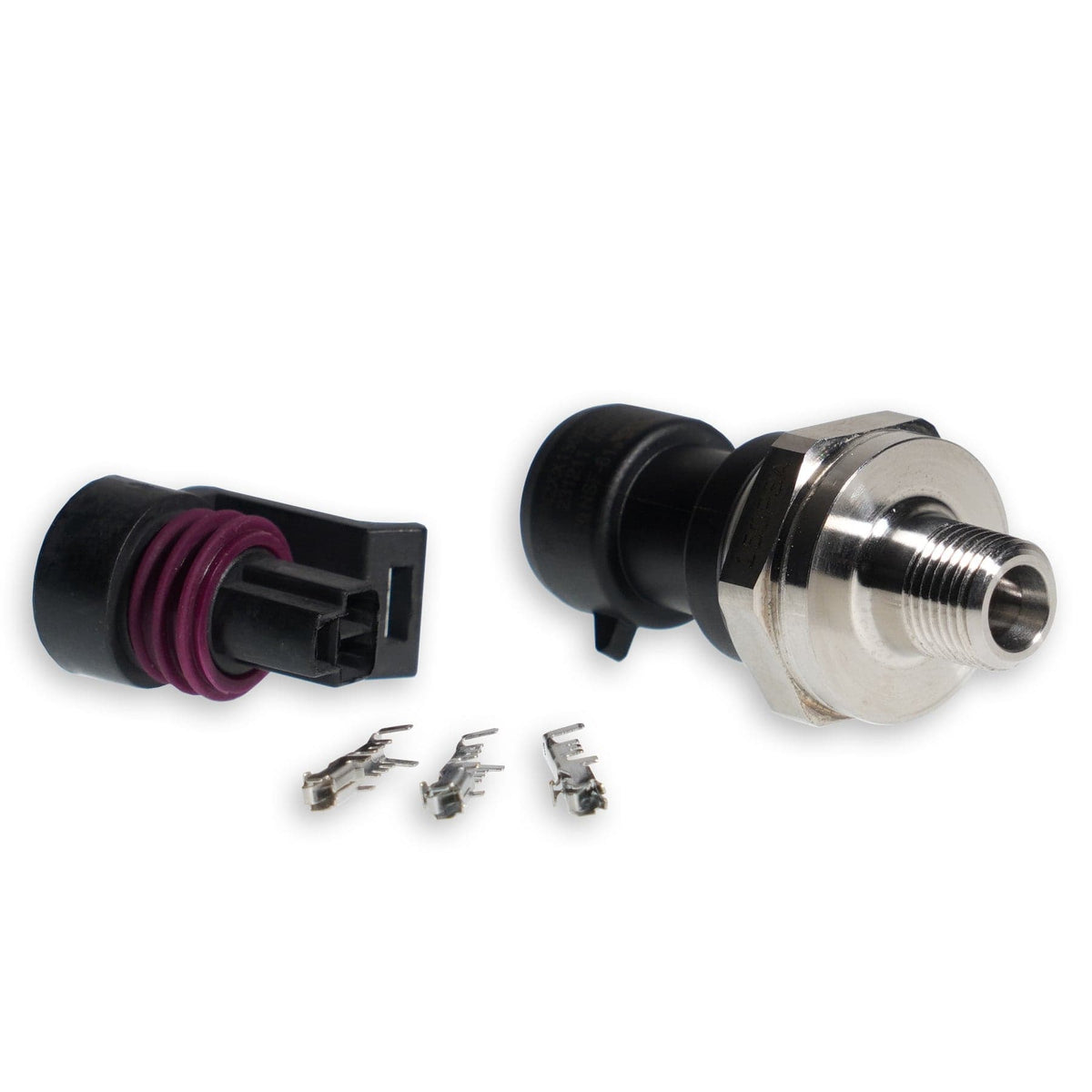

Link ECU MIPS 150PSI Pressure Sensor 1/8 NPT
Brand: Link ECU
Part Number: 101-0325
Description:
The Link MIPS 150 PSI Pressure Sensor is a media-isolated pressure transducer designed to provide accurate and reliable pressure measurement in demanding automotive environments. Featuring a rugged stainless steel construction and a compact design, it is ideal for monitoring fuel, oil, coolant and other compatible fluid pressures in motorsport and performance applications.
Features
- Quality Honeywell sensor, Rugged Stainless Steel Construction
- 1/8 NPT, 22mm hex
- Includes connector kit (3-Way Metri-Pack 150)
- Rated from -40ºC to 125ºC
- 5V Supply (4.75V to 5.25V)
- 0.5V to 4.5V Output voltage
- Suitable for use with oil, petrol, ethanol, diesel, coolant, water.
Suits
- All Link ECUs.
- Other aftermarket ECUs with analogue pressure sensor inputs.
What's in the Box
- MIPS 150PSI Pressure Sensor
- 3-way Metri-Pack 150 Connector Kit
- Printed Accessory instructions
Specifications
-
Highlights: The Link MIPS 150 PSI Pressure Sensor has the following specifications:; Genuine Honeywell MIP Series pressure sensor.; Pressure range: 0 to 150 psi.; 1/8"-27 NPT male thread.; Stainless steel construction.; Media-isolated sensing element.; Ratiometric 0.5 V to 4.5 V analogue output.; Operating temperature: -40degC to +125degC.; Supplied with Metri-Pack 150 connector kit.
-
Product Dimensions: 45mm(L)x25mm(W)x25mm(H); 1.77in(L)x0.98in(W)x0.98in(H)
-
Product Weight: 25 grams (0.88 ounces)
-
Electrical: Operating Voltage Range: 4.75-5.25V; Maximum Input Voltage: 40V; Maximum Continuous Current Draw: 7.5mA
-
PCLink Calibration Name: "1000 kPa (150 PSI) TI Sensor"
-
Raw Calibration Specs: 0.5V = 0kPa, 4.5V = 1034.21kPa
-
Connector: 3-way Metri-Pack 150 Connector Kit (PN 101-0130)
Notes
- Requires a regulated 5 V sensor supply from the ECU. Install using appropriate thread sealant suitable for the application. Ensure the sensor pressure range is appropriate for the system being monitored.
