Link ECU IGN1A - High Powered Inductive Smart Coil - Integrated Ignitor

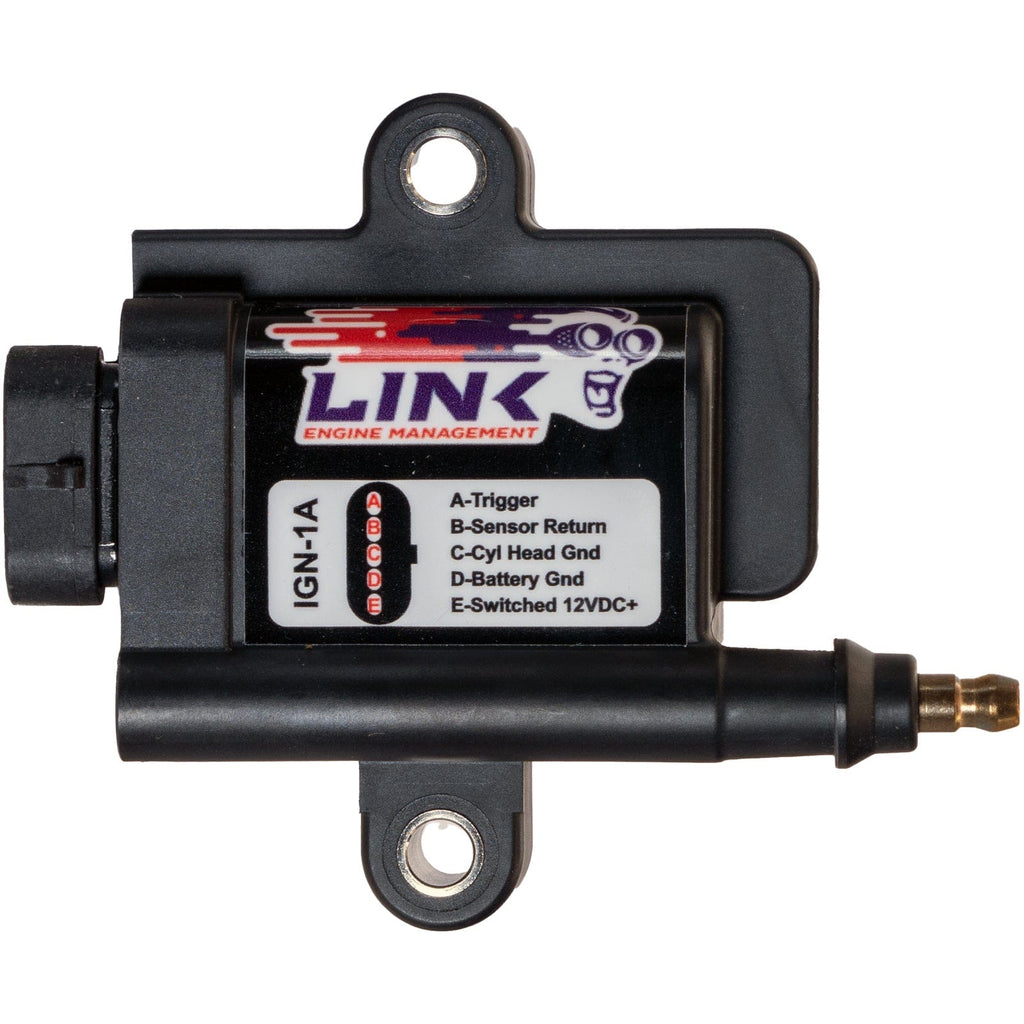

IGN1A - High Powered Inductive Smart Coil (Integrated Ignitor)
Brand: Link ECU
Part Number: 101-0291
Description:
The Link IGN-1A Smart Coil is a high-output inductive ignition coil with a built-in ignitor, delivering 103 mJ of spark energy and a long 2.9 ms spark duration. Designed for universal ignition systems, it provides reliable, high-energy ignition for naturally aspirated, turbocharged and supercharged engines without requiring an external ignitor.
Suits
- Link G4+/G4X/G5 ECU's.
- Other aftermarket ECUs with logic-level ignition outputs.
- HT lead ignition systems using HEI-style plug wire ends/boots.
What's in the Box
- IGN1A Smart Coil
- Mating Connector Kit
Specifications
-
Highlights: The Link IGN-1A Smart Coil has the following specifications:; High-output inductive smart coil with built-in ignitor.; Delivers 103 mJ spark energy.; 2.9 ms spark duration.; Nominal dwell: 3.0 ms.; Maximum output voltage up to 81 kV; Universal mounting design.; Includes mating connector kit.
-
Product Dimensions: 110mm(L)x90mm(W)x50mm(H); 4.33in(L)x3.54in(W)x1.97in(H)
-
Product Weight: 420 grams (14.82 ounces)
-
Electrical: Operating Voltage Range: 6-17V; Maximum Input Voltage: 17V; Maximum Continuous Current Draw: 19A
-
Raw Calibration Specs: See picture or table of the Dwell settings from the manual (page 3)
Notes
- Designed for HT lead ignition systems. It is not a coil-on-plug ignition coil.
- Connect the logic ground to the ECU ground, the spark ground to the cylinder head, and the power ground directly to the battery negative.
- Excessive dwell or duty cycle can damage the coil.
- Refer to the IGN-1A Smart Coil User Guide for wiring and installation instructions.
