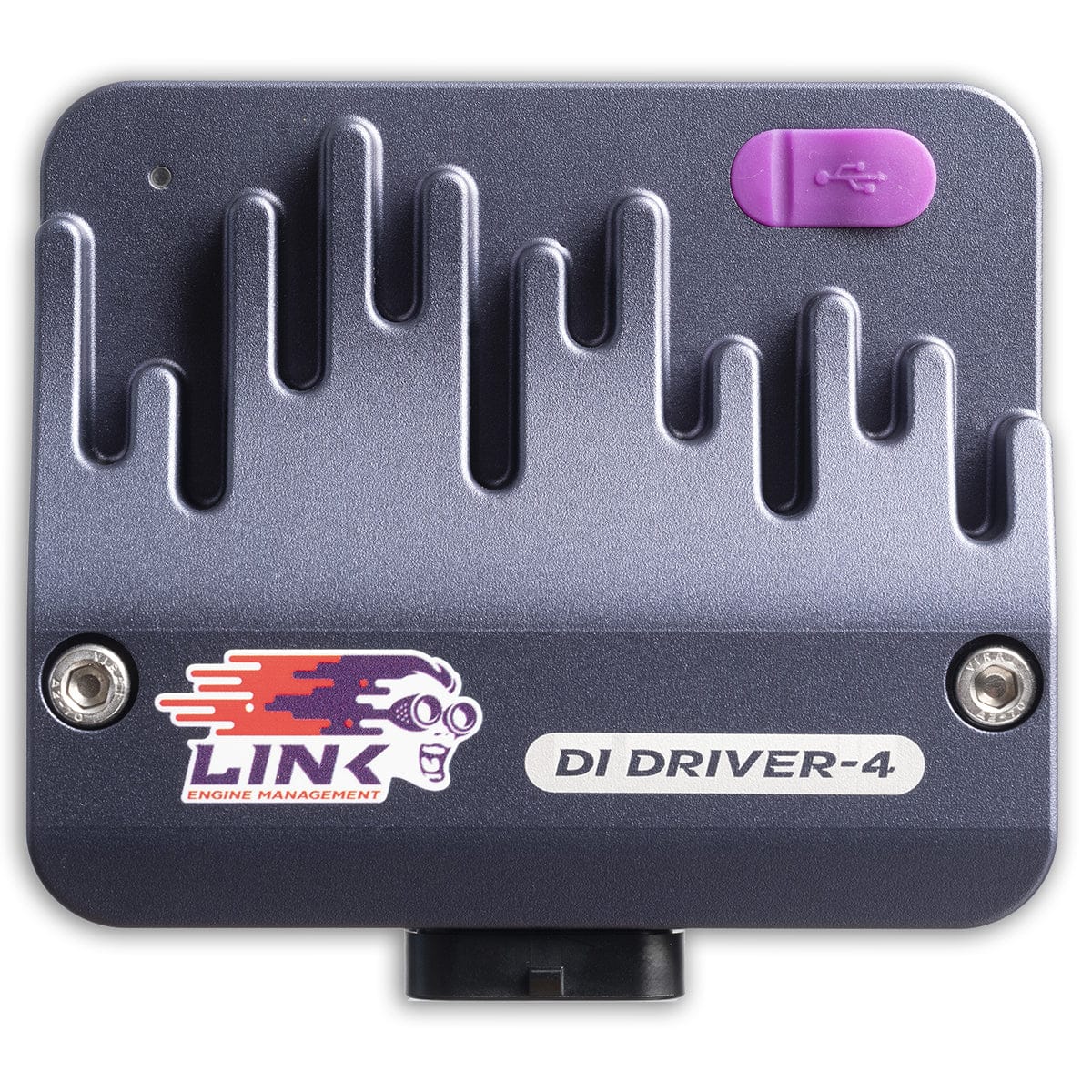

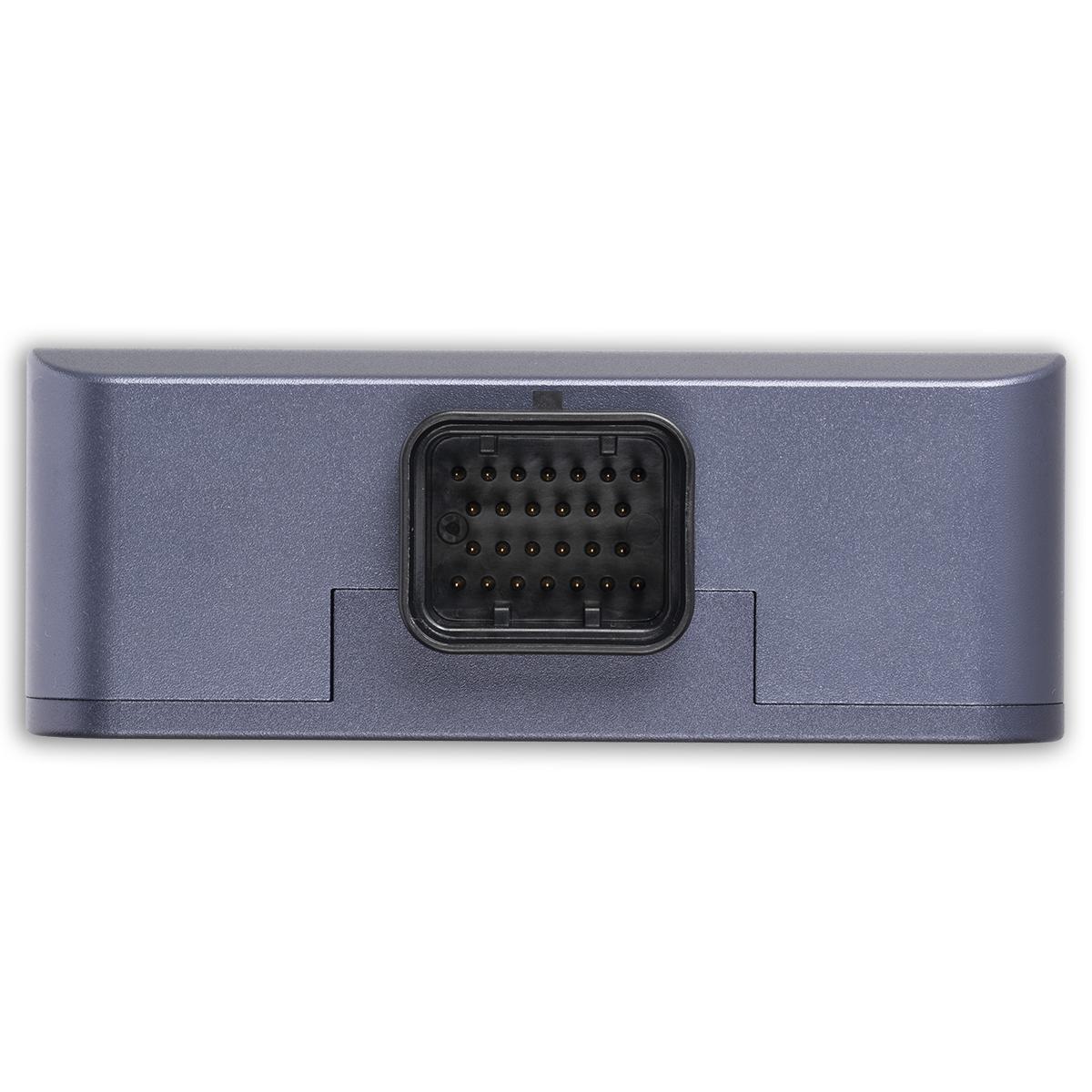

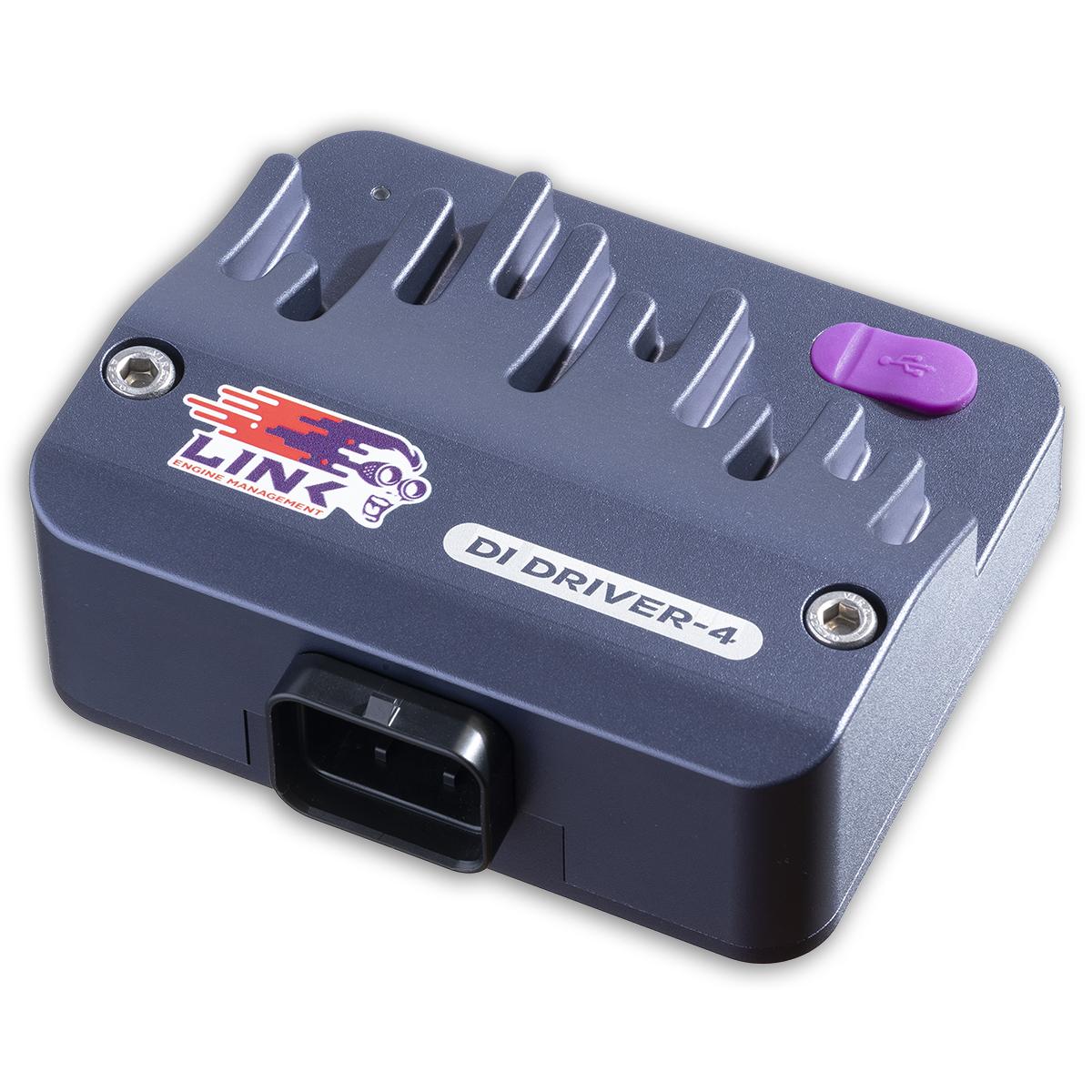

Link ECU DI Driver-4 Direct Injection Controller
Brand: Link ECU
Part Number: 144-5000
Description:
The DI Driver-4 is the next leap forward in engine tuning, allowing you to master the complexities of direct injection tuning.
The DI Driver-4 is a highly configurable, cost-effective and integrated solution, designed to give you full control of most modern solenoid type direct injectors and high-pressure fuel pumps.
When combined with Link's G5 Voodoo range of ECUs, multiple DI Driver-4 modules allow up to 12 Direct Injectors and two independent High Pressure Fuel Pumps to flow up to their maximum amount of fuel at a very high engine RPM.
Together, the G5 Voodoo ECUs and the DI Driver-4 can control both Direct Injection and staged Port Injection on a single tune, giving you the ultimate all-in-one solution to achieve greater power and efficiency.
Connecting your ECU and additional DI Driver-4 modules is easy with CAN Bus compatibility. Set-up has been simplified with our easy-to-use free DI Link software, which is highly configurable over USB.
The DI Driver-4 is engineered to withstand demanding conditions, and is backed by the industry-leading reliability and support you've come to expect from LinkECU.
Suits
- Each DI Driver-4 module can allow up to four high voltage peak and hold solenoid Direct Injectors and one high-pressure peak and hold Fuel Pump to flow up to their maximum amount of fuel at a very high engine RPM.
What's in the Box
- Link DI-Driver 4
- Quick Start guide
- Superseal D Plug and Pin Kit
- USB-C connection cable
Specifications
-
Inputs and Outputs: Four Direct Injection Injector Drives; One High Pressure Fuel Pump Drive
-
Communications: 1 CAN bus with software configurable termination.; 1 USB Type-C for configuration via DI Link software.
-
Product Dimensions: 103.6mm(L) x 86.3mm(W) x 39.0mm(H); 4.08in(L) x 3.40in(W) x 1.54in(H)
-
Product Weight: 438 grams (15.45 ounces)
-
Material: Sealed CNC billet aluminium enclosure
-
Electrical: Operating Voltage Range: 7-30V; Maximum Input Voltage: 36V; Maximum Continuous Current Draw: 10A; Max Boost Current: 17.9A, Max Boost Voltage: 65V; Max Peak Current: 17.9A, Max Peak Duration: 2ms; Max Hold Current: 5.0A, Max Hold Duration: 164ms; Max engine RPM running a Bosch HDEV: 14,200RPM
-
Misc.: Water Resistant
