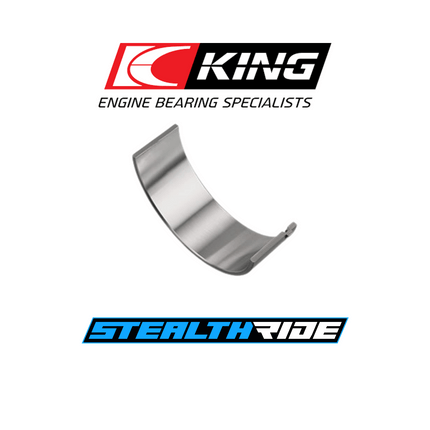

King XP Race Rod Bearings STDX VW 91-03 2.0L 9A ABA A4 97-99 1.8T 20V AEB GTI 00 1.8T
Brand: King Bearings
Part Number: CR4104XP STDX
Description:
King XP Race Rod Bearings STDX Audi VW 83-03 1.6L 1.8L 2.0L 1.8T 20V AEB AWD
The XP Tri-Metal Racing Series
Successful race engine builders are constantly pushing the limits of load capacity to new levels. Race bearings today inevitably need to match these demands with more competitive bearings. At King Racing we met the challenge with the XP high performance bearings series.
The XP series is a line of bearings with advanced metallurgical and geometric technologies that meet extreme performance loads. It was developed for all performance applications that use forged steel aftermarket crankshafts and produce high loads for extended periods.
King Racing’s XP series features pMax Black™, a unique tri-metal structure that is 24% harder than any other conventional tri-metal race bearing. pMax Black™ together with the XP geometric features are the ideal combination for performance racing. For more on King Racing technologies visit TechLab
Description: AUDI/VW 1.6L, 1.8L, 2.0L ('83-'03)
Bearing Types:
CR - Con Rod bearing set
Material construction:
XP - Tri-metal copper lead
Bearing size inches
Dimension / Under Size e.g. "STD" for Standard, X equals.001" extra Clearance
| Bearing Size Inches |
STDX |
STD |
.001" |
010X |
.010" |
.011" |
020X |
.020" |
.021" |
.030" |
| Bearing Size metric |
STDX |
STD |
.025 |
|
.25 |
|
|
0.5 |
|
0.75 |
| Crankshaft undersize |
0 |
0 |
0 |
-.010" |
-.010" |
-.010" |
-.020" |
-.020" |
-.020" |
-.030" |
| Additional Shell Thickness (on nominal) |
-.0005" |
0 |
+.0005" |
+.0045" |
+.005" |
+.0055" |
+.0095" |
+.010" |
+.0105" |
+.015" |
Fitment
-
Make: Audi, Volkswagen
-
Model: A4 Quattro 97-01 B5 8D, Golf 93-99 MK3, Jetta 93-99 MK3, GTI 00-06 MK4, Jetta 00-05 MK4
-
Engine: 1.8T 20V, 1.8T 20V AEB, 2.0L 16V 9A, 2.0L 8V ABA
Specifications
-
Note: VW 4, 1780-1983cc, 1983-on. 2000 GTI & Jetta with AWD Engine Code. Fits 1.8T Engine Code AEB & AWD.
-
Competitor Interchange Part Number: 4B1606HX CB-1426H 4-4465P
-
Bearing Class: Race
-
Bearing oversize: HX (Extra Oil Clearance)
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
