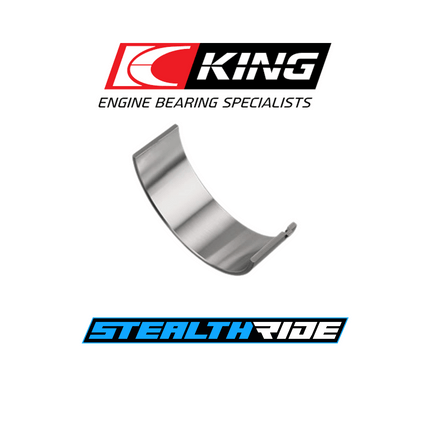

King XPC Coated Race Rod Bearings STDX Acura Integra GSR Type-R 94-01 DC2 B18C1 B18C5
Brand: King Bearings
Part Number: CR4287XPC STDX
Description:
King Bearings XPC Coated Race Rod Bearings STDX Acura Integra GSR Type-R 94-01 DC2 B18C1 B18C5
The XP Tri-Metal Racing Series
Successful race engine builders are constantly pushing the limits of load capacity to new levels. Race bearings today inevitably need to match these demands with more competitive bearings. At King Racing we met the challenge with the XP high performance bearings series.
The XP series is a line of bearings with advanced metallurgical and geometric technologies that meet extreme performance loads. It was developed for all performance applications that use forged steel aftermarket crankshafts and produce high loads for extended periods.
King Racing’s XP series features pMax Black™, a unique tri-metal structure that is 24% harder than any other conventional tri-metal race bearing. pMax Black™ together with the XP geometric features are the ideal combination for performance racing. For more on King Racing technologies visit TechLab "
Bearing Type:
CR - Con Rod bearing set
Material construction:
XP - Tri-metal copper lead
Bearing Features:
Coated
Bearing size
Dimension / Under Size e.g. ""STD"" for Standard, X equals.001"" extra Clearance
| Bearing Size Inches |
STDX |
| Bearing Size metric |
STDX |
| Crankshaft undersize |
0 |
| Additional Shell Thickness (on nominal) |
-.0005"" |
Metal Structure: Tri-metal copper lead.
Race Type: Circle track, Off-road, off-shore, others that require steel crankshafts.
Engine requirements: High load - Long Duration.
HIGHER LOAD CAPACITY
The only bearing with load capacity of 17,000psi in the intermediate and 10,200psi in the overlay
BETTER FATIGUE RESISTANCE
The only bearing that goes through a hardening process creating a black fatigue resistance shield, which makes the overlay 24% stronger than any other bearing (11.5hv vs 14.5hv)
MORE ACCURACY
The only bearings with wall thickness variation of ±.0001” as a standard in comparison to ±0.00025”.
MORE CONSISTENCY
from bearing to bearing, requiring less adjustment during assembly
ONE SET FITMENT
The only bearings that don’t require you to buy multiple sets to achieve desired oil clearance
pMaxKote- Coated Bearings
King factory applied nano-composite polymer coating
King’s pMaxKote ia a revolutionary new approach to coated bearings. This unique polymer coating is applied over King’s pMaxBlack overlay at the King factory during the bearing manufacturing process. King’s pMaxKote contains ceramic nano-composite particles that function as a fourth layer to enhance wear resistance. pMaxKote does not change the bearing’s original precision wall thickness and adds no additional thickness.
with additional:
- Seizure resistance
- Superior cavitation resistance
- Wear resistance
- Protection against oil starvation
Fitment
-
Make: Honda / Acura
-
Model: Integra GSR 94-01 DC, Integra Type-R 97-01 DC2
-
Engine: B18C1, B18C5
Specifications
-
Note: Coated
-
Bearing Class: Race
-
Bearing oversize: HX (Extra Oil Clearance)
