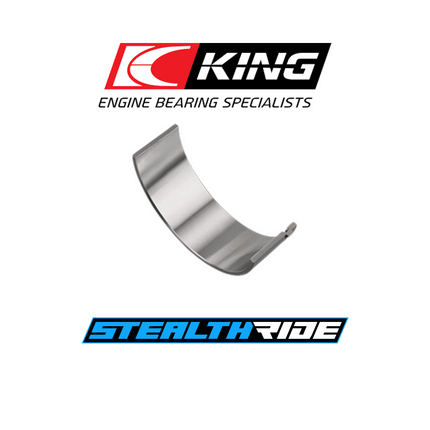

King XP Race Rod Bearings N 0.5mm Ford Mustang 96-26 4.6L SOHC DOHC 5.0L Coyote Gen 1
Brand: King Bearings
Part Number: CR 868XPN0.50
Description:
King Bearings XP Race Rod Bearings N 0.5 Ford Mustang GT 96-17 4.6L 5.0L Coyote
Description: FORD V8, 4.6L/5.4L Modular 5.0L Coyote Gen 1 & 2
Bearing Types:
MB - Main bearing set
CR - Con Rod bearing set
CS - Camshaft bearing set
TW - Thrust washer set
Material construction:
HP - Bi-metal aluminum Silicon Alloy
XP - Tri-metal copper lead
Bearing Features:
N - Narrowed
D - Dowel
Bearing size inches
Dimension / Under Size e.g. "STD" for Standard, X equals.001" extra Clearance
| Bearing Size Inches |
STDX |
STD |
.001" |
010X |
.010" |
.011" |
020X |
.020" |
.021" |
.030" |
| Bearing Size metric |
STDX |
STD |
.025 |
|
.25 |
|
|
0.5 |
|
0.75 |
| Crankshaft undersize |
0 |
0 |
0 |
-.010" |
-.010" |
-.010" |
-.020" |
-.020" |
-.020" |
-.030" |
| Additional Shell Thickness (on nominal) |
-.0005" |
0 |
+.0005" |
+.0045" |
+.005" |
+.0055" |
+.0095" |
+.010" |
+.0105" |
+.015" |
Metal Structure: Tri-metal copper lead.
Race Type: Circle track, Off-road, off-shore, others that require steel crankshafts.
Engine requirements: High load - Long Duration.
HIGHER LOAD CAPACITY
The only bearing with load capacity of 17,000psi in the intermediate and 10,200psi in the overlay
BETTER FATIGUE RESISTANCE
The only bearing that goes through a hardening process creating a black fatigue resistance shield, which makes the overlay 24% stronger than any other bearing (11.5hv vs 14.5hv)
MORE ACCURACY
The only bearings with wall thickness variation of ±.0001” as a standard in comparison to ±0.00025”.
MORE CONSISTENCY
from bearing to bearing, requiring less adjustment during assembly
ONE SET FITMENT
The only bearings that don’t require you to buy multiple sets to achieve desired oil clearance
Fitment
-
Make: Ford
-
Model: Mustang GT 11-14 S197, Mustang GT 15-17 S550, Mustang GT 18-23 S550
-
Engine: 5.0L Coyote Gen 1, 5.0L Coyote Gen 2, 5.0L Coyote Gen 3
Specifications
-
Old Part Number: CR868XPN0.50
-
Note: Narrow
-
Bearing Class: Race
-
Bearing oversize: 0.020" / 0.5mm
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
