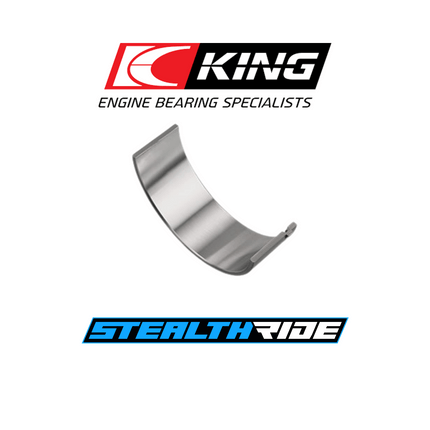

King Bearings Race XPC Coated Rod Bearings STD Mitsubishi Evo X CZ4A 4B11T CR4586XPC

pMaxKote™


King Factory Applied Nano-composite Polymer Coating – With No Added Thickness!

King’s new pMaxKote™ is a nano-composite polymer coating. It is applied over the pMaxBlack™ overlay at the King factory as part of the bearing manufacturing process. It enhances wear resistance without changing the bearing’s original precision wall thickness dimension.

King’s pMaxKote™ is a new approach to coated bearings. It has proven to protect bearings during metal-to-metal contact, as well as from the erosive effects of cavitation. It contains ceramic nano-composite particles that function as a fourth layer that provides superior build protection.

pMaxKote™ enhances the following benefits of King XP race bearings:

• Superior seizure resistance

• Superior cavitation resistance

• Superior wear resistance

• Superior protection against oil starvation


pMaxBlack™ tri-metal structure

Intermediate layer
The intermediate layer of a typical race bearing contains 2-3% tin, with hardness values of 90-95 HV. For a superior pMaxBlack™ intermediate layer, we increased the tin content to 4.5%, making it 22% harder at 115 HV, with a load carrying capacity of 17,000 psi.

pMaxBlack™ Overlay
The overlay of a typical high performance bearing consists of a leaded alloy that contains 2-3% copper. It achieves a hardness level of 11 – 14 HV, and a maximum load capacity of 8,000-8,500 psi.

King’s pMax Black™ overlay is significantly stronger than conventional overlays due to its 5% copper content and an innovative nano-scaled hardening process.
