King Race XP Rod Bearings 0.026mm S2000 00-09 AP1 AP2 Prelude 93-01 F20C F22C H22A1
Brand: King Bearings
Part Number: CR4033XP.026
Description:

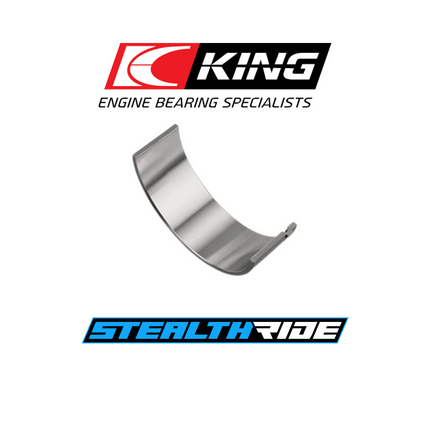

King Bearings Race XP Rod Bearings 0.026mm S2000 00-09 AP1 AP2 Prelude 93-01 F20C F22C H22A1 H22A4
The XP Tri-Metal Racing Series
Successful race engine builders are constantly pushing the limits of load capacity to new levels. Race bearings today inevitably need to match these demands with more competitive bearings. At King Racing we met the challenge with the XP high performance bearings series.
The XP series is a line of bearings with advanced metallurgical and geometric technologies that meet extreme performance loads. It was developed for all performance applications that use forged steel aftermarket crankshafts and produce high loads for extended periods.
King Racing’s XP series features pMax Black™, a unique tri-metal structure that is 24% harder than any other conventional tri-metal race bearing. pMax Black™ together with the XP geometric features are the ideal combination for performance racing. For more on King Racing technologies visit TechLab
Description: HONDA F22, H22A, H23A, F20C, B20A5, B21A1
Bearing Types:
CR - Con Rod bearing set
Material construction:
XP - Tri-metal copper lead
Bearing size inches
Dimension / Under Size e.g. "STD" for Standard, X equals.001" extra Clearance
| Bearing Size Inches |
STDX |
STD |
.001" |
010X |
.010" |
.011" |
020X |
.020" |
.021" |
.030" |
| Bearing Size metric |
STDX |
STD |
.025 |
|
.25 |
|
|
0.5 |
|
0.75 |
| Crankshaft undersize |
0 |
0 |
0 |
-.010" |
-.010" |
-.010" |
-.020" |
-.020" |
-.020" |
-.030" |
| Additional Shell Thickness (on nominal) |
-.0005" |
0 |
+.0005" |
+.0045" |
+.005" |
+.0055" |
+.0095" |
+.010" |
+.0105" |
+.015" |
Fitment
-
Make: Honda / Acura
-
Model: Prelude Si 91-96 BB2, Prelude VTEC 91-96 BB1, Prelude VTEC 97-01 BB6, S2000 00-03 AP1, S2000 04-09 AP2
-
Engine: F20C, F22C, H22A1, H22A4, H23A
Specifications
-
Competitor Interchange Part Number: 4B1912H-.026 CB-1780H 4-1825CP
-
Bearing Class: Race
-
Bearing oversize: 0.001" / 0.026mm
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
