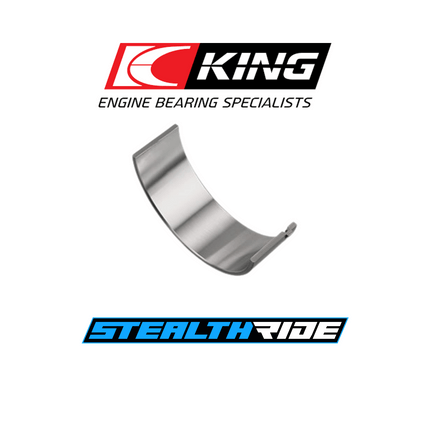

King Bearings Main Bearings .001 FORD 370, 429, 460 16v OHV
Brand: King Bearings
Manufacturer's Part Number: MB5650HP 001
Stealth Ride Part Number: MB5650HP 001
UPC: 611500532832
Description:
Description: FORD 370, 429, 460 16v OHV
Bearing Types:
MB - Main bearing set
CR - Con Rod bearing set
CS - Camshaft bearing set
TW - Thrust washer set
Material construction:
HP - Bi-metal aluminum Silicon Alloy
XP - Tri-metal copper lead
Bearing Features:
N - Narrowed
D - Dowel
Bearing size inches
Dimension / Under Size e.g. "STD" for Standard, X equals .001" extra Clearance
| Bearing Size Inches | STDX | STD | .001" | 010X | .010" | .011" | 020X | .020" | .021" | .030" |
| Bearing Size metric | STDX | STD | .025 | | .25 | | | 0.5 | | 0.75 |
| Crankshaft undersize | 0 | 0 | 0 | -.010" | -.010" | -.010" | -.020" | -.020" | -.020" | -.030" |
| Additional Shell Thickness (on nominal) | -.0005" | 0 | +.0005" | +.0045" | +.005" | +.0055" | +.0095" | +.010" | +.0105" | +.015" |
HP Series
Metal structure : Bi-metal aluminum silicon alloy.
Race type : Drag racing, tractor pulls, monster trucks
Circle track (engines using nodular cast iron crankshaft)
Load Capacity : 8,000 PSI
Melting Temp : 450F
Engine requirements : High load - Short duration
or
Medium load - long duration (engines using nodular cast iron crankshaft)
HP is a Bi-Metal bearing series that was developed mainly for drag race applications needing a material that is harder than the Babbitt top layer.
HP series is particularly suitable for the following cases:
- When a tri-metal bearing’s Babbitt overlay extrudes over the sides or migrates to one end
- When the intermediate layer of a tri-metal bearing is exposed, damaging the crank journal
- When contaminants enter the oil stream, scratching and damaging the crankshaft journals
More Information | Availability New | In Stock / Available |
| Barcode | 611500532832 |
| UPC Code | 611500532832 |
| Shipping Weight (Dimensional) | 1.520000 |
| Clearance Sale | No |
| Availability | Available |
| Part Type | Main Bearings |
| Make | Ford |
| Brand | King Bearings |
| Competitor Interchange Part Number | 5M1039H-001 MS-1039V 134M |
| Bearing Class | Non-Race |
| Bearing oversize | 0.001" / 0.025mm |
| Carb Legal | Unspecified |
| Shipping Label | |
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
