Aeroflow Performance Fuel Systems AF49-1015B EFI Electric In-tank/External Fuel Pump 675 HP (984) AF49-1015B SR

Roll over image to zoom in Click on image to zoom

EFI Electric In-tank/External Fuel Pump 675 HP (984) AF49-1015B

EFI Electric In-tank/External Fuel Pump 675 HP 1/2" Barb Inlet, M12 x 1.5mm Outlet, similar to Bosch 984

Save $47.68

Aeroflow PerformanceSKU: AF49-1015B

PRODUCT SHIPS SAME DAY FROM STEALTH RIDE

Part Number: AF49-1015B

Variant

Price:

$78.67 AUD $126.35 AUD

Quantity:

Instructions

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

EFI Electric In-tank/External Fuel Pump 675 HP1/2" Barb Inlet, M12 x 1.5mm Outlet, similar to Bosch 984
Brand: AEROFLOW
Part Number: AF49-1015B
Description:

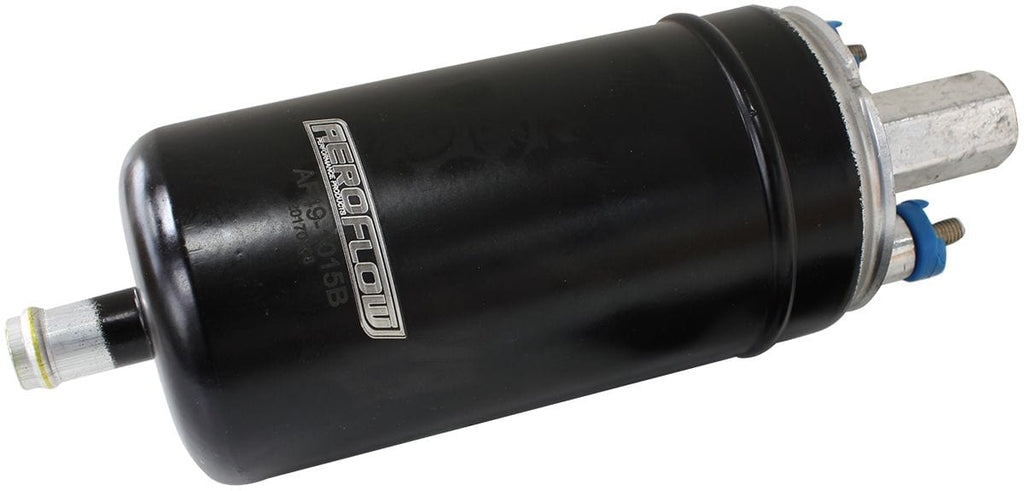

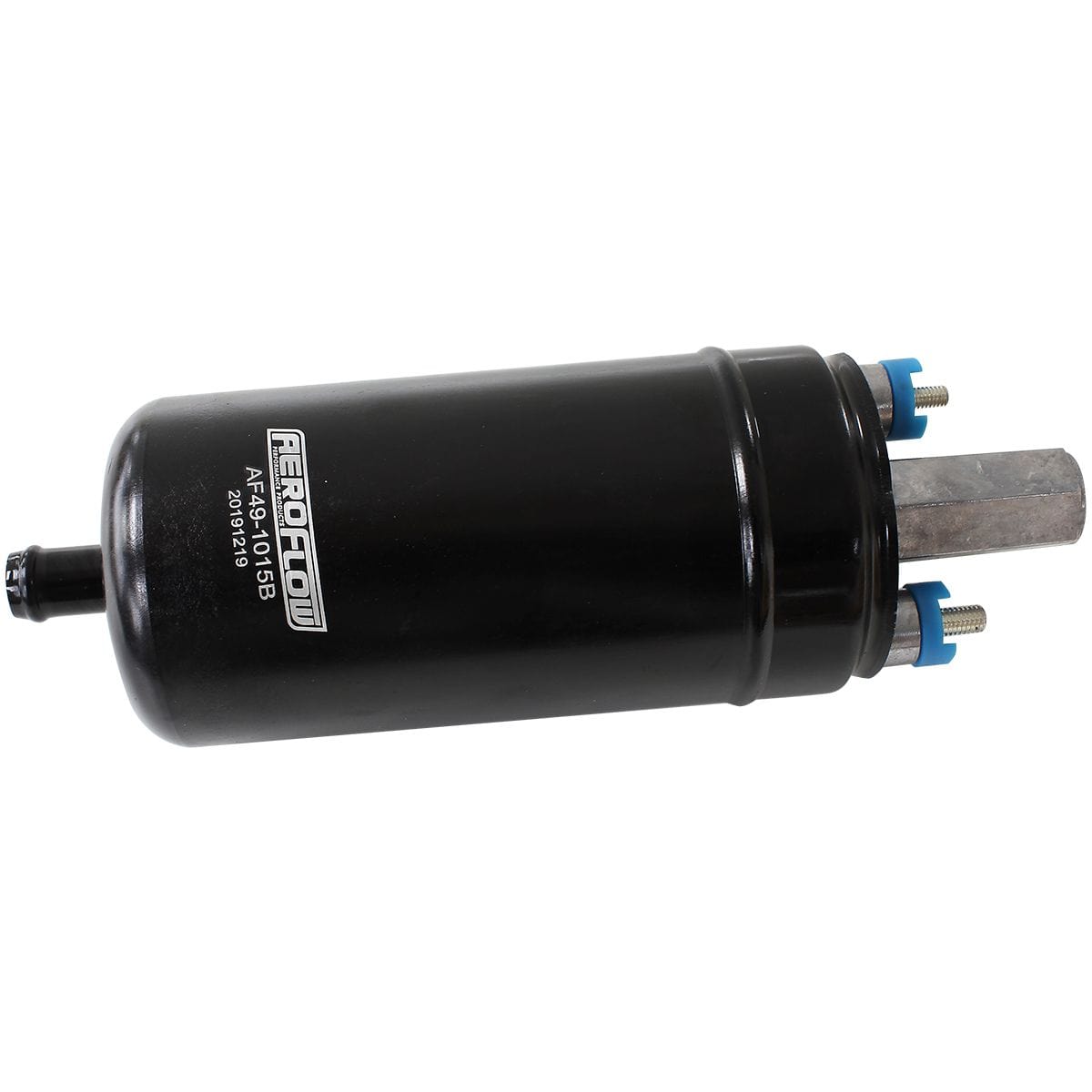

Universal 60mm External or In-Tank EFi Fuel Pump.

This Aeroflow Performance fuel pump delivers outstandingperformance and durability andis one of the most popular pumps for performance and racing applications. This fuelpump is almost identical to AF49-1014 but features a 12.7mm (1/2") inlet. The pump is very versatile, allowing you to mount your pump externally as an in-line pump or internally as an in-tank pump. While producing 300lph (79GPH) of fuel flow and operating at 72.5psi, withthis pump you will be able to support 675hp. It features a check valve already screwed into the outlet, if you leave itin you will need to run a banjo fitting as the thread istapered. It is common for people to remove this check valve and screw an adaptor fitting straight in the outlet. If you do this you will need to put an aftermarket check valve in-line to keep fuel pressure in your lines.

Compatible with Unleaded, E85 and Methanol. (When running Alcohol fuels the service life will be reduced and filter maintenance must beincreased).

Additional Specifications:

Body Length: 181mm (7-1/8")

Body Diameter: 60mm (2-23/64")

Outlet thread: M12 x 1.50mm

Inlet Thread: M14 x 1.50mm

Electrical Terminals: Positive M6, Negative M5
