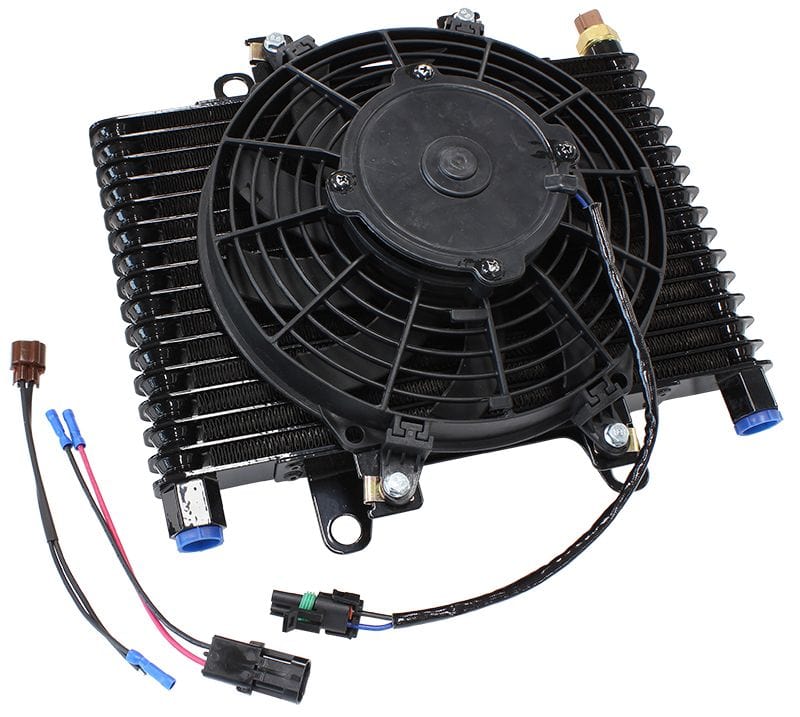

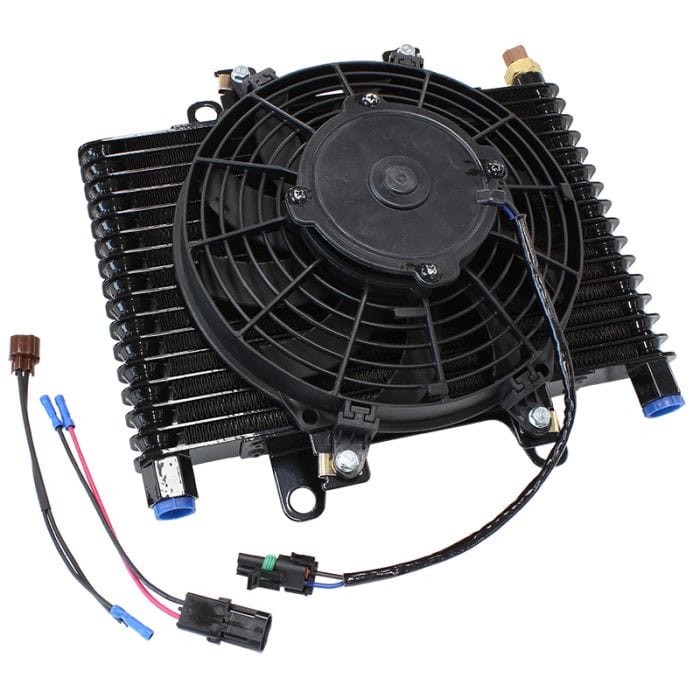

Aeroflow Performance Aeroflow AF72-6000 Competition Oil & Transmission Cooler
1/2" NPT, 13-1/2" x 9" x 3-1/2", with Fan & SR

Roll over image to zoom in Click on image to zoom

Competition Oil & Transmission Cooler 1/2" NPT, 13-1/2" x 9" x 3-1/2", with Fan &

Bang Shift Momentary Button Spiral Cord Red Momentary Button to Activate Accessories

Save $60.70

Aeroflow PerformanceSKU: AF72-6000

Part Number: AF72-6000

Variant

Price:

$264.17 AUD $324.87 AUD

Quantity:

Instructions

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Competition Oil & Transmission Cooler1/2" NPT, 13-1/2" x 9" x 3-1/2", with Fan &
Brand: AEROFLOW
Part Number: AF72-6000
Description:

Aeroflow's engine and transmission competition oil coolers feature 1/2" NPT female fittings, thermostat, wiring plug kit and a high quality electric fan. It accepts engine oil, transmission and power steering applications and has been pressure tested to over 200psi.

The M18 x 1.50mmthermal switch included in thetop of the oil cooler activates the fan at 175°F/79.5°C. The cooler also features a fin andplate construction. The dimensions are 13-1/2"(342mm) x 9"(228mm).

The 9-1/2" (241mm) electric fan can be reversed for mounting either side of the heat exchanger. They are boxedin the pusher configuration. To change this to a puller fansimply unscrew 10mm nut (reverse (left hand) thread) and turn fan blade over keeping in mind polarity BLUE - Positive BLACK - Negative.

Additional Specifications:

Dimensions:
Overall Length:342mm (13.5")
Overall Height: 228mm (9")
Oil Cooler Thickness: 32mm
Fan Thickness: 67mm
Centre toCentre of Mounting Holes: 153mm
Centre to Centre of Oil Cooler 1/2" NPT Ports: 305mm
Centre to Centre ofFan Mounts: 113mm

-M18 x 1.50mm Thermal Switch.
- Turns electric fan on at 79.5°C (175°F)
- 9-1/2"(241mm) Reversible Electric Fan
- Flows 500 CFM
- Draws 6 Amps
