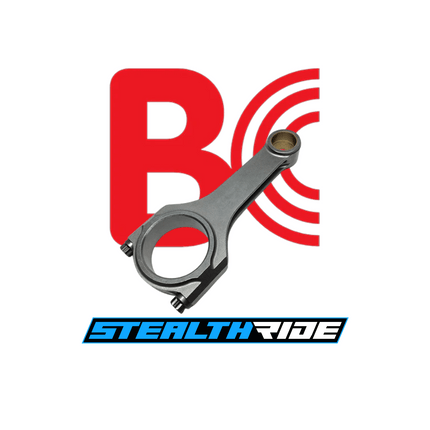

Brian Crower Titanium I Beam Connecting Rods Acura TSX 04-08 Honda Accord 03-07 K24A1/2/4/8
Brand: Brian Crower
Part Number: BC6047T
Description:
Brian Crower Titanium Connecting Rods w/ARP2000 Fasteners Honda/Acura K24A K24A 402 gram Weight
.tg {border-collapse:collapse;border-spacing:0;}.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px; overflow:hidden;padding:10px 5px;word-break:normal;}.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px; font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}.tg.tg-pb0m{border-color:inherit;text-align:center;vertical-align:bottom}
| Years |
Make |
Model |
Sub Model |
Engine |
| 2004-2008 |
Acura |
TSX |
Base |
K24A2 |
| 2003-2005 |
Honda |
Accord |
DX / LX / EX |
K24A4 |
| 2005 |
Honda |
Accord |
SE |
K24A4 |
| 2007 |
Honda |
Accord |
Special Edition / EX-L |
K24A8 |
| 2006-2007 |
Honda |
Accord |
LX / EX / Value Package |
K24A8 |
| 2006 |
Honda |
Accord |
LX Special Edition |
K24A8 |
| 2005-2006 |
Honda |
CR-V |
SE |
K24A1 |
| 2002-2006 |
Honda |
CR-V |
LX / EX |
K24A1 |
| 2003-2004 |
Honda |
Element |
DX |
K24A4 |
| 2004-2006 |
Honda |
Element |
LX |
K24A4 |
| 2007-2011 |
Honda |
Element |
LX / EX |
K24A8 |
| 2003-2006 |
Honda |
Element |
EX |
K24A4 |
| 2007-2010 |
Honda |
Element |
SC |
K24A8 |
Honda/Acura K24A - Titanium w/ARP2000 Fasteners. Designed for road race, circle track and circuit course applications where getting the rpm’s down quickly on corner entry and that snappy throttle response on corner exit are paramount to faster lap times. Made from aerospace grade, 6AL4V titanium, these rods deliver the strength characteristics of our standard weight ProH2K steel design deliver but at 33% of the overall weight. Titanium alloy is effective for for higher power output compared to steel because the titanium connecting rod enables to reduce the weight of both of reciprocating and rotating parts in an entire engine substantially. Every rod is CNC machined, micropolished surface finish treatment, equipped with AMPCO-45 pin bushings and finish honed to exacting tolerances.
| C-to-C |
5.985" |
| BE Bore |
2.008" |
| BE Width |
0.780" |
| PE Bore |
0.866" |
| PE Width |
0.780" |
| Gram Wt |
402 |
| Torque Specs |
45 ft lbs - 3/8" |
Fitment
-
Make: Honda / Acura
-
Model: CR-V 02-06 RD4-RD9, Element 07-11, TSX 04-08 CL9, Accord 06-07 CM4-CM8, Accord 03-05, Element 03-06
-
Engine: K24A1, K24A2, K24A4, K24A8
Specifications
-
Note: 6AL4V Titanium w/ARP2000 Fasteners.
-
Item Weight: 402 g
-
Rod Length: 5.984" / 152mm
-
Rod Length Oversize: Standard Length
-
Pin Size: 0.866" / 22mm
-
Small End Width: 0.780
-
Rod Material: Titanium
-
Rod Bolt: 3/8" ARP 2000
-
Big End Width: 0.780"
-
Big End Bore: 2.008"
-
Beam Type: I-Beam
-
Wrist Pin Dimensions: 0.866" / 22mm
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–20 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
