Brian Crower STROKER KIT - Can-Am X3, 73.5mm Billet Crank, MOAR I-Beam Rods, JE Pistons 74mm STD 10.0:1, Unbalanced
Brand: Brian Crower
Manufacturer's Part Number: BC0939
Stealth Ride Part Number: BC0939
UPC:
Description:
Brian Crower Stroker Kit Can-Am Maverick X3 Turbo 17+ 73.5mm Billet Crank MOAR Rods Custom JE Pistons 74mm STD 10.0:1
The BC stroker kit for the Can-Am X3 engine platform incorporates a 73.5mm (+3.8mm) stroke in the OEM crank pin configuration. This 73.5mm stroke along with the stock 74mm bore turns the ROTAX 900 into a square engine which delivers the perfect balance of speed and pulling capability. This BC kit will take you up to a 948.35cc with stock 74mm bore. As usual, Kit features custom JE aluminum forged pistons, 8620 series wrist pins (9310 pins available upon request for big HP applications), locks and complete ring pack.
Note: If using the BC connecting rods with the low profile, 625+ ARP custom rod bolts, the aftermarket billet girdle is not required.
- BC 4340 Billet steel crankshaft (73.5mm stroke) rated up to 500whp.

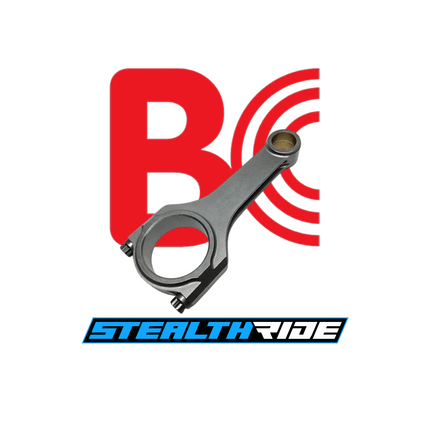

- BC 4340 MOAR I-Beam Connecting Rods featuring ARP Custom Age 625+ fasteners.
- JE aluminum forged pistons (74mm Bore, 10.0:1).
- 8620 Series wrist pins come standard in every BC stroker kit.
- Ductile iron plasma top rings, tapered second ring, low tension oil rings.
More Information | Availability New | In Stock / Available |
| Note | Unbalanced with Custom JE Forged Pistons |
| Shipping Weight (Dimensional) | 31.710000 |
| Clearance Sale | No |
| Availability | Available |
| Part Type | Stroker Kits |
| Make | Can-Am |
| Model | Maverick X3 Turbo 2017-2019, Maverick X3 Turbo/Turbo R & RR 20+ |
| Engine | Rotax 900 ACE |
| Rod Length | 4.606" / 117mm |
| Rod Length Oversize | Standard Length |
| Bore Diameter | 74mm |
| Bore Oversize | Standard Bore |
| Stroke | 73.5mm (Stroker) |
| Compression Ratio | 10.0:1 |
| Pin Size | 0.708" / 18mm |
| Crank Material | 4340 Billet Steel |
| Brand | Brian Crower |
| Skirt Type | Full Round |
| Rod Material | Forged Steel |
| Rod Bolt | 5/16" ARP CA625+ |
| Big End Bore | 1.536 |
| Beam Type | I-Beam |
| Carb Legal | No |
| Shipping Label | |
Please note: This is a special order item by Stealth Ride. Usual wait times are 5–15 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.
