Brian Crower Brian Crower High Lift Valve Springs Retainers K20 K20A K20Z F20 F20C F22 F22C BC0040T SR

Roll over image to zoom in Click on image to zoom

Brian Crower 92lbs High Lift Valve Springs Retainers K20 F20C F22C (BC0040T)

Name: Brian Crower 92lbs High Lift Valve Springs Retainers K20 F20C F22C (BC0040T)
Brand: Brian Crower
SKU: BCR BC0040T
Price: 774.00 NZD
Availability: InStock
Rating: 5 (34 reviews)

Fits: Honda / Acura Civic Si 06-11 FA5 (Sedan), Civic Si 06-11 FG2 (Coupe), RSX Type S 02-06 DC5, S2000 00-03 AP1, S2000 04-09 AP2 F20C, F22C, K20A2, K20Z1, K20Z3 | Seat Pressure: 92lbs @ 40.39mm, Open Pressure: 270lbs @ 27.94mm, Max Lift: 15.75mm, Coil Bind: 22.10mm

Brian CrowerSKU: BCR BC0040T Manufacturer's SKU: BC0040T

Special Order

Estimated Shipping Time is 5-20 working days

📦 SPECIAL ORDER ITEM

This is a special order item. When you complete your order, we will order it from the supplier.

📦 Returns & Refunds Policy

Special Order Items Are not entilted to returns or refunds for change of mind, incorrect orders, or fitment issues.

Refunds or replacements are only available for faulty or damaged products. Claims must be made within 7 days of receiving your order, with proof of the fault.

Price:

$774.00 AUD

Quantity:

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Brian Crower 92lbs High Lift Valve Springs Retainers K20 F20C F22C

Brand: Brian Crower
Part Number: BC0040T

Description:

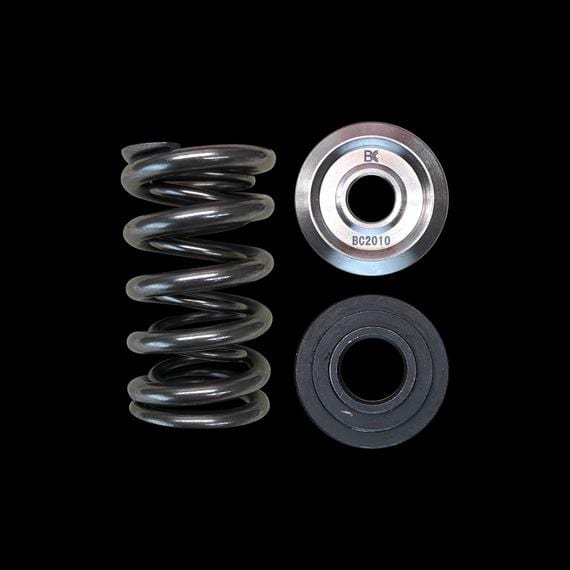

Brian Crower High Lift Valve Springs Retainers K20 K20A K20Z F20 F20C F22 F22C

Designed for high rpm, BC valve springs are wound from only the highest grade, super clean, chrome silicone alloy and feature proprietary processing procedures for consistent pressures. BC titanium retainers are CNC machined from 6AL4V round bar titanium to exacting tolerances.

K20A / K20Z VALVE SPRING & RETAINER KITS

Designed for high rpm, BC valve springs by PAC Racing are wound from only the highest grade, super clean, chrome silicone alloy and feature proprietary processing procedures for consistent pressures. BC titanium retainers are CNC machined from 6AL4V round bar titanium to exacting tolerances. Use steel retainer for high mileage applications.

Dual spring, titanium retainer/seat for high lift cams (BC0047/BC0047-2)

Spring Pressure: BC1040T Seat: 1.590" @ 92 lbs / Open: 1.100" @ 270 lbs / Coil Bind:.870" / Max Lift:.620" (no machine work required)

WARNING: If running a late model cylinder head (after 2004), you may need to purchase BC2940 keepers to accommodate the BC2010 or BC2011 retainers. Honda changed the keeper groove angles, therefore your stock keepers/locks may not fit the BC retainers properly causing potential damage.

Fitment

Make: Honda / Acura
Model: Civic Si 06-11 FA5 (Sedan), Civic Si 06-11 FG2 (Coupe), RSX Type S 02-06 DC5, S2000 00-03 AP1, S2000 04-09 AP2
Engine: F20C, F22C, K20A2, K20Z1, K20Z3

Specifications

Note: If running a late model head after 04, you may need to purchase BC2940 keepers to accommodate BC2010 or BC2011 retainers. Honda changed the keeper groove angles, so your stock keepers/locks may not fit the BC retainers causing potential damage.
Open Pressure: 270lbs @ 27.94mm
Max Lift: 15.75mm
Coil Bind: 22.10mm
Valve Spring Type: Dual
Seat Pressure: 92lbs @ 40.39mm
Retainer Material: Titanium

Please note: This is a special order item by Stealth Ride. Usual wait times are 5–20 working days. If your order is urgent or you're concerned about potential delays, please contact us before purchasing.

What does "Will be special ordered for you" mean?

This means that we do not have the product in our warehouse. We only order “Special Order” products from the supplier when you order them from us. Generally, we do not intend to keep an inventory of these items. Therefore, returns are not possible.

“Special Order” products could be shipped directly from the supplier or they could be shipped to us first. Then, we would ship it to you. The available shipping options will be provided during the checkout process.

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Brian Crower 92lbs High Lift Valve Springs Retainers K20 F20C F22C (BC0040T)

Fits: Honda / Acura Civic Si 06-11 FA5 (Sedan), Civic Si 06-11 FG2 (Coupe), RSX Type S 02-06 DC5, S2000 00-03 AP1, S2000 04-09 AP2 F20C, F22C, K20A2, K20Z1, K20Z3 | Seat Pressure: 92lbs @ 40.39mm, Open Pressure: 270lbs @ 27.94mm, Max Lift: 15.75mm, Coil Bind: 22.10mm
