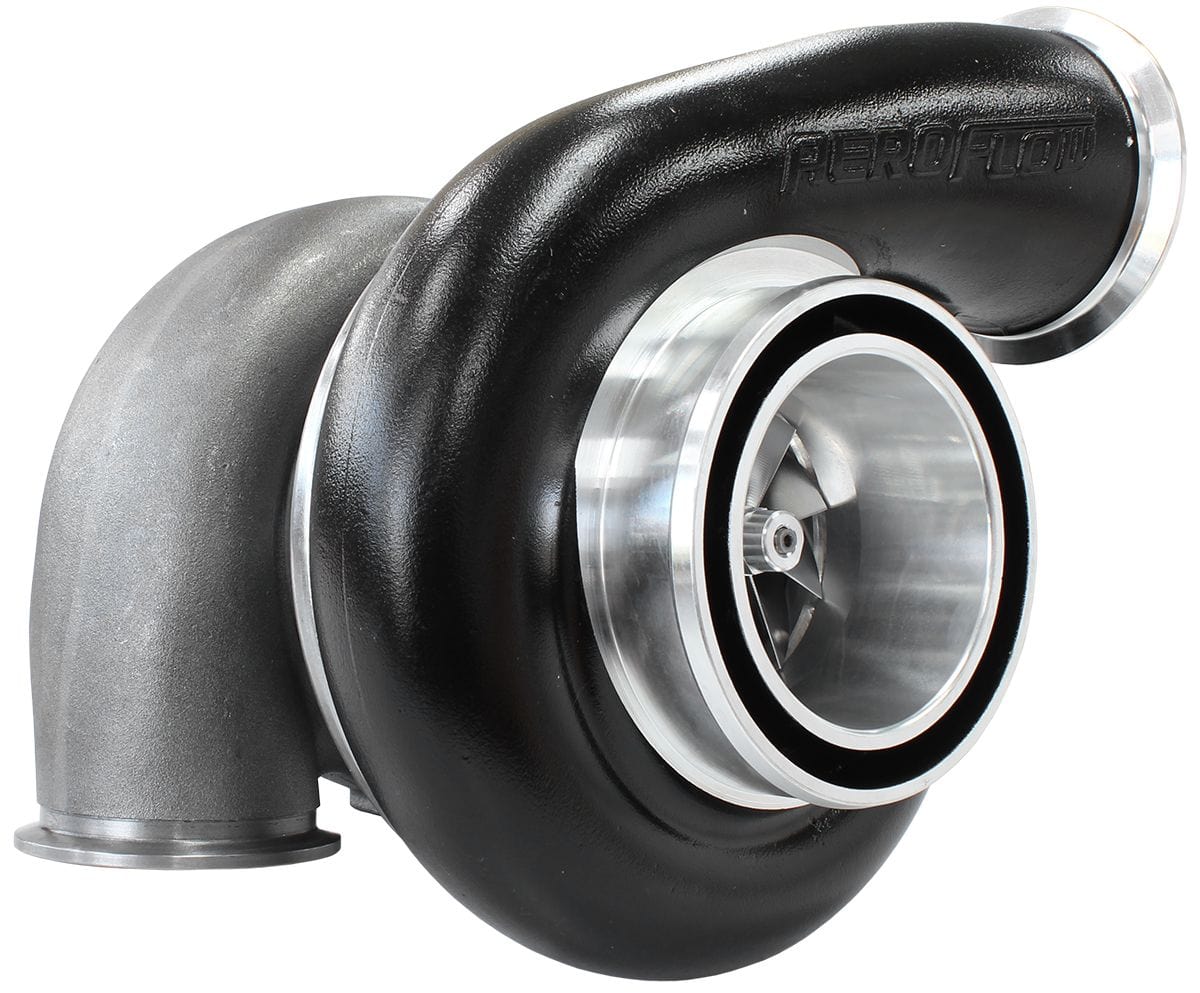

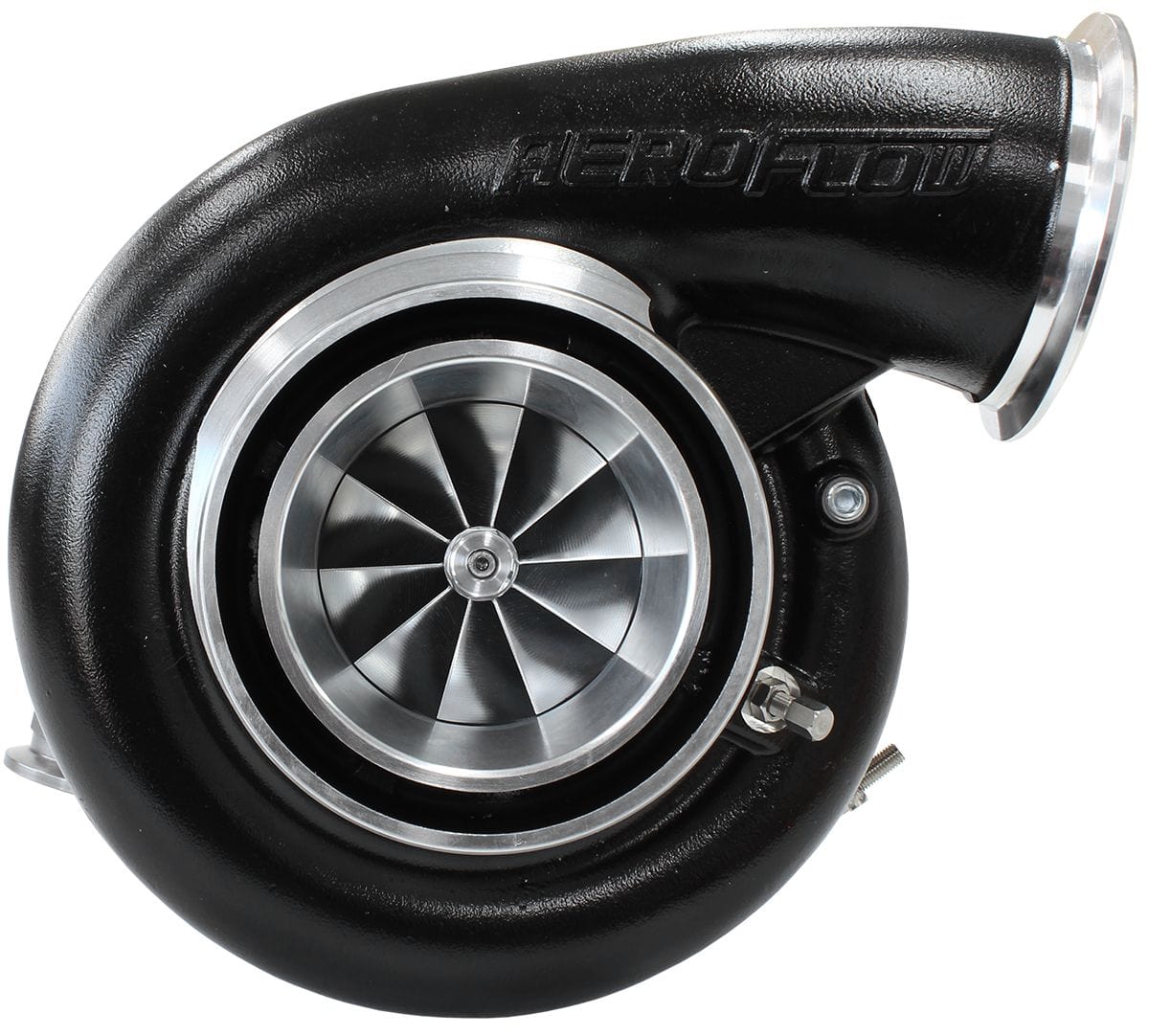

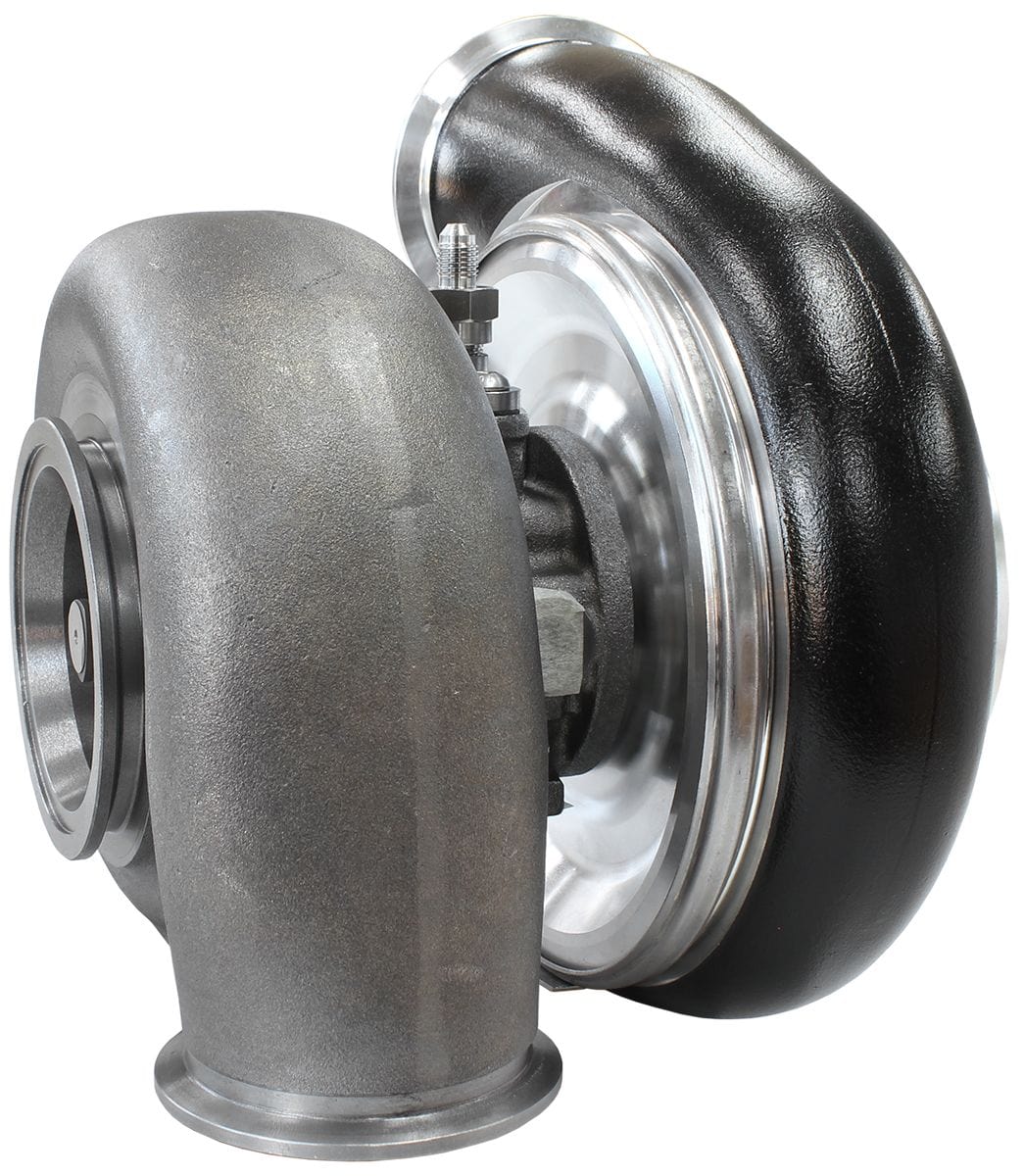

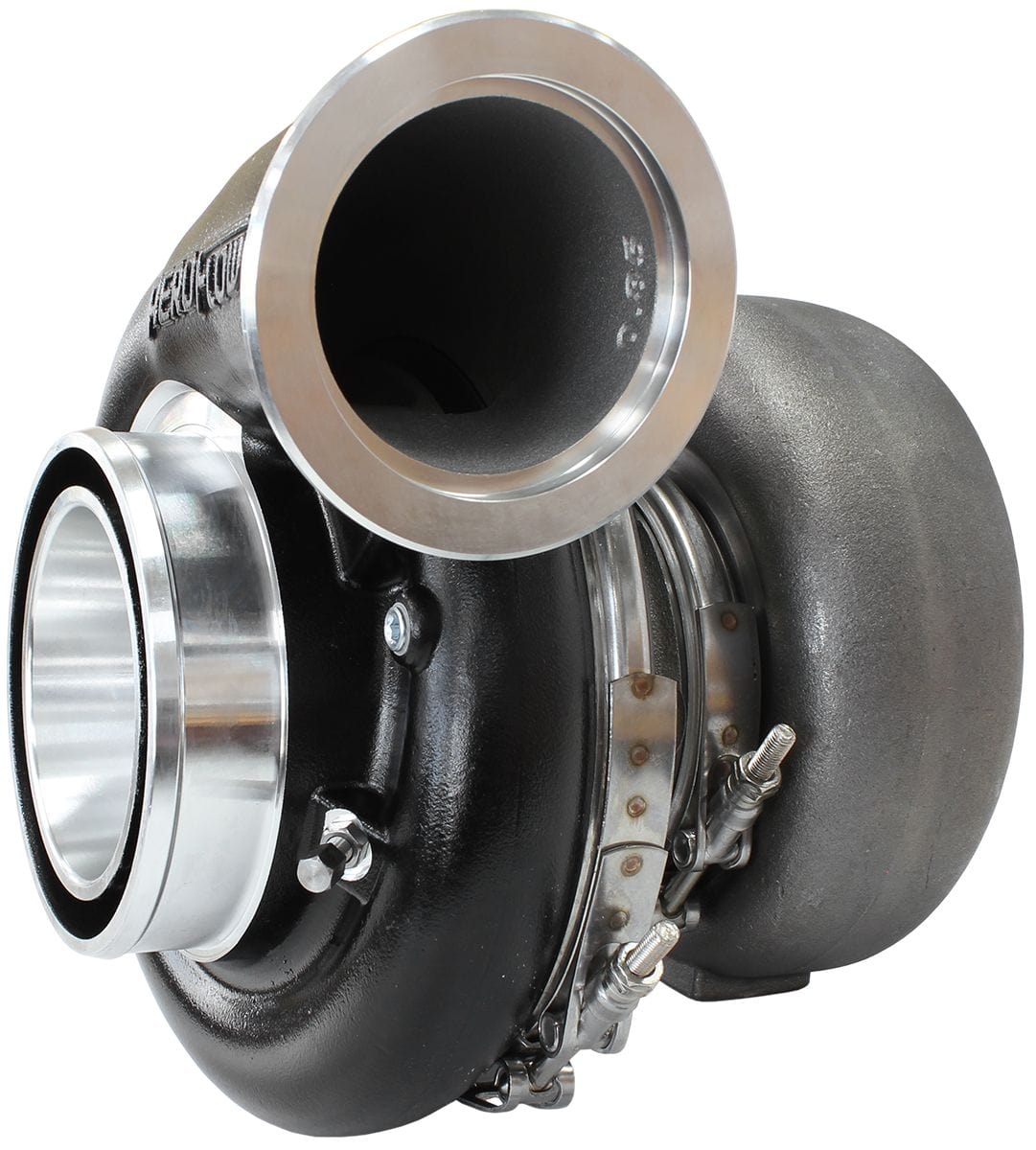

Aeroflow Performance Turbos Black BOOSTED 7975 V-Band 1.15 Turbocharger 1450HP, AF8005-4011 SR

Aeroflow Performance Turbos Silver BOOSTED 7975 V-Band 1.15 Turbocharger 1450HP, AF8005-4011 SR

Aeroflow Performance Turbos BOOSTED 7975 V-Band 1.15 Turbocharger 1450HP, AF8005-4011 SR

Roll over image to zoom in Click on image to zoom

BOOSTED 7975 V-Band 1.15 Turbocharger 1450HP, AF8005-4011

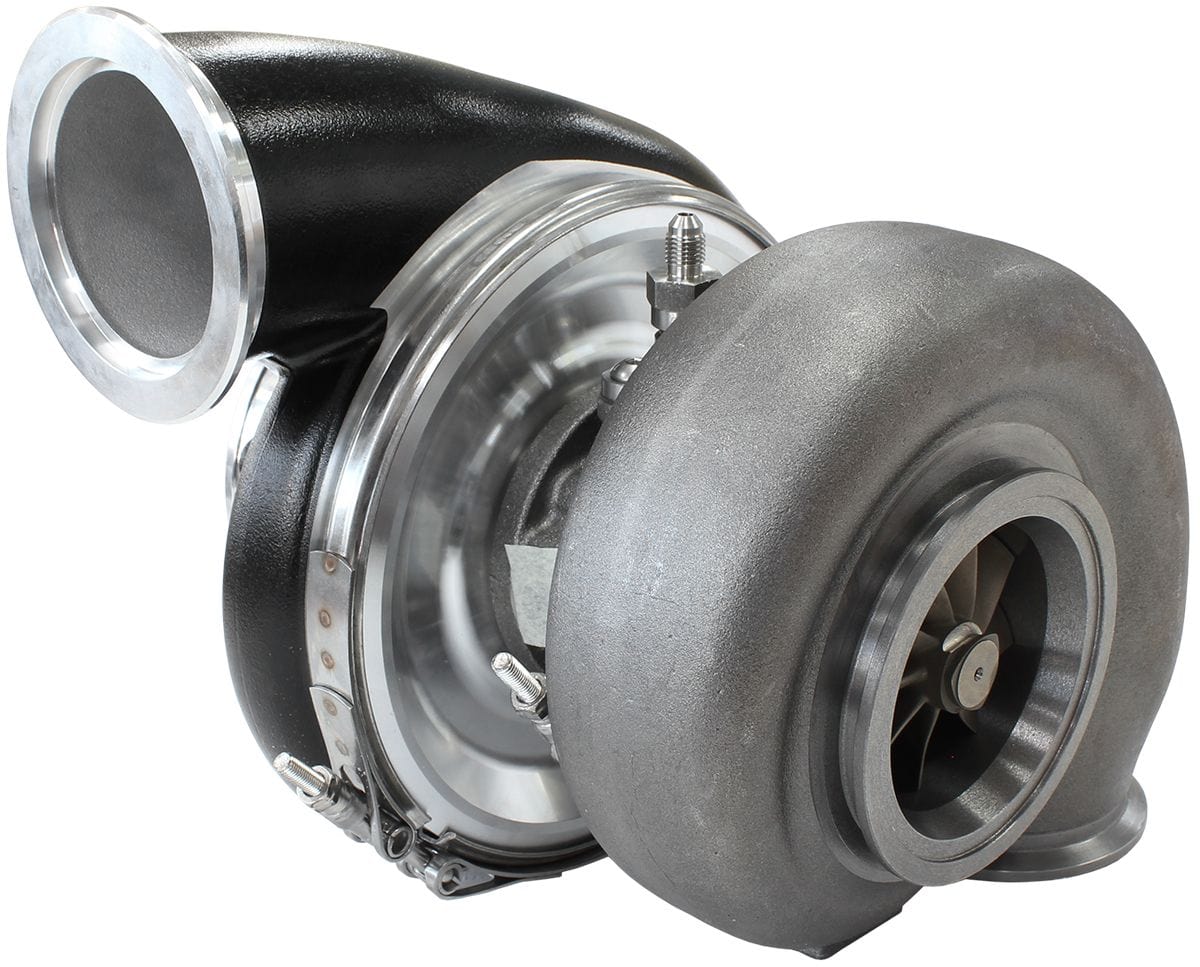

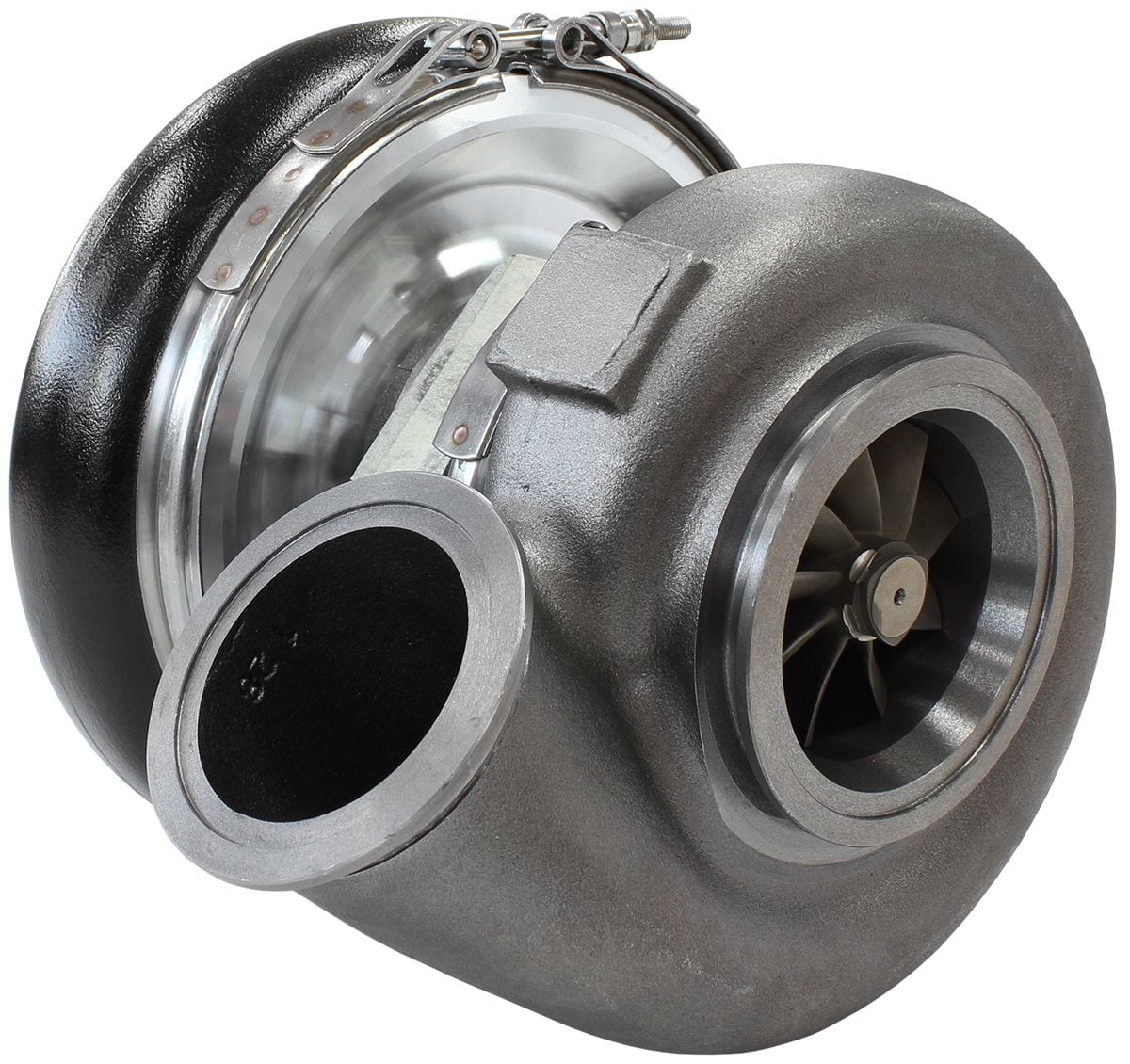

BOOSTED 7975 V-Band 1.15 Turbocharger 1450HP, Hi Temp Black Finish External Wastegate, V-Band Inlet & Exhaust Flanges

Save $85.42

Aeroflow PerformanceSKU: AF8005-4011BLK

Colour: Black

Variant

Price:

$1,622.97 AUD $1,708.39 AUD

Quantity:

Instructions

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

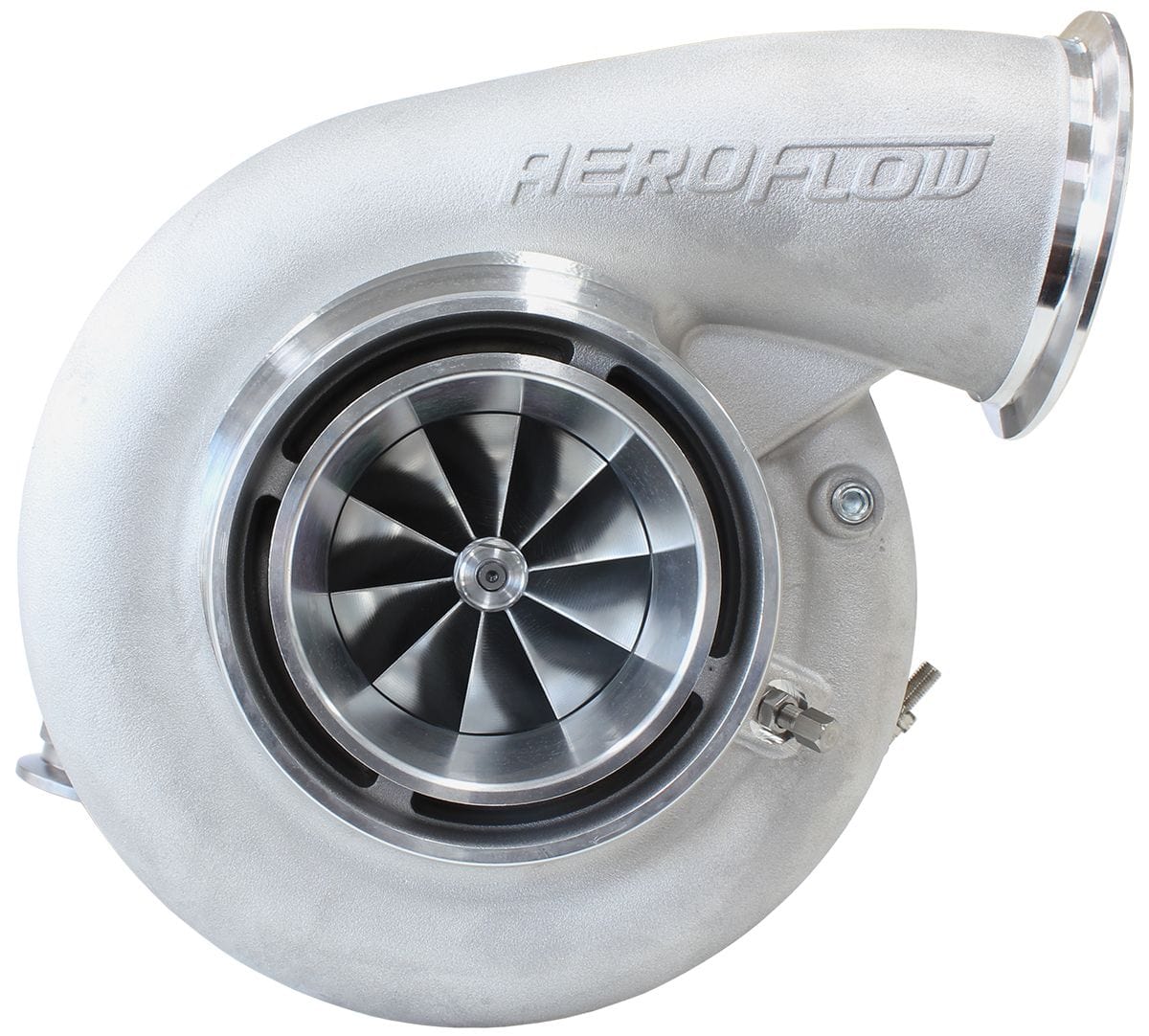

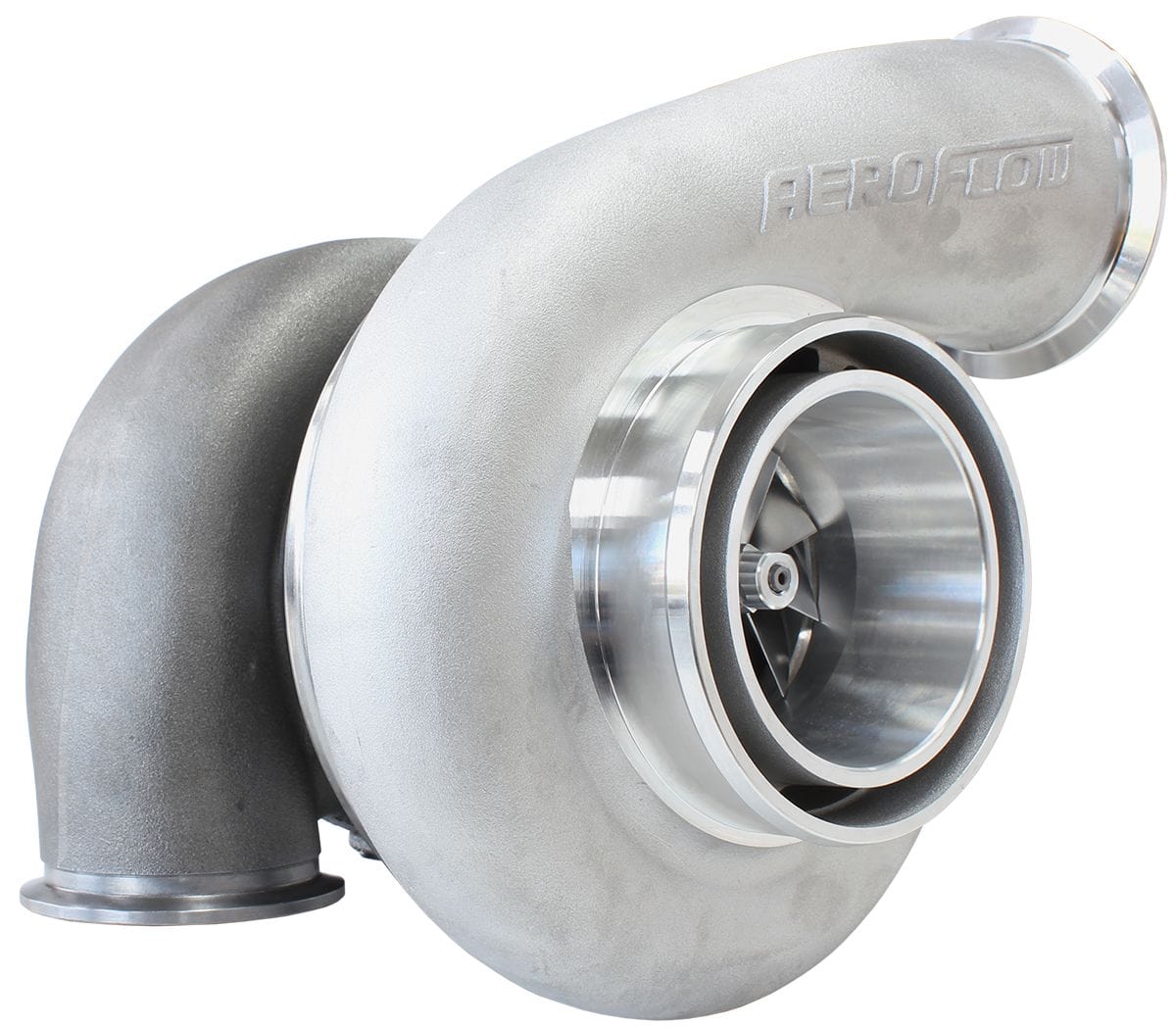

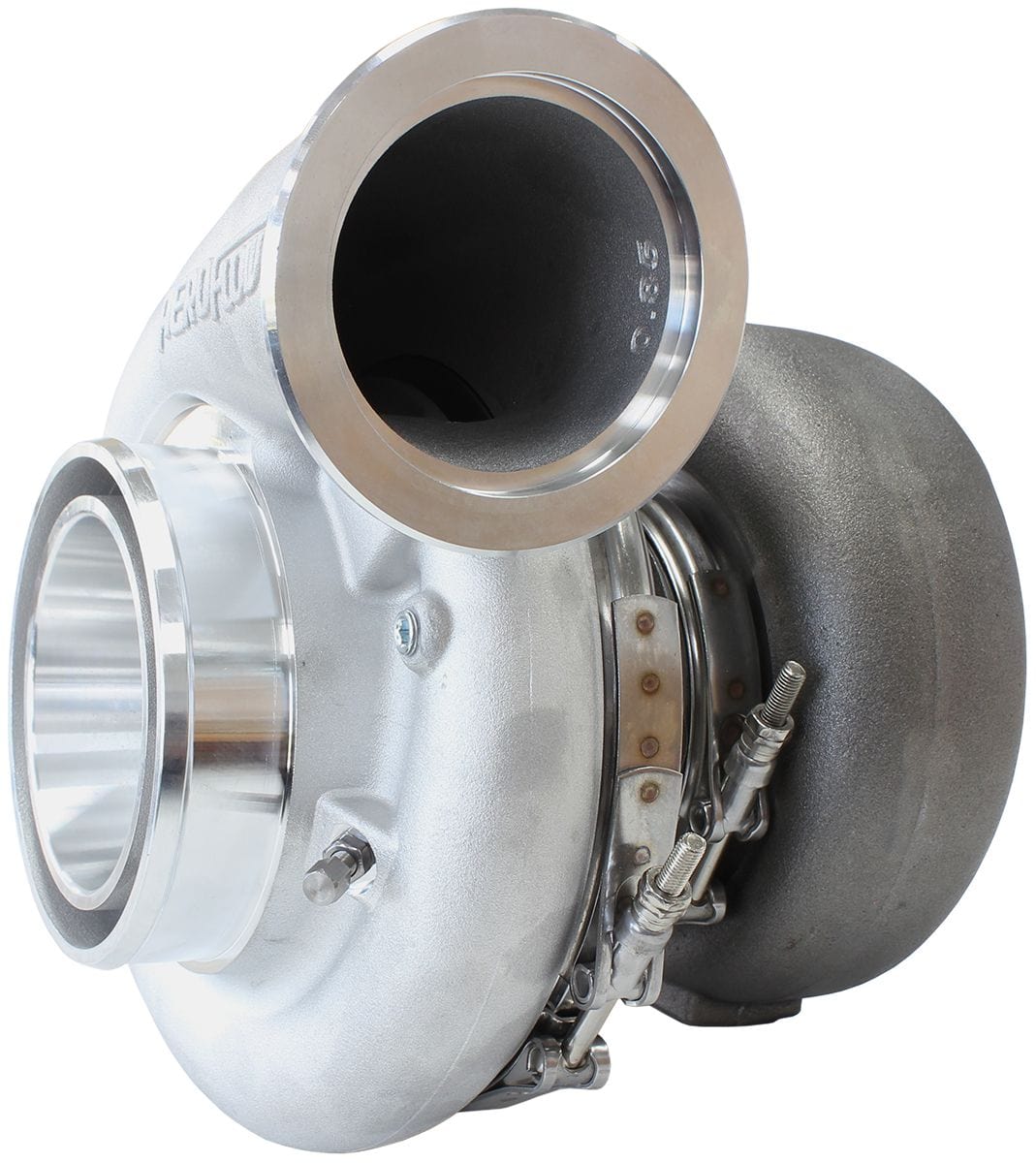

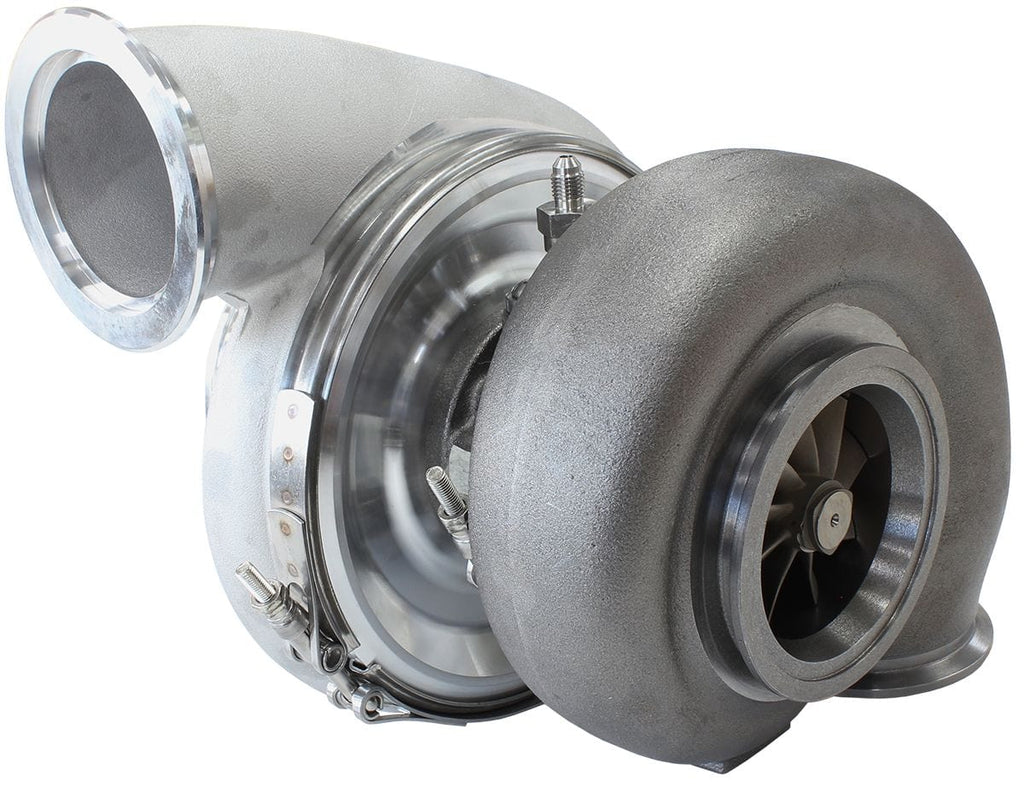

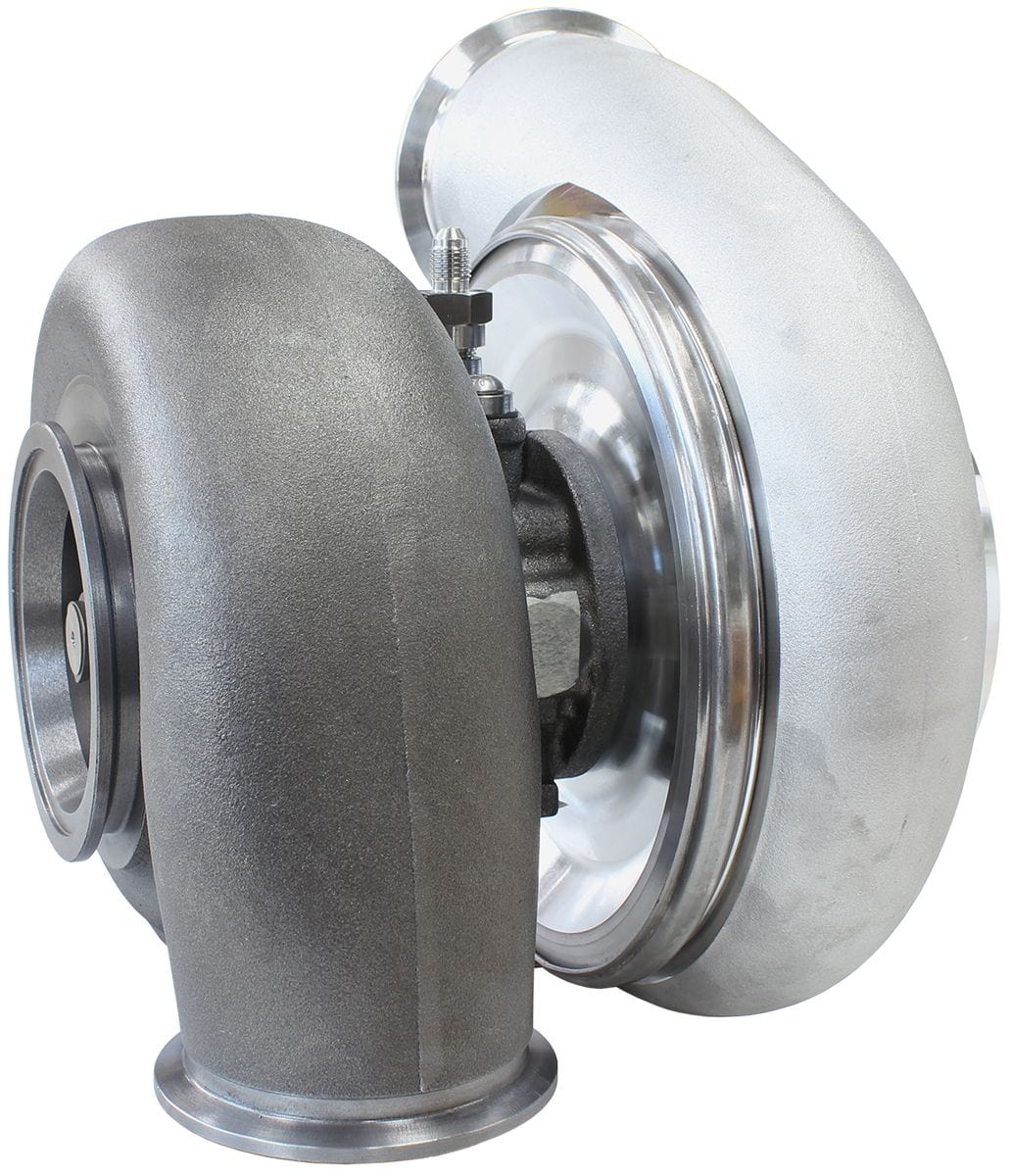

BOOSTED 7975 V-Band 1.15 Turbocharger 1450HP, Natural Cast Finish
External Wastegate, V-Band Inlet & Exhaust Flanges

BOOSTED 7975 V-Band Turbocharger Specifications

Recommended horsepower rating: 475-1450HP
Recommended engine displacement: 2.0L to 8.0L

- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 1/4" NPT to -4AN oil feed fitting with in-built restrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications
Inducer: 79mm
Exducer: 98mm
Extended Tip: 103mm
A/R: 0.85
Compressor Inlet: 5" Slip fit
Compressor Outlet: V-Band (AF8080-1009)

Turbine Specifications
Inducer: 82mm
Exducer: 75mm
A/R: 1.15
Turbine Inlet Flange: V-Band (AF8080-1019)
Turbine Outlet Flange: V-Band (AF8080-1020)

Wastegate
External wastegate
