Aeroflow 90° Low Profile -10ORB to 1/2" Barb AF959-08-10

AF959-08-10 - SLIMLINE -10ORB TO 1/2" BARB

Save $14.71

Aeroflow PerformanceSKU: AF959-08-10

Product: Blue Finish

Variant

Price:

$44.73 AUD $59.44 AUD

Quantity:

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

90° Low Profile-10ORB to 1/2" BarbBlue Finish
Brand: AEROFLOW
Part Number: AF959-08-10
Description:

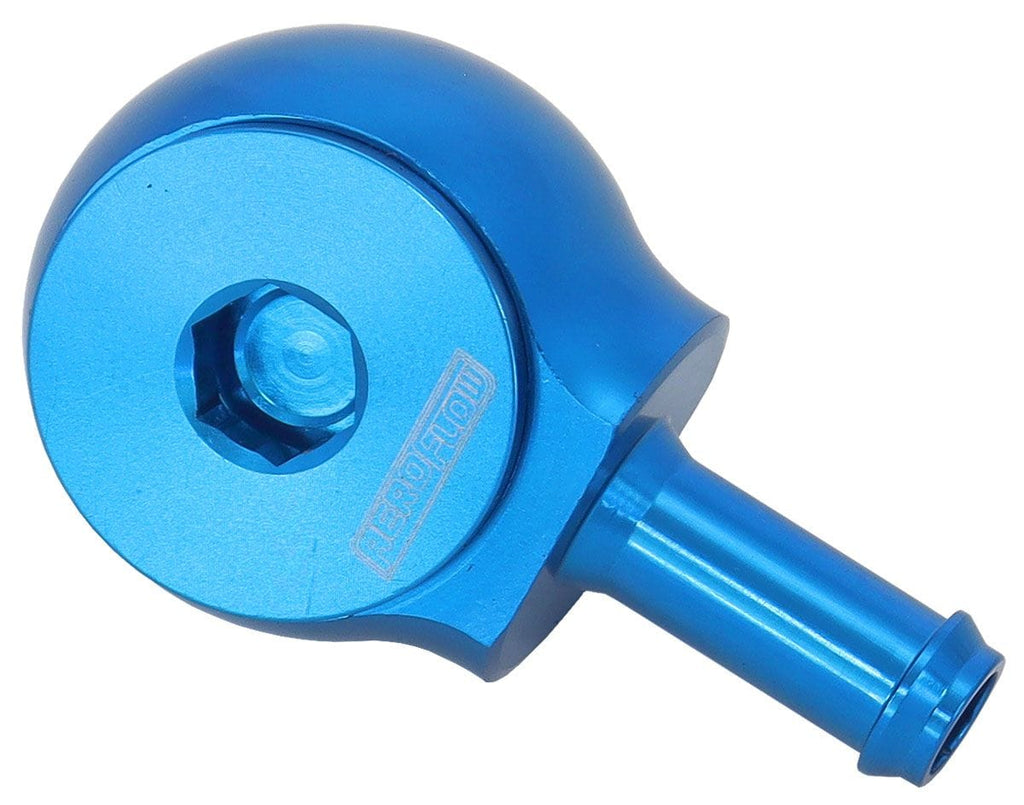

Low Profile 90 Degree -10ORB to 1/2" (12.70mm) Straight Barb.

Aeroflow have designed these low profile 90 degree ORB to barb adapters that are perfect for tight clearance applications. They swivel 360 degrees allowing you get the perfect desired position and are hi flow so not only are they low profile they do not restrict flow. Manufactured from 6061-T6 aerospace grade aluminium and available in Blue, Black and Silver anodised finishes. Supplied with Viton O-rings and available in straight and stepped sizing ranging from -6to -10ORB to various barb sizes.

Additional Specifications:

Dimensions :

Height From O-Ring - 26.60mm

OverallLength - 66.05mm

OverallWidth - 38mm
