Aeroflow Performance GM LS Cast Aluminium Standard Replacement Front Sump Oil Pan Aeroflow GM LS Cast Aluminium Standard Replacement Front Sump Oil Pan AF82-2305 SR

Roll over image to zoom in Click on image to zoom

Aeroflow GM LS Cast Aluminium Standard Replacement Front Sump Oil Pan AF82-2305

Save $151.10

Aeroflow PerformanceSKU: AF82-2305

Product: GM LS Cast Aluminium Standard Replacement Front Sump Oil Pan

Variant

Price:

$682.11 AUD $833.21 AUD

Quantity:

Instructions

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

GM LS Cast Aluminium Standard Replacement Front Sump Oil PanSuit GM LS Series, Holden Commodore VZ OEM Style
Brand: AEROFLOW
Part Number: AF82-2305
Description:

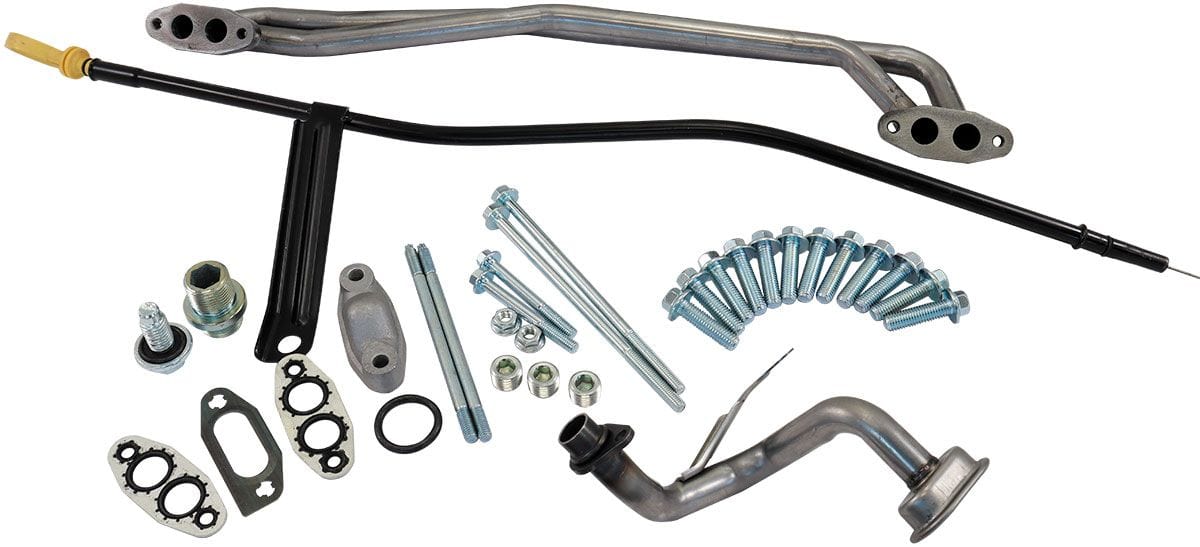

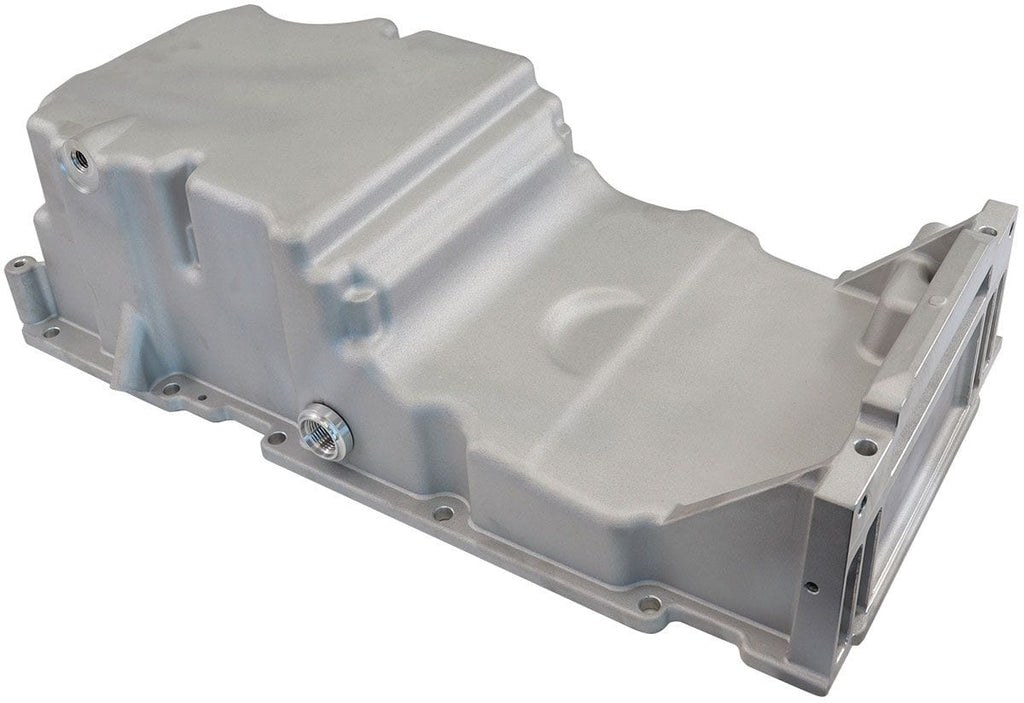

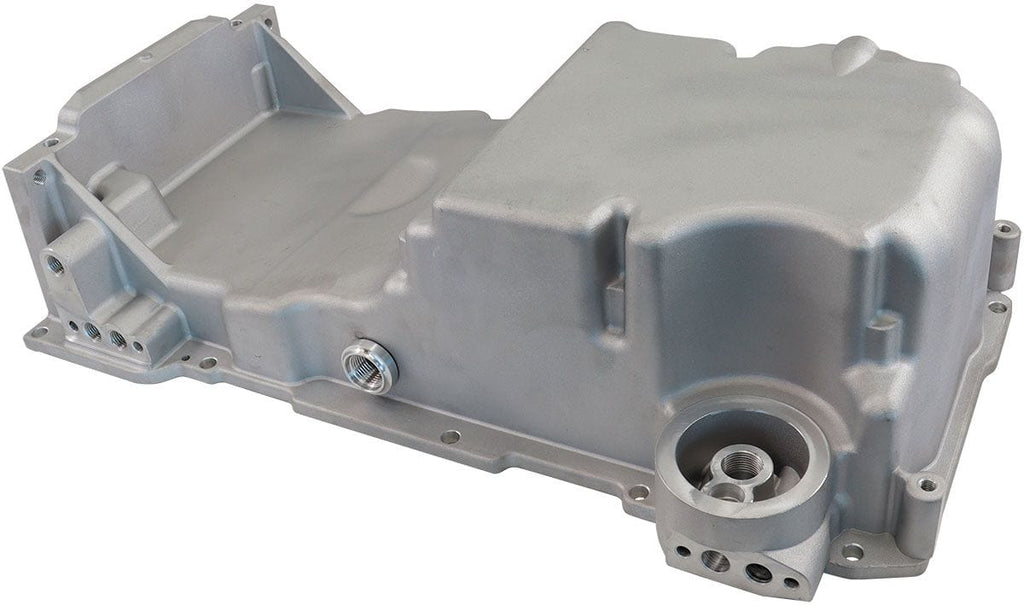

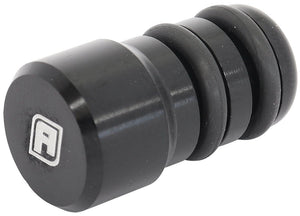

This Aeroflow Performance oil pan kit is designed to replace your rusted or damagedOE oil pan with quality, reliable reproduction style parts. Keep the oil, your engine's lifeblood, where it belongs. This front sump design oil pan is a direct replacement fit for Holden Commodore VT-VZ or GM part number GM12640748. This late model VZ style sump is often used for early Commodore, Nissan 180sx, Toyota 86 and Subaru BRZ LS engine conversions. It is also compatible with all LS Series engines including the LSA. Later VE/VF engines will be required to use engine block oil dipstick tube plug AF64-2196 (sold separately). The Cast aluminium sump comes with oil pick up, oil pan gasket, oil cooler block off, mounting bolts and dipstick and tube.
