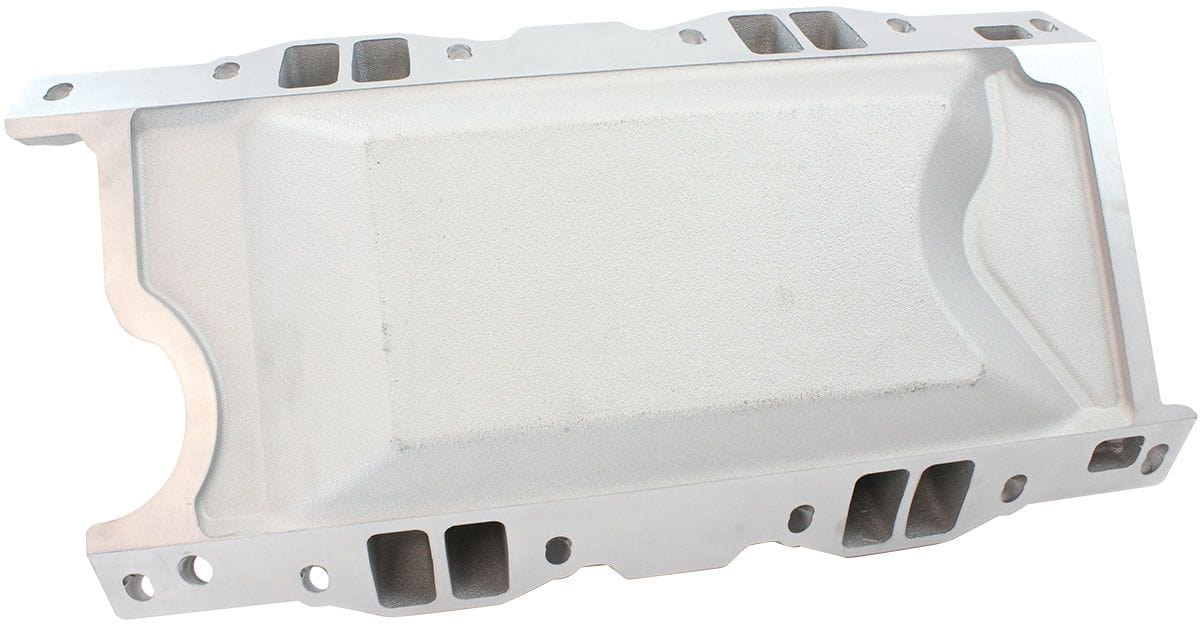

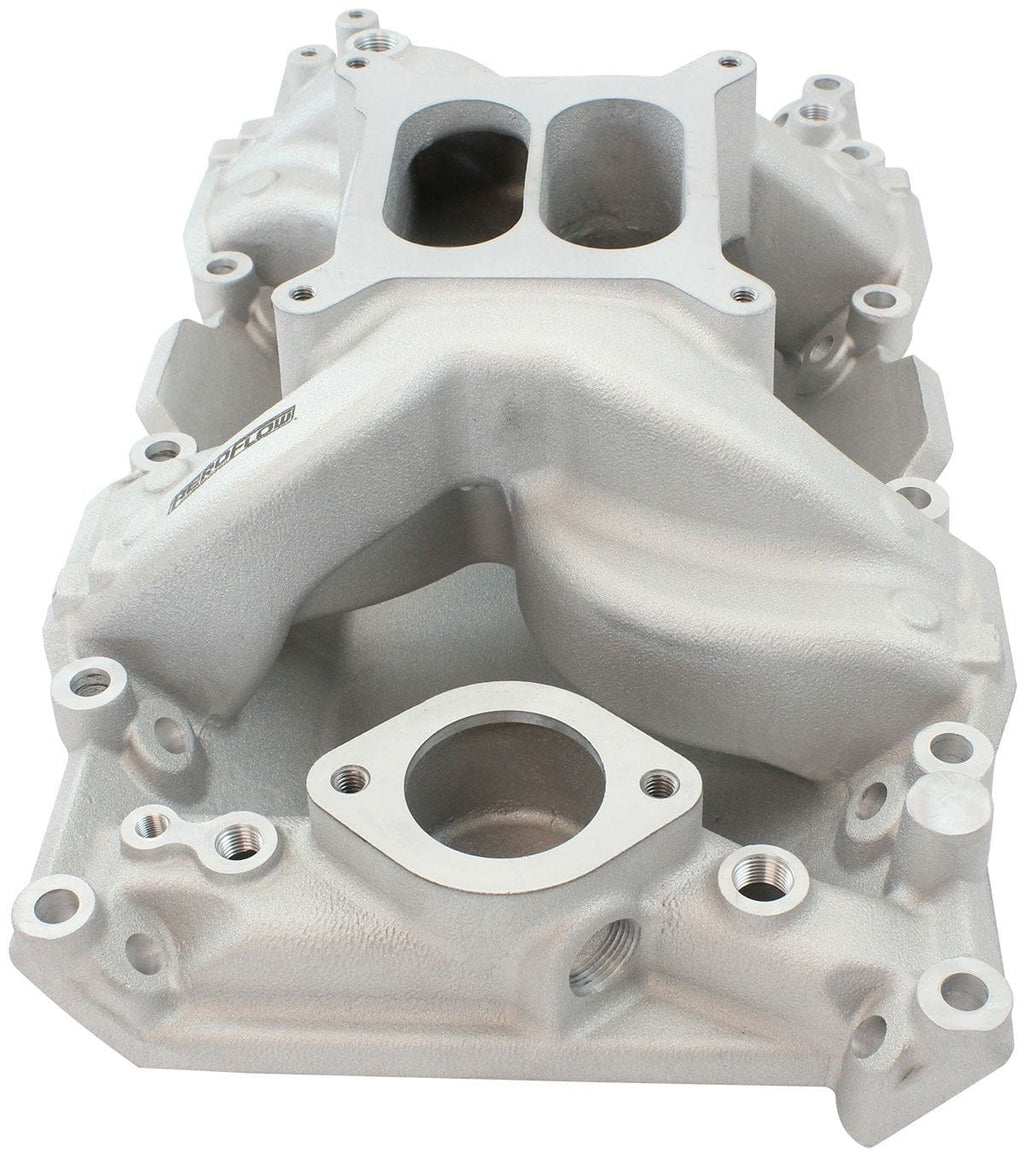

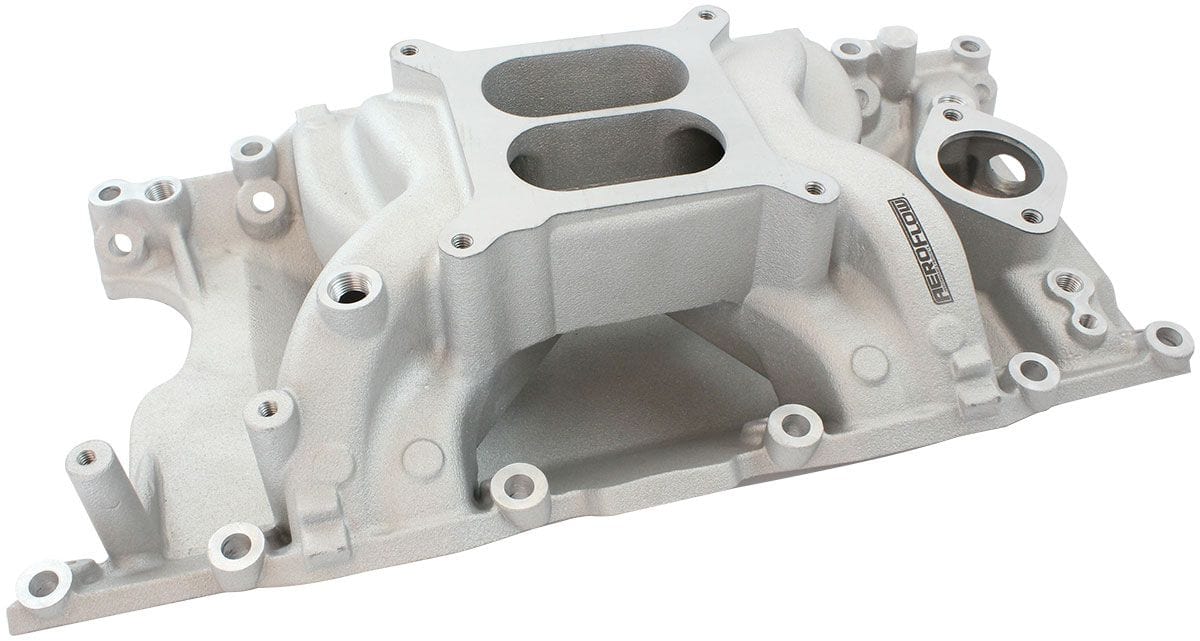

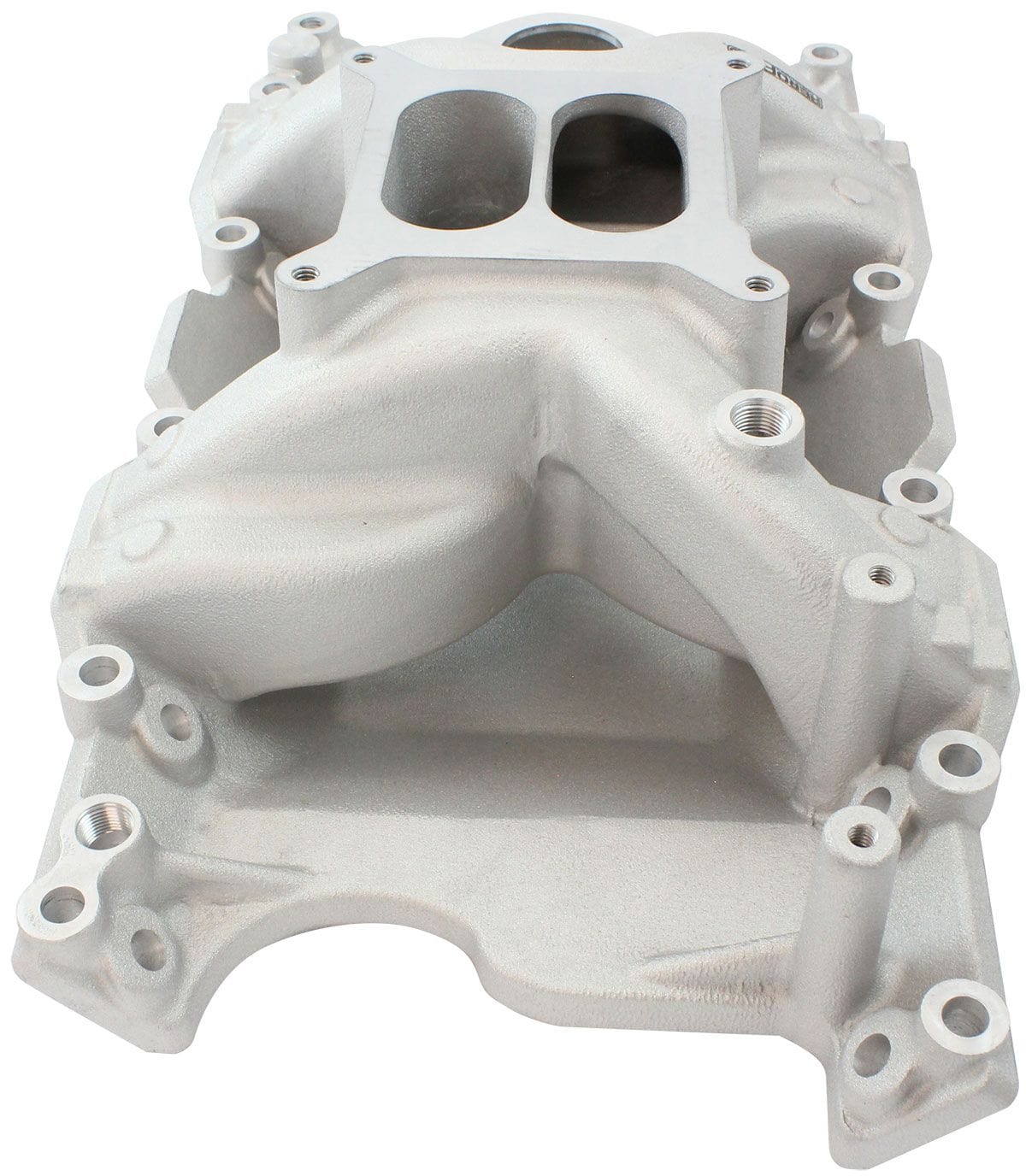

Small Block Chrysler Air Gap Dual Plane Intake Manifold, Natural Cast Finish1500 - 6500 RPM, Square Bore Carburettor Pad, Non-EGRBrand: AEROFLOWPart Number: AF6010-3005Description: Get the maximum power from your carburetted engine with this Air Gap Small Block Chrysler carburetted cast intake manifold. This dual-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket square-bore carburettors with either manual or electric choke options available on today’smarket. Fits 318, 340 and 360 cubic inch small block Chrysler engines operating from 1500 to 6500 rpm range. In most cases, these manifoldsaccept late model water necks,air conditioning, alternator and H.E.I. ignition systems, NOTE 1979 and later rotary A/Ccompressor will not clear water neck.
Intake Runners should be port matchedto your cylinder heads for optimal performance.
• Fits Small Block Chrysler 318-340-360 Cubic Inch Engines.
•Small Block Chrysler 318 360. Dual bolt pattern for use with 1967-1991 318, 340 & 360, and 1992-2003 318 & 360 Magnum V8 Engines. Press in block off plugs supplied for unused ports.
• Dual Plane Configuration.
• RPM operating range - 1500 to 6500.
• Natural Cast Finish.
Additional Specifications: Manifold Specifications
- Square bore carburettor pad
- Overall height (Carb pad to bottom of manifold) is 164mm (Ensure to Check Bonnet Clearance)
- Port Size: 1.10" x 2.17"
- Intake manifold gasket, Fel Pro 1213.
- 5/16-18" carburettor studs (x4)
- 5/16-18" Mounting Hole (x1)
- 1/8" NPT port(x1) with 1 port plug included
- 1/4" NPT port (x1) with port plug included
- 3/8" NPT port (x1) with 1 port plug included
- 3/4" NPT port (x1)
- 1 x Cruise Control Bracket

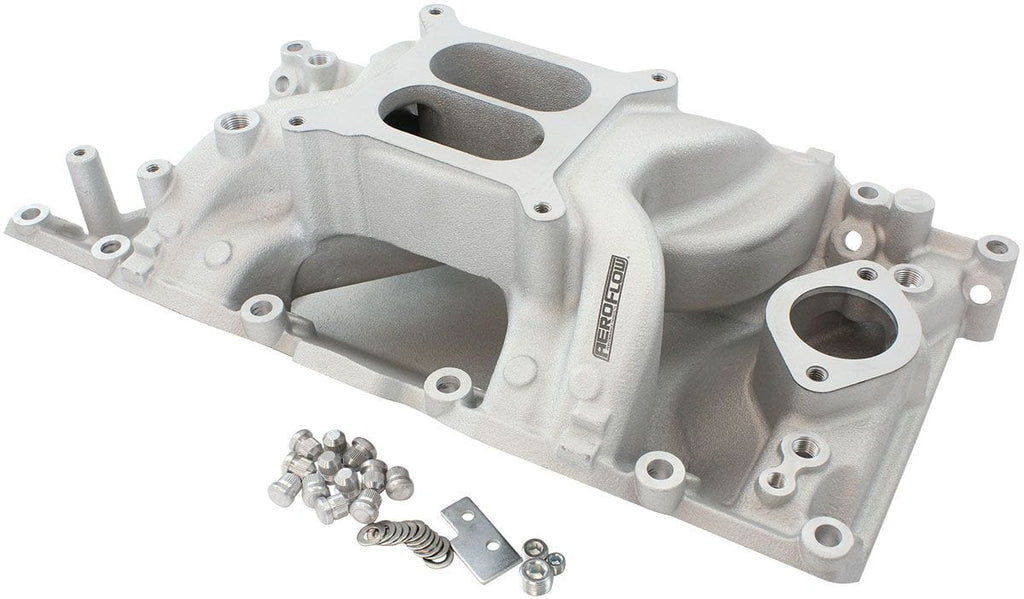

- 12 x Press in intake manifold bolt hole plugs (for dual pattern)
Important Information: Small Block Chrysler 318 360. Dual bolt pattern for usewith 1967-1991 318, 340 & 360, and 1992-2003 318 & 360 Magnum V8 Engines. Press in block off plugs supplied for unused ports.
