Aeroflow Ford 9" Cut To Fit Axle Kit - 31-Spline AF5079-1006

Save $16.96

Aeroflow PerformanceSKU: AF5079-1006

Product: Ford 9" Cut To Fit Axle Kit - 31-Spline

Variant

Price:

$322.24 AUD $339.20 AUD

Quantity:

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Ford 9" Cut To Fit Axle Kit - 31-Spline23" Length, 4" Spline Length With 5 x 4.50" & 4.750" Bolt Circle
Brand: AEROFLOW
Part Number: AF5079-1006
Description:

The Aeroflow Performance Ford 9” cut to fit axlesare perfect for entry level users and will allow you to build your own custom width rear end easily. They are an induction heat treated forged 4140 steel construction axle with a natural finish and are SOLD AS ONE AXLE only.

Axle length is measured from the flange to the end of the splines. Drilled for 5 on 4-1/2" and 5 on 4-3/4" wheel bolt patterns using 0.610" (15.49mm) knurl diameter for wheel studs which are included.

These axles use the new style big bearing ends on it which measures 3.150" (80mm) with a 2.5" (63.50mm) offset. The hub pilot (centre of the axle flange) measures 3.055" (77.59mm). The O.D. of the axle flange measures 5.93" (150.62mm).

Axle Core hardness: HRC 24-28 and Axle Surface hardness: Above HRC 52.

The 31 spline is available in lengths of 23"(584.20mm) 26" (660.40mm), 29" (736.90mm), 32" (812.80mm)all with the spline length of 4" (101.60mm).

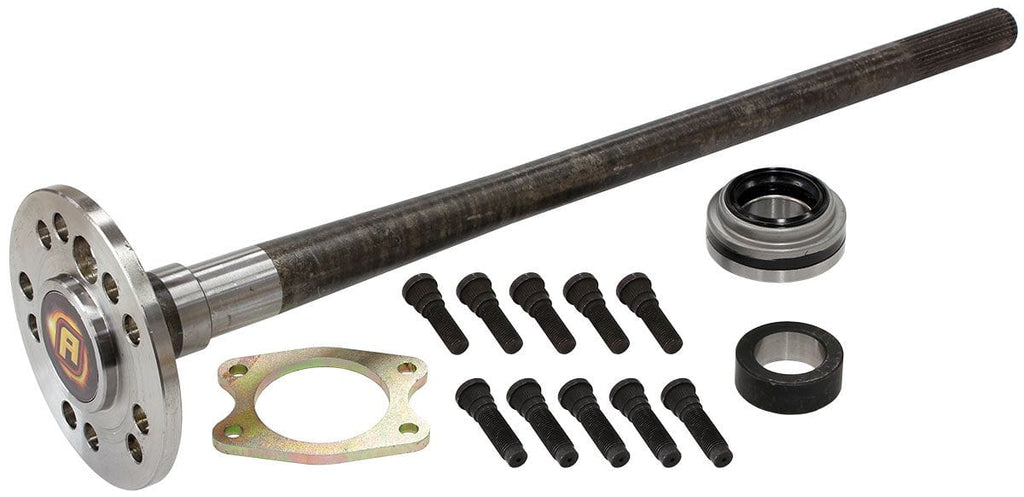

Each axle kit contains the following:

1 x Cut to Fit Axle

5 x 7/16” wheel studs

5 x 1/2” wheel studs

1 x Axle retaining plate

1 x Axle bearing kit

1 x Axle bearing collar.
