Aeroflow Performance -10AN ORB outlet, 3" Long, 51mm bolt centre, Black Finish Aeroflow Turbo Drain Adapter AF463-06L SR

Roll over image to zoom in Click on image to zoom

Aeroflow Turbo Drain Adapter AF463-06L

AF463-06L - TURBO DRAIN ADAPTER -10AN LONG

Save $19.64

Aeroflow PerformanceSKU: AF463-06L

Product: -10AN ORB outlet, 3" Long, 51mm bolt centre, Black Finish

Variant

Price:

$35.86 AUD $55.50 AUD

Quantity:

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

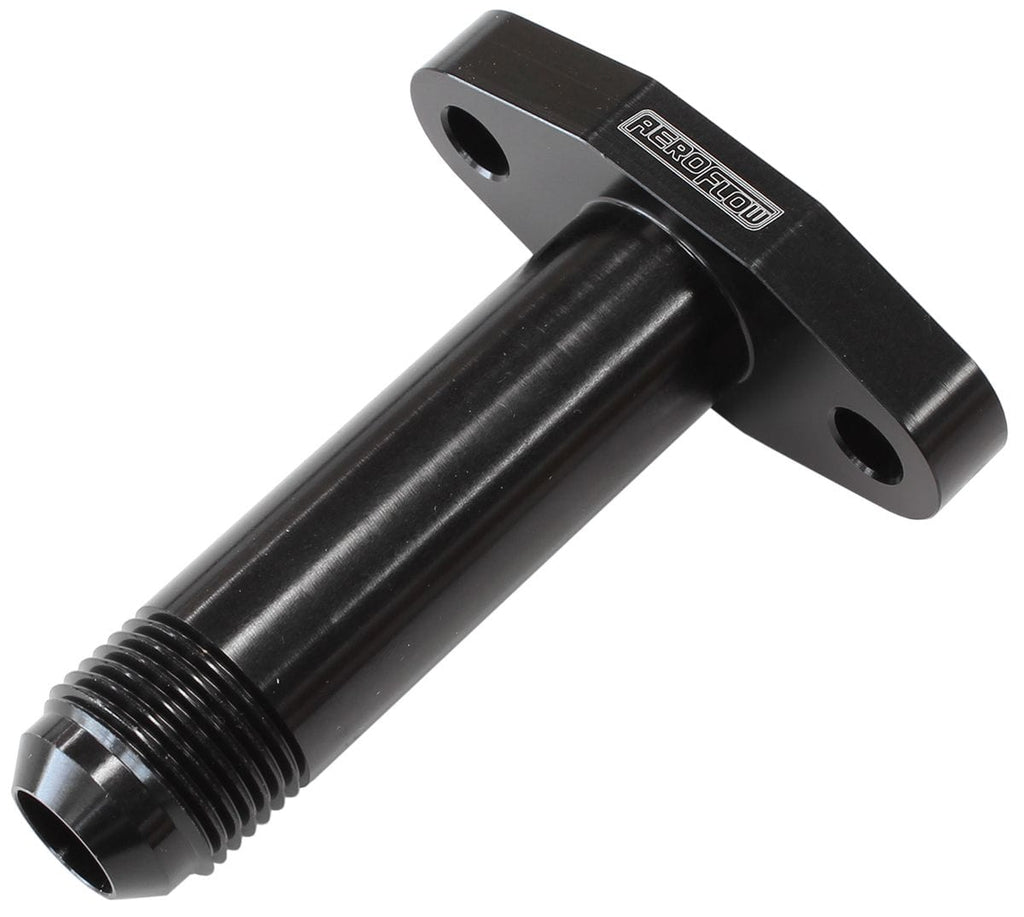

Turbo Drain Adapter-10AN ORB outlet, 3" Long, 51mm bolt centre, Black Finish
Brand: AEROFLOW
Part Number: AF463-06L
Description:

Turbo Oil Drain Adapter With O-Ring Seal.

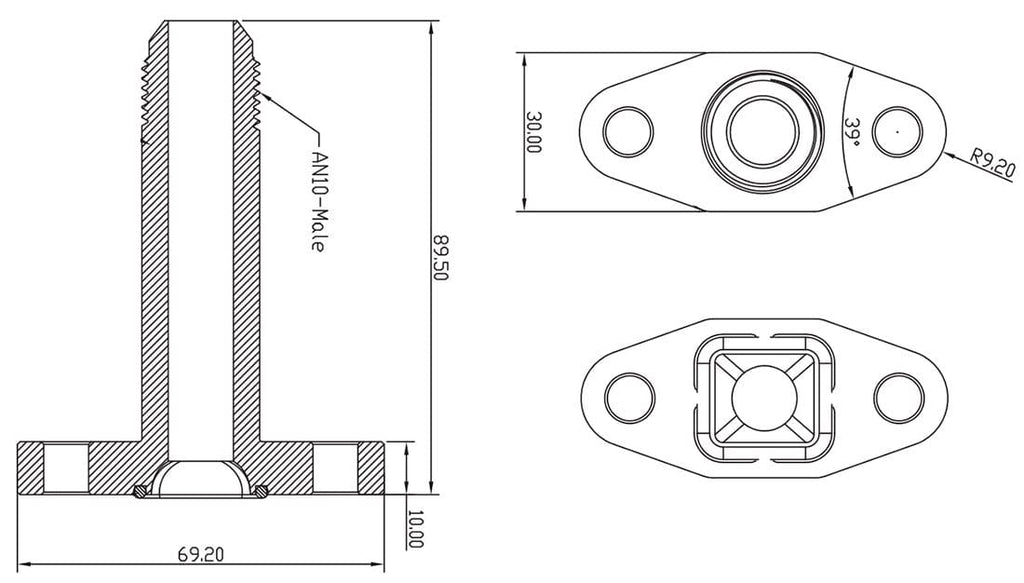

-10 AN male 3" (75mm) long tube with 50.8mm hole centres to suit turbos with 50.8mm bolt centres on core.

This selection of turbo drains options available from Aeroflow Performance will allow a large range custom plumbing application. For sufficient drainage of oil forboth bearing styles of turbochargers a -10AN or 5/8” hose is ideal. The oil outlet should follow the direction of gravity +/-45° when installed in the vehicle on level ground. It is recommended to avoid kinks or beyond 90-degree bends in the oil drain line and draining into the sump below. With heat surrounding the manifold and turbocharger a heat shield or sleeve is a great idea to prolong the lifeof the hose.
