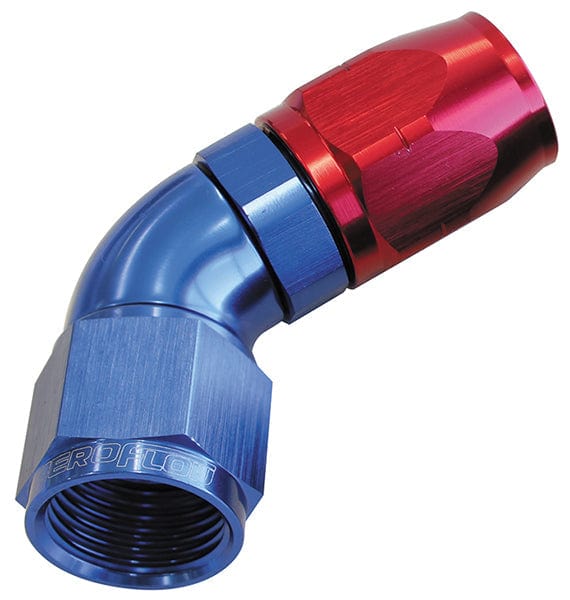

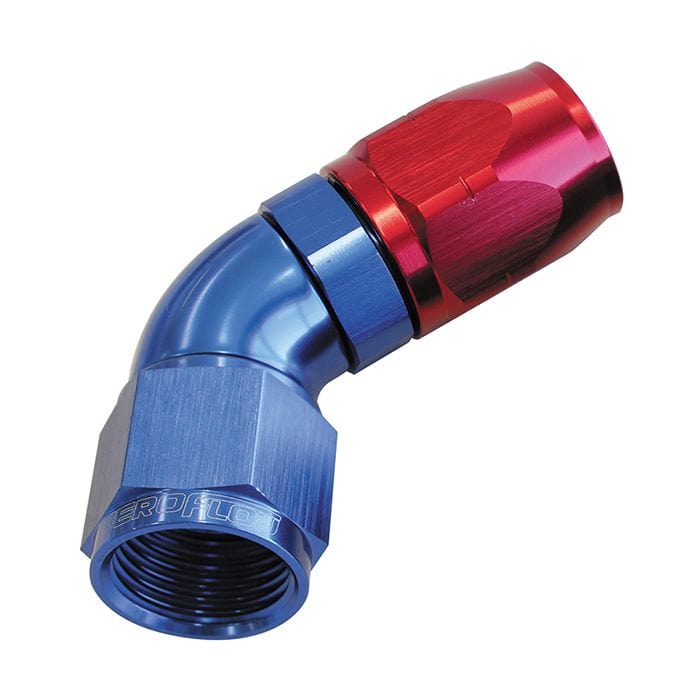

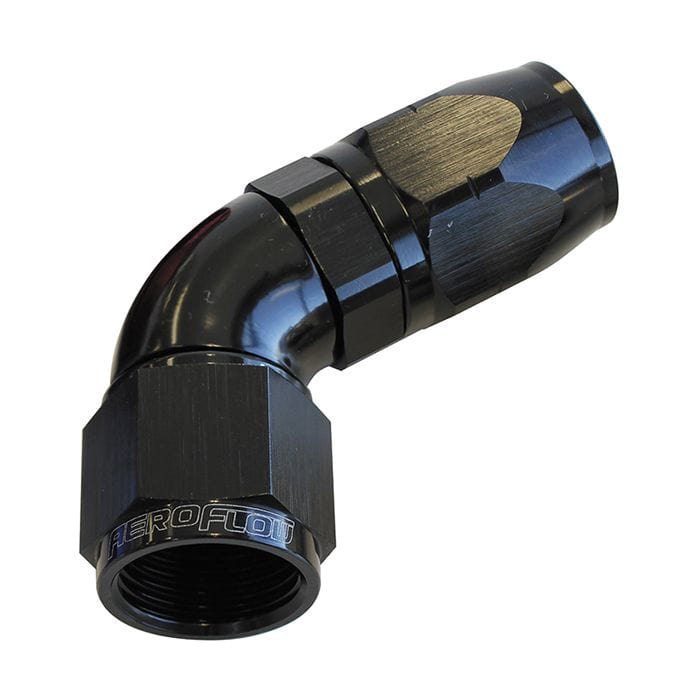

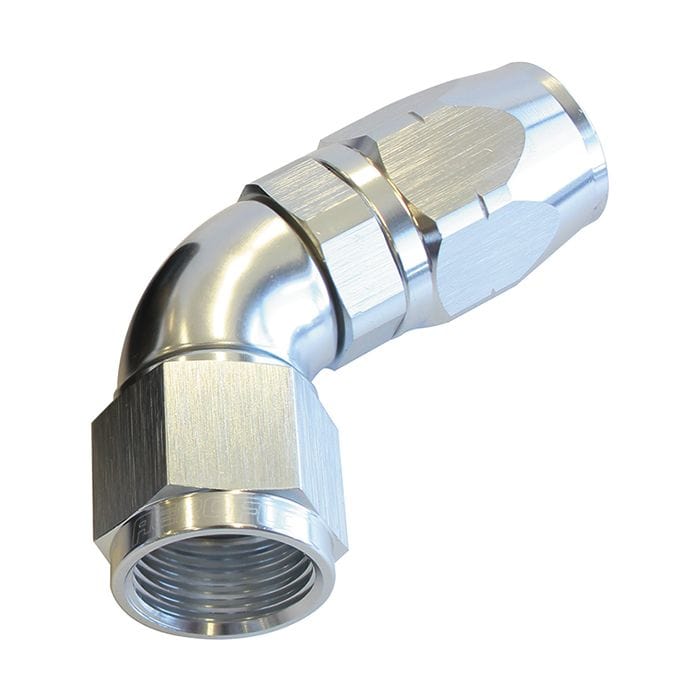

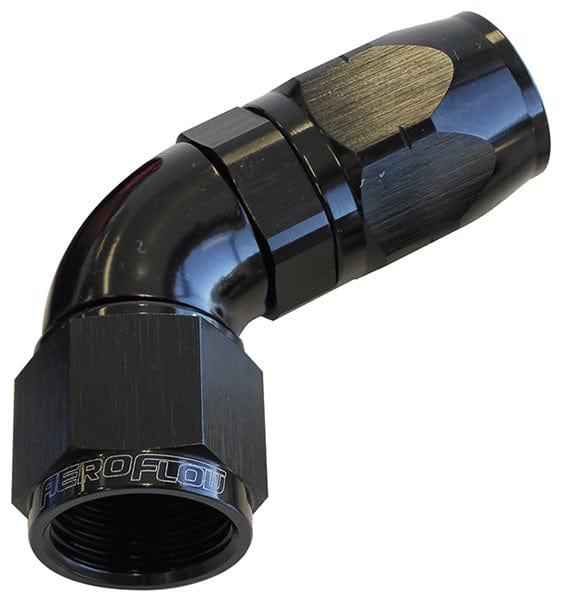

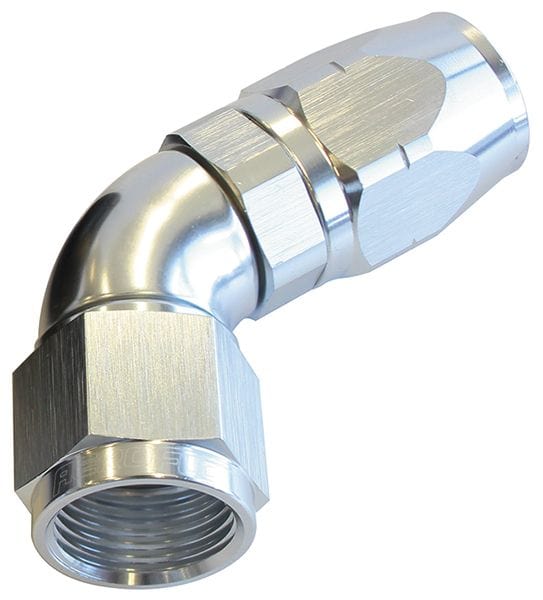

Aeroflow 550 Series Cutter One-Piece Full Flow Swivel 60° Hose End
Available in -4AN to -16AN, Black, Red/Blue or Silver Finish
Brand: Aeroflow
Part Number: AF558 series
Description:
550 Series Cutter One-Piece Full Flow Swivel 60° Hose End AF558. Suits 100 & 450 Series Hose
Aeroflow's 550 Series cutter fittings are a CNC machined one piece fitting which provide uninterrupted flow. The billet cutter end separates the wire braid for maximum hose retention, sealing the hose for a second time which provides a greater sealing area for strength and easier assembly. The tight mandrel bent radius body has superior wall thickness and a swivel head allowing for easy adjustment. Aeroflow's 550 series fittings are the choice of professionals for use in fuel systems, cooling systems, vacuum applications and oil systems. Compatible hose: 100 Series Stainless Steel braid and 450 Series Lightweight Nylon braid.
Note: Not compatible for power steering and automatic transmission line applications. Hose ends are hard anodised (excluding Silver finish).
Available Options
| AN Size |
Colour |
Part Number |
| -4AN |
Black |
AF558-04BLK |
| -4AN |
Red/Blue |
AF558-04 |
| -4AN |
Silver |
AF558-04S |
| -6AN |
Black |
AF558-06BLK |
| -6AN |
Red/Blue |
AF558-06 |
| -6AN |
Silver |
AF558-06S |
| -8AN |
Black |
AF558-08BLK |
| -8AN |
Red/Blue |
AF558-08 |
| -8AN |
Silver |
AF558-08S |
| -10AN |
Black |
AF558-10S |
| -10AN |
Red/Blue |
AF558-10 |
| -10AN |
Silver |
AF558-10BLK |
| -12AN |
Black |
AF558-12BLK |
| -12AN |
Red/Blue |
AF558-12 |
| -12AN |
Silver |
AF558-12S |
| -16AN |
Black |
AF558-16BLK |
| -16AN |
Red/Blue |
AF558-16 |
| -16AN |
Silver |
AF558-16S |
