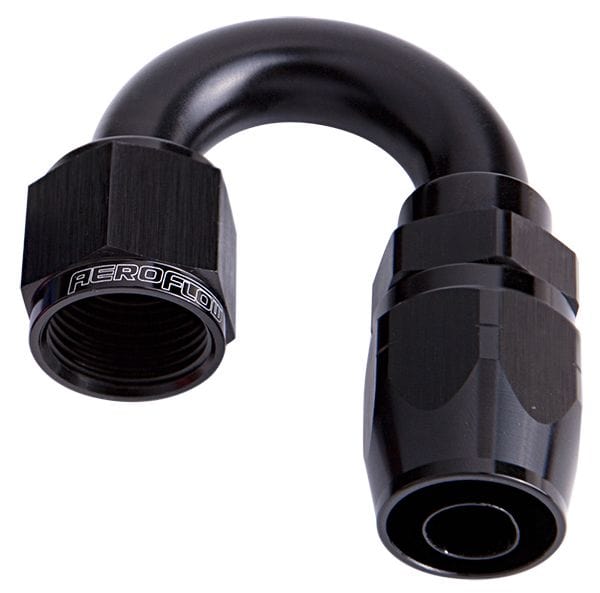

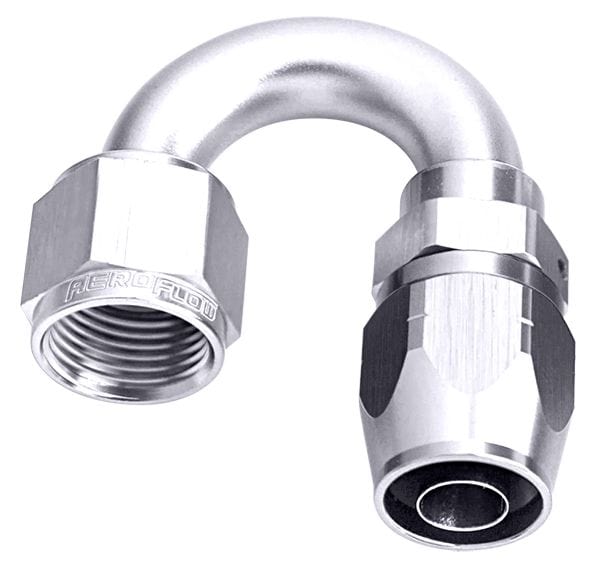

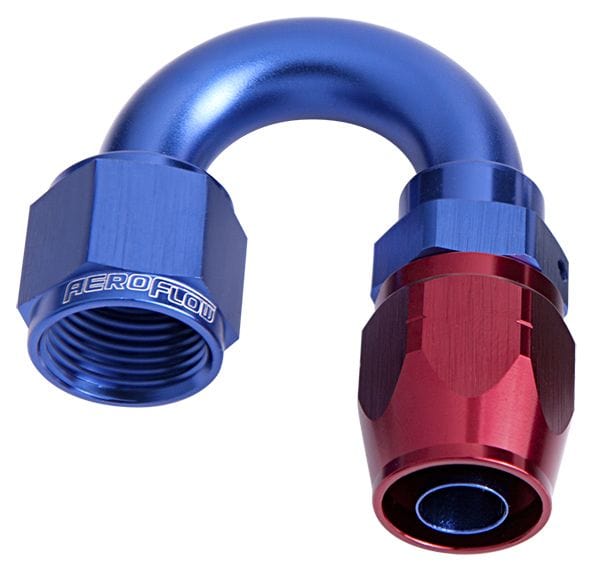

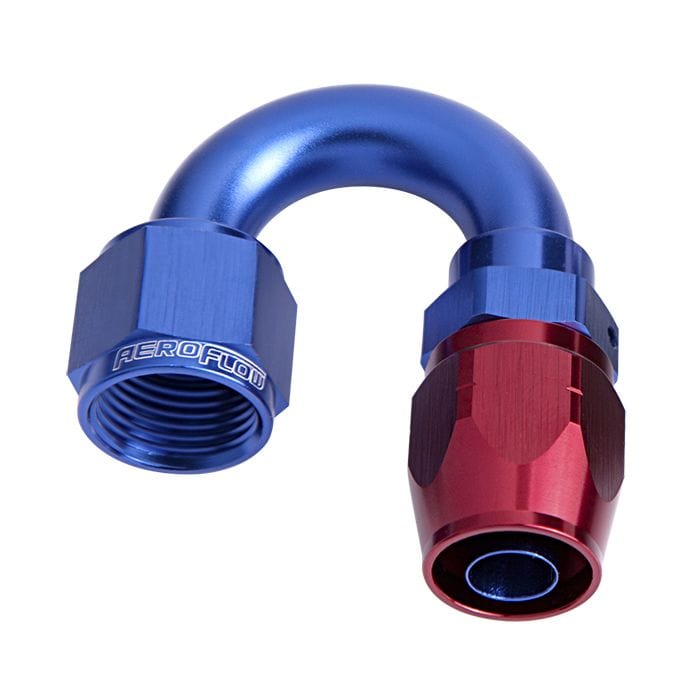

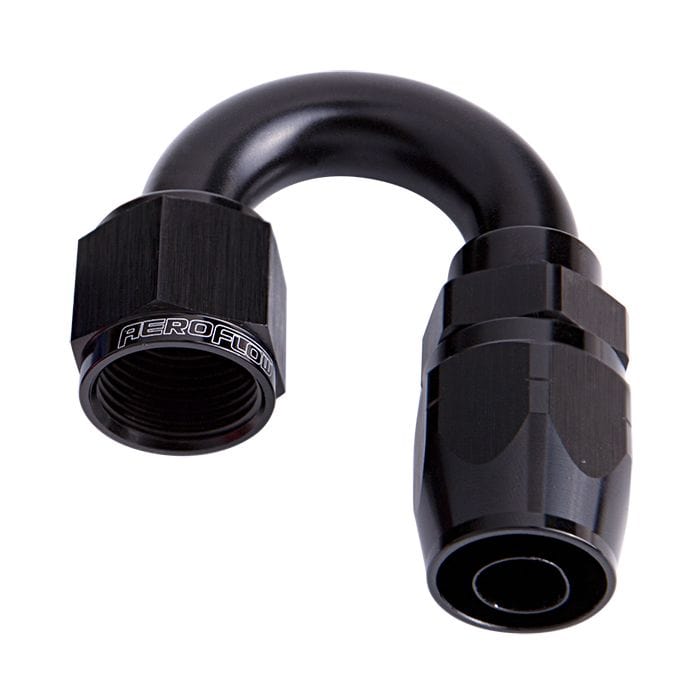

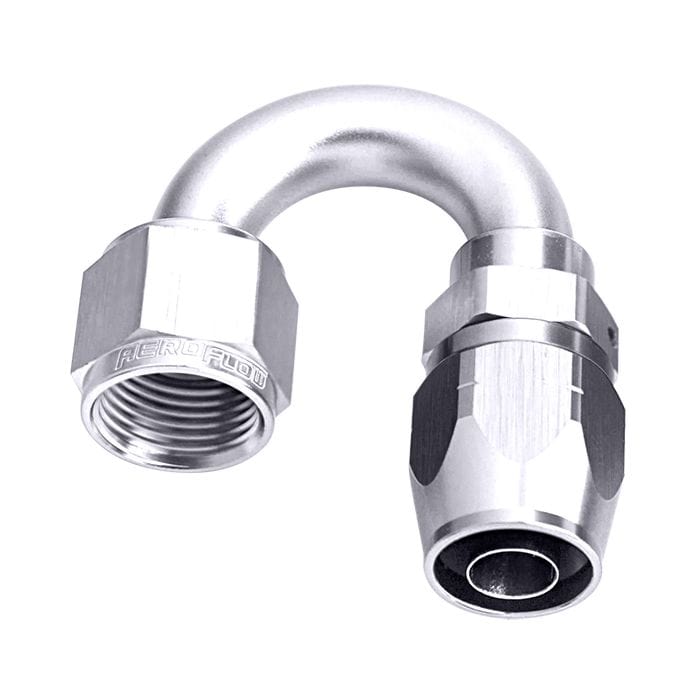

Aeroflow 500 Series Cutter Swivel 180° Hose End. Suits 100 & 450 Series Hose
Available in -4AN to -20AN, Black, Red/Blue or Silver Finish
Brand: Aeroflow
Part Number: AF506 series
Description:
500 Series Cutter Swivel 180° Hose End. Suits 100 & 450 Series Hose
Aeroflow's 500 series cutter fittings are a braised full flow fitting. The billet cutter end separates the wire braid for maximum hose retention, sealing the hose for a second time, which provides a greater sealing area for strength and easier assembly. All angles are mandrel bent, eliminating sharp changes in direction for optimum flow. Aeroflow's 500 Series fittings have a swivel head to allow for easy adjustment making them an excellent choice for the automotive enthusiast for use in fuel systems, cooling systems, vacuum applications and oil systems. Compatible hose: 100 Series S/S braid, 450 Series Lightweight Nylon braid.
Note: Not compatible for power steering and automatic transmission line applications. Hose ends are hard anodised (excluding Silver finish).
Available Options
| AN Size |
Colour |
Part Number |
| -4AN |
Black |
AF506-04BLK |
| -4AN |
Red/Blue |
AF506-04 |
| -4AN |
Silver |
AF506-04S |
| -6AN |
Black |
AF506-06BLK |
| -6AN |
Red/Blue |
AF506-06 |
| -6AN |
Silver |
AF506-06S |
| -8AN |
Black |
AF506-08BLK |
| -8AN |
Red/Blue |
AF506-08 |
| -8AN |
Silver |
AF506-08S |
| -10AN |
Black |
AF506-10BLK |
| -10AN |
Red/Blue |
AF506-10 |
| -10AN |
Silver |
AF506-10S |
| -12AN |
Black |
AF506-12BLK |
| -12AN |
Red/Blue |
AF506-12 |
| -12AN |
Silver |
AF506-12S |
| -16AN |
Black |
AF506-16BLK |
| -16AN |
Red/Blue |
AF506-16 |
| -16AN |
Silver |
AF506-16S |
| -20AN |
Black |
AF506-20BLK |
| -20AN |
Red/Blue |
AF506-20 |
| -20AN |
Silver |
AF506-20S |
