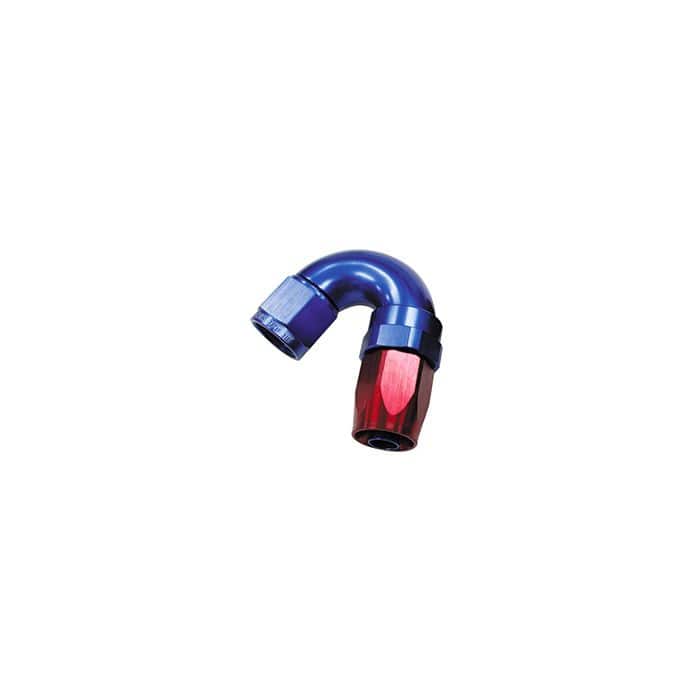

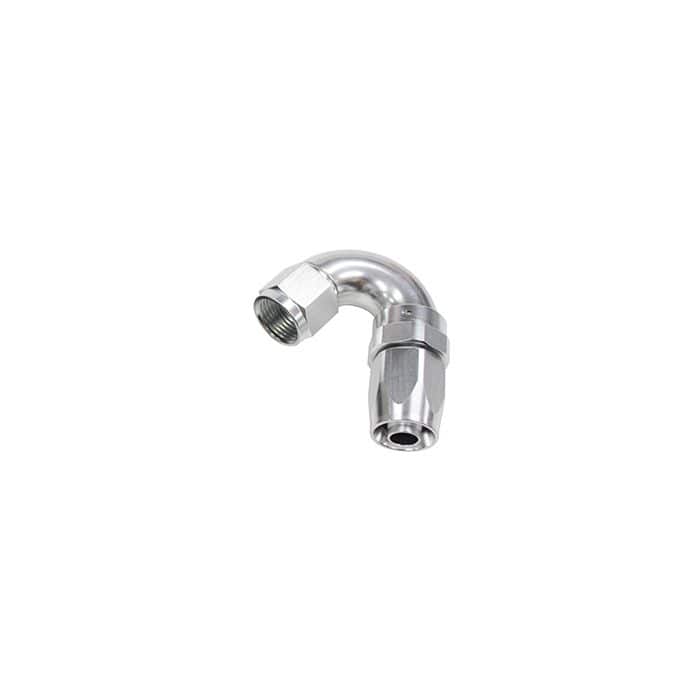

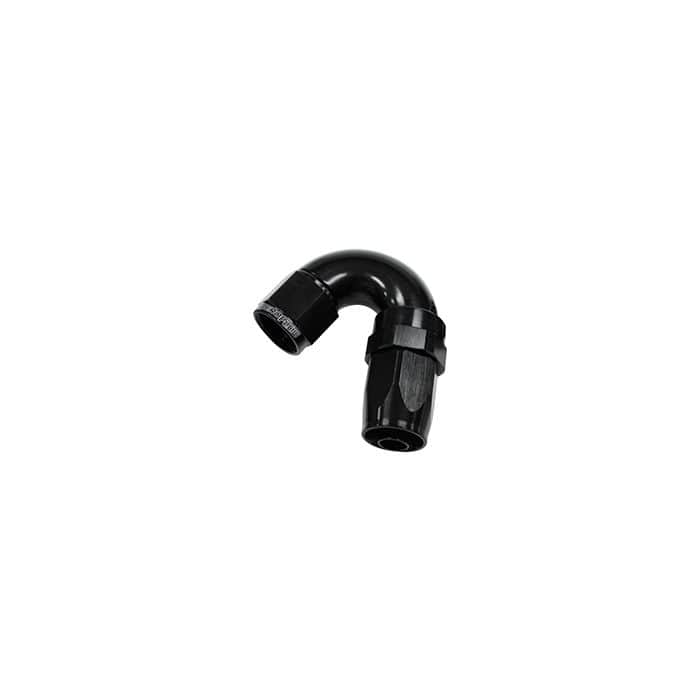

Aeroflow 150 Series Taper One-Piece Full Flow Swivel 150° Hose End
Available in -4AN to -16AN, Black, Red/Blue or Silver Finish
Brand: Aeroflow
Part Number: AF155 series
Description:
150 Series Taper One-Piece Full Flow Swivel 150° Hose End AF155. Suit 100 & 450 Series Hose
Aeroflow's 150 Series Taper fittings are a CNC machined one piece fitting which provide uninterrupted flow. The taper design provides straight through connection with easy alignment. Upon assembly a tube end compresses the hose into a purpose designed socket allowing for a leak free fitting. The tight mandrel bent radius body has superior wall thickness and a swivel head allowing 360° rotation to allow for easy adjustment. Aeroflow's 150 series fittings are a must for any serious racer for use in fuel systems, cooling systems, vacuum applications and oil systems. Compatible hose: 100 Series Stainless Steel braid and 450 Series Lightweight Nylon braid.
Note: Not compatible for power steering and automatic transmission line applications. Hose ends are hard anodised (excluding Silver finish).
Available Options
| AN Size |
Colour |
Part Number |
| -4AN |
Black |
AF155-04BLK |
| -4AN |
Red/Blue |
AF155-04 |
| -4AN |
Silver |
AF155-04S |
| -6AN |
Black |
AF155-06BLK |
| -6AN |
Red/Blue |
AF155-06 |
| -6AN |
Silver |
AF155-06S |
| -8AN |
Black |
AF155-08BLK |
| -8AN |
Red/Blue |
AF155-08 |
| -8AN |
Silver |
AF155-08S |
| -10AN |
Black |
AF155-10BLK |
| -10AN |
Red/Blue |
AF155-10 |
| -10AN |
Silver |
AF155-10S |
| -12AN |
Black |
AF155-12BLK |
| -12AN |
Red/Blue |
AF155-12 |
| -12AN |
Silver |
AF155-12S |
| -16AN |
Black |
AF155-16BLK |
| -16AN |
Red/Blue |
AF155-16 |
| -16AN |
Silver |
AF155-16S |
