Link ECU CAN Keypad 12 button
Link CAN Keypad 12 button (2x6)
Brand: Link ECU
Part Number: 101-0239
Description:

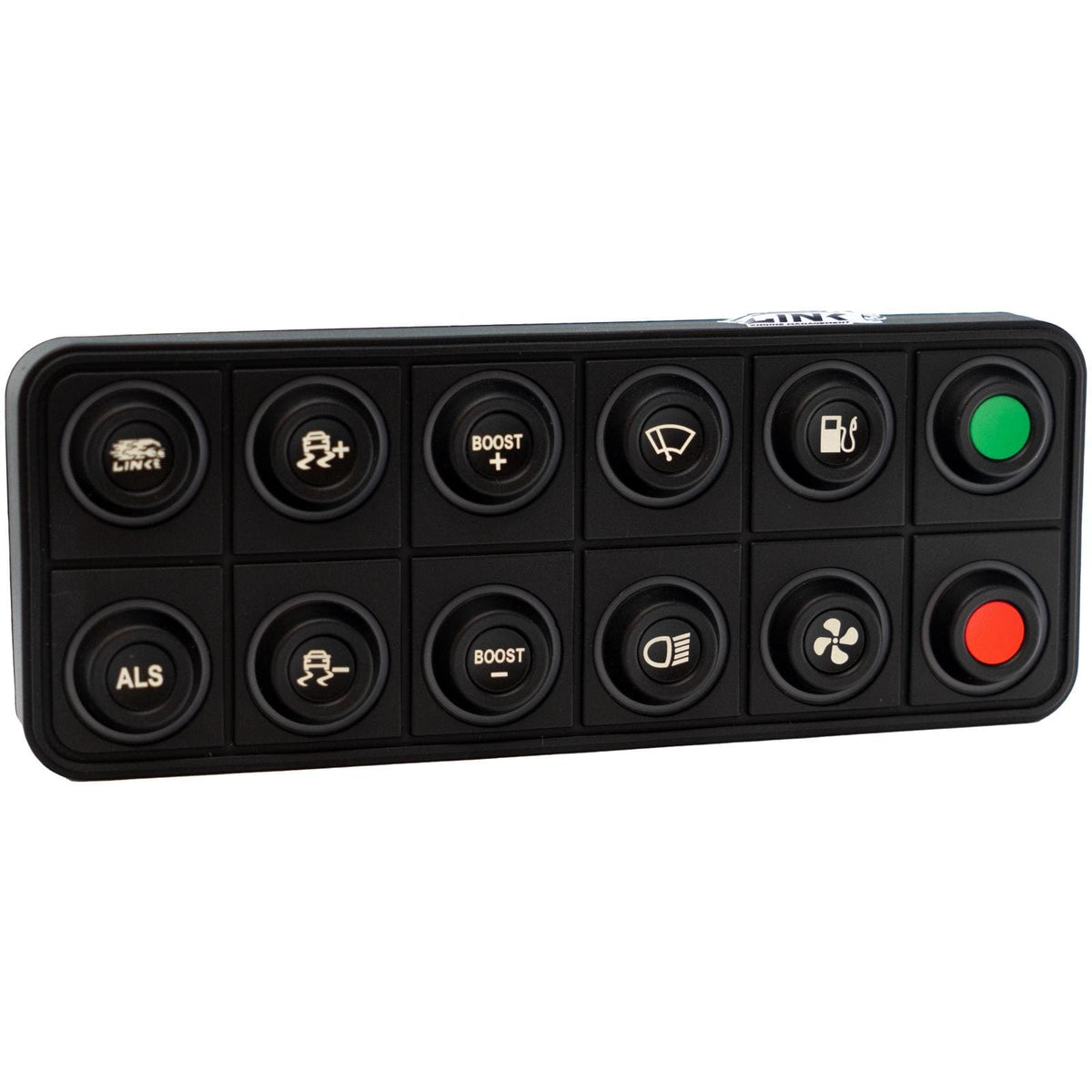

Link 12 button CAN Keypad with interchangeable 15mm inserts (sold separately).
Custom button inserts and configurable RGB indicator rings per button allow for extremely flexible set-ups. The keypad is designed for ultimate reliability - IP67/IP69K water and dust resistant, -40 to +70 operating temperature range, UV 400hrs, salt spray resistant and switches rated to 3 million operations. Can be installed both inside and outside, perfect for street, track and off-road use.
Features
- CAN Configurable with G4X PC Link

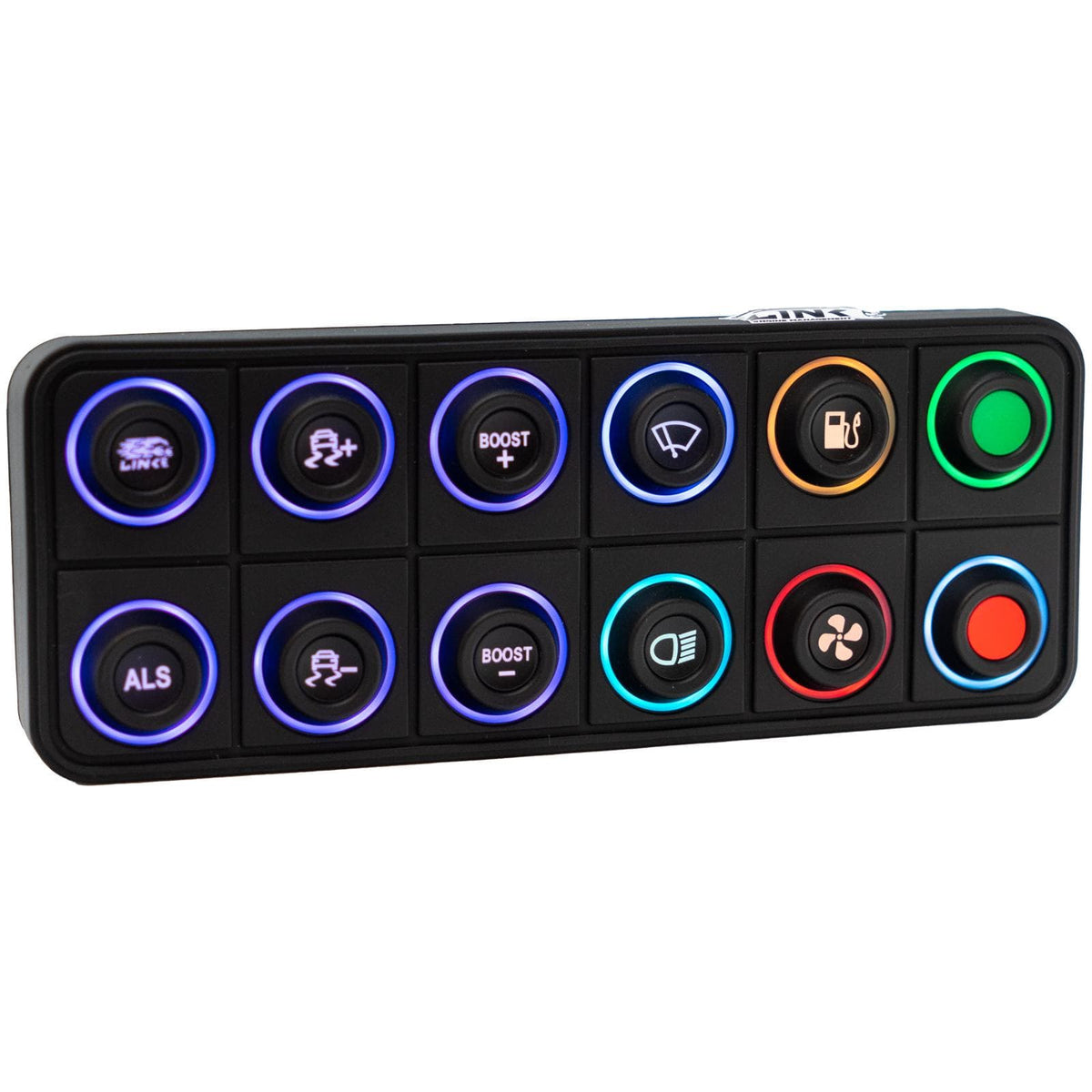

- Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.
- Customizable Button Inserts
- The replacement system for individual inserts makes modifying the keypad layout simple and economical.
- IP67/IP69K Waterproof rating
- Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs.
Suits
- Compatible with all G4X and G5 ECUs. Built-in support from G4X PC Link vers 6.22 onwards
What's in the Box
- Keypad Help Manual Card
- CAN Keypad Insert - Link
- Blink CAN Keypad 12 position + DTM4
- Link sticker - Right facing - Clear Gloss - Rectangle 150x72
- Deutsch 4-way Connector Kit
Specifications
-
Highlights: Switch Life: 3 million operations; CANopen Node ID: 0x15 (21); Default Baud Rate: 1000kbit/s; Ingress protection Rating: IP67/IP69K; Chemical Resistance: Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid; UV Protection: UVB 400 hours
-
Product Dimensions: 18x7x4.5cm
-
Product Weight: 210g
-
Electrical: Operating Voltage Range: 8-32V; Maximum Input Voltage: 32V; Maximum Continuous Current Draw: <50mA
-
Misc.: Mounting Stud Gap (Centre to Centre) 136.14mm; Nuts thread: #10-32; Maximum torque: 0.8Nm
-
Connector: TE Connectivity Deutsch DTM 4-pin (101-0156); DTM4 Connector for CAN and Power; Black = Ground; Red = Power; White = CAN High; Blue = CAN Low
Notes
- Keypad ships with empty button inserts, inserts need to be selected and purchased individually.
- 1 x Link ECU Logo Button Insert included in box loose.
