Link ECU CANJST - CAN Connection Cable for Plugin ECU's 5pin
CANJST - Link CAN Connection Cable for G4X/G4+ Plug-in ECUs
Brand: Link ECU
Part Number: 101-0197
Description:

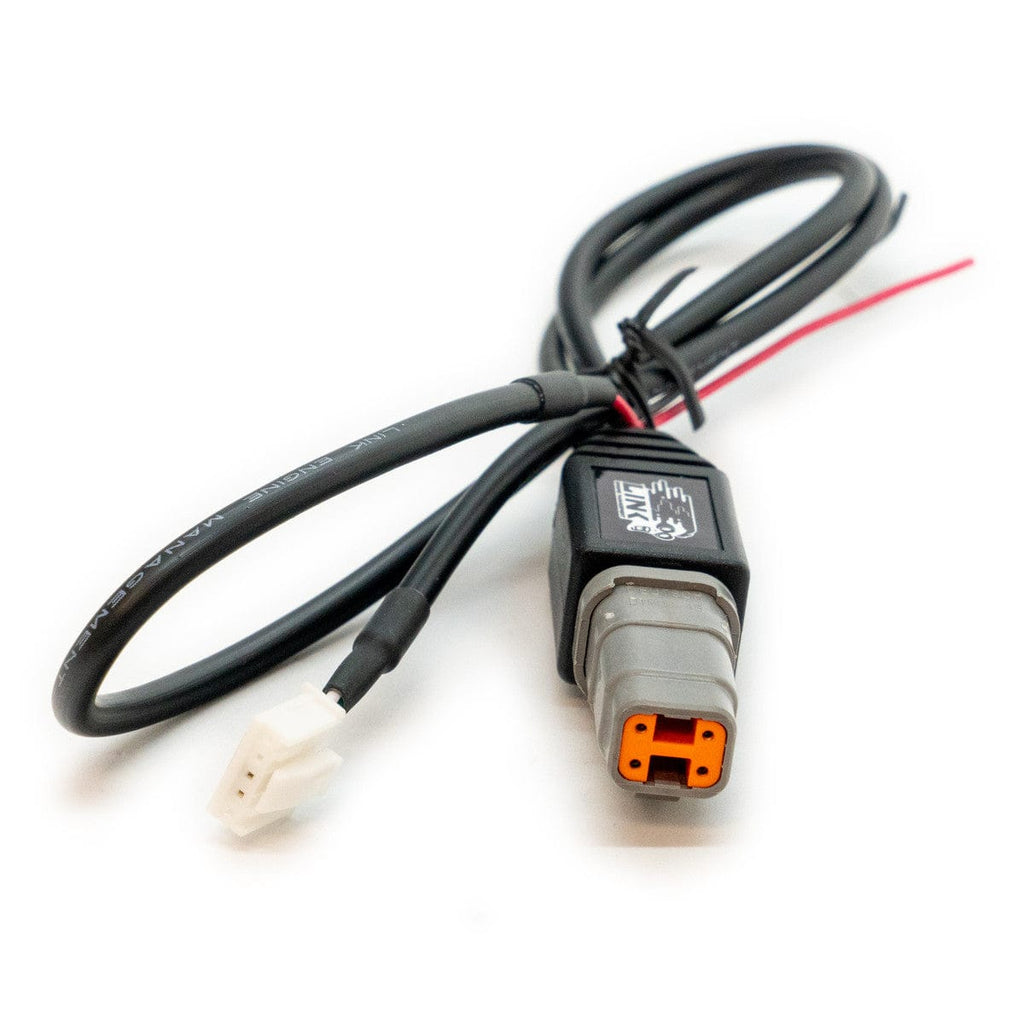

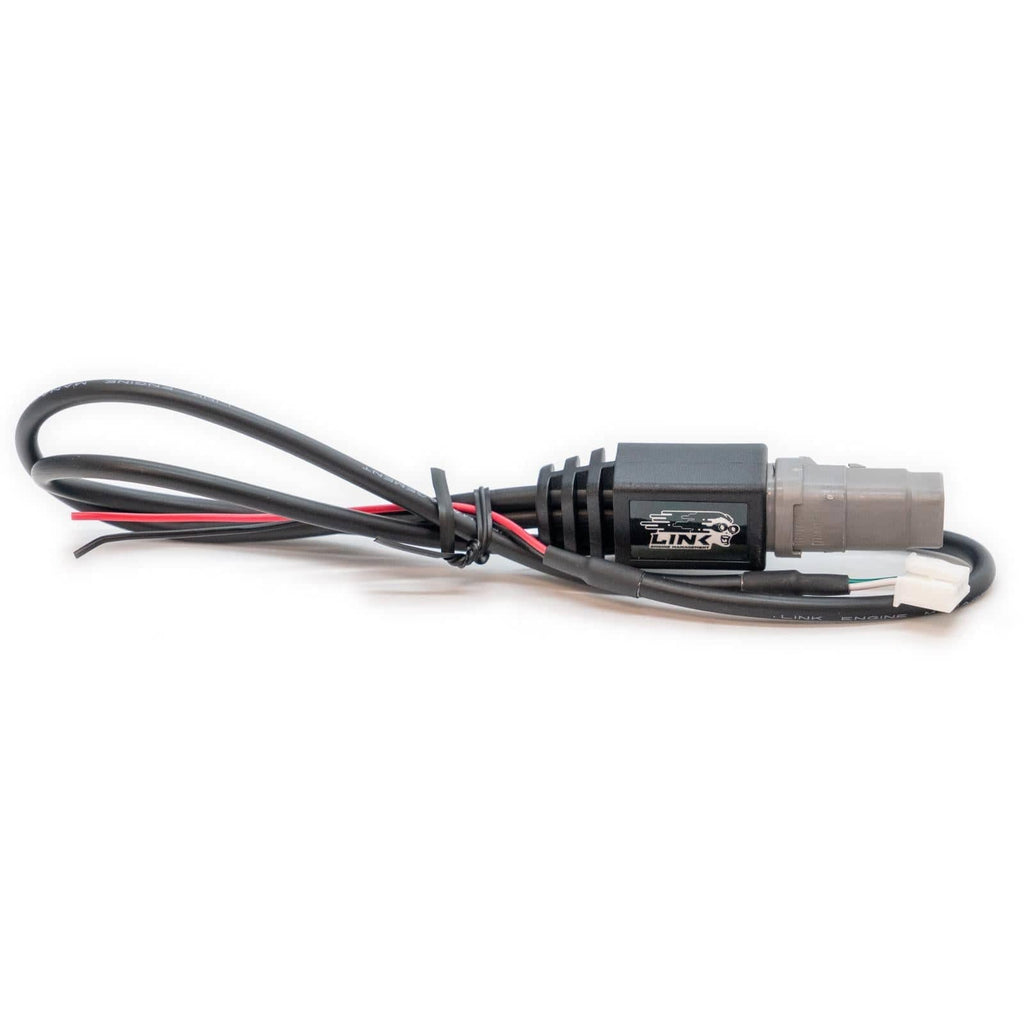

The Link CANJST is required to add CAN communications to G4+/G4X Plug-in ECU's which have a 5 Pin JST CAN connector. Plugs directly into the CAN socket on the ECU PCB. 12V and Ground via flying lead. Terminates to a DTM4 Male Connector which is compatible with other Link CAN accessories including the CAN Extension cable (PN 101-0214) and CAN Splitter Cable (PN 101-0212).
Features
- DTM4 Male to JST4.
- 12V and GND Terminated to JST5.
Suits
- Check your ECU to see if it has a 5 Pin CAN connector.
What's in the Box
- CANJST - 5 Pin JST to DTM4 Cable
Specifications
-
Product Dimensions: 570mm(L)x20mm(W)x15mm(H); 22.44in(L)x0.79in(W)x0.59in(H)
-
Product Weight: 45 grams (1.59 ounces)
-
Electrical: Maximum Input Voltage: 300V; Maximum Continuous Current Draw: 3A; Gauges of wire: 20AWG/0.5mm2
-
Misc.: Pin 4: CAN H; Pin 3: CAN L; Pin 2: Ground; Pin 1: 12V
-
Raw Calibration Specs: Pin 1: 12V; Pin 2: Ground; Pin 3: CAN Low; Pin 4: CAN High
Notes
- Not compatible with the below Plug-in ECUs (these require a CANJST4 Cable PN 101-0198):
- 214-4100 - Plug-in ECU G4X Nissan GTR with E-Throttle
- 217-4100 - Plug-in ECU G4X Nissan S15 with E-Throttle
- 233-4000 - Plug-in ECU G4X Honda S2000 AP1
- 228-4000 - Plug-in ECU G4X Subaru WRX V5-6
- 237-4000 - Plug-in ECU G4X Honda HC20X Type-R DC5/RSX
- 238-4000 - Plug-in ECU G4X Subaru WRX11
- 239-4000 - Plug-in ECU G4X MX5NB2X
- 240-4000 - Plug-in ECU G4X MX5NB1X
- 243-4000 - Plug-in ECU G4X WRX11 USDM
