Link ECU Electronic Throttle Body Kit - 54mm ETB54
Brand: Link ECU
Part Number: 101-0191
Description:
The Link 54mm Electronic Throttle Body Kit is a high-quality E-throttle solution designed for motorsport and performance applications. Featuring an 54mm bore, dual throttle position sensors for redundancy and a powerful integrated actuator, it delivers precise throttle control when paired with a compatible Link ECU.
Features
The Link 54mm Electronic Throttle Body Kit has the following specifications:
- ECU Tuning Features
- 54mm Bore size
- Dual potentiometer redundancy
- Bosch quality and performance
- Includes groove on inlet port flange
Suits
- Requires a compatible Link ECU with built-in E-throttle or an external E-throttle Module (115-1000).
- Suitable for use with an electronic accelerator pedal such as the Link PN 101-0188 or pedal position sensors.

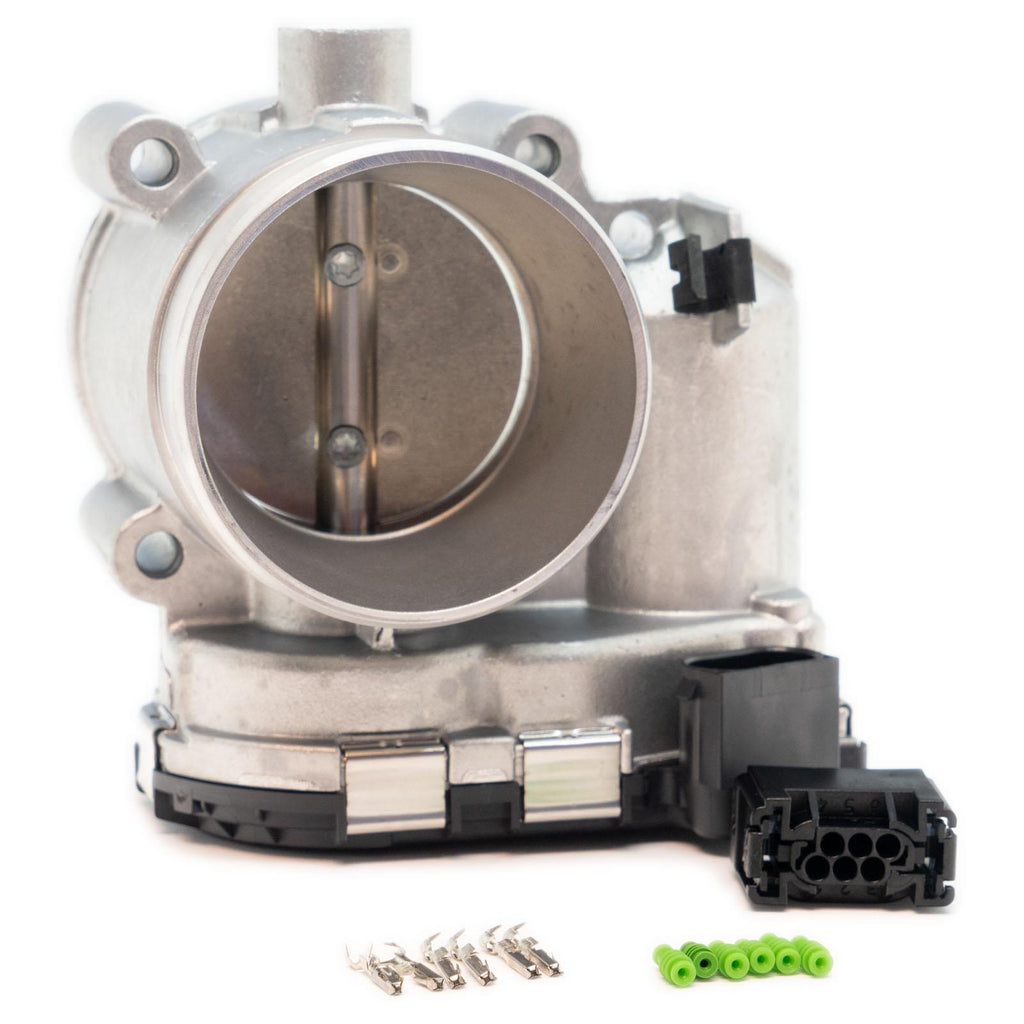

What's in the Box

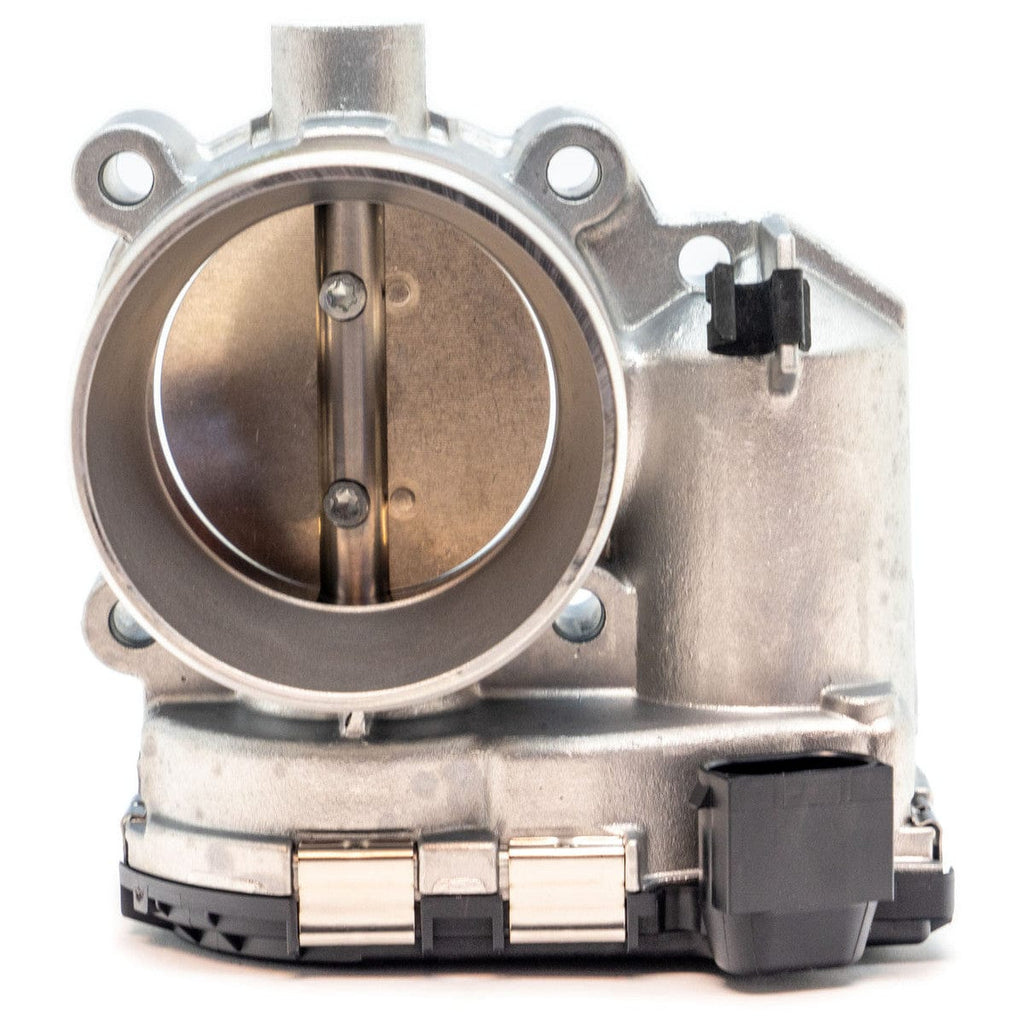

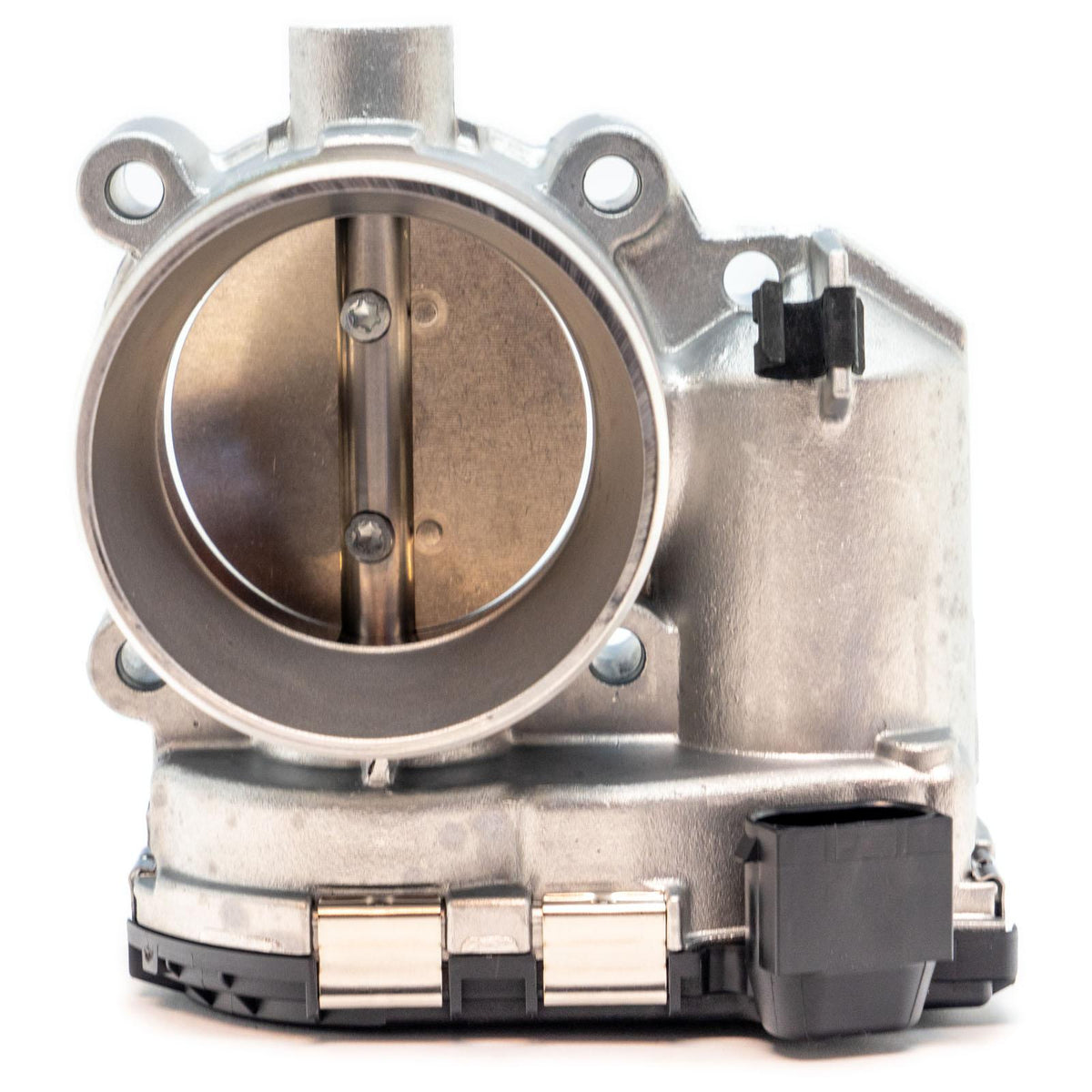

- Bosch Electronic Throttle Body (54mm bore)

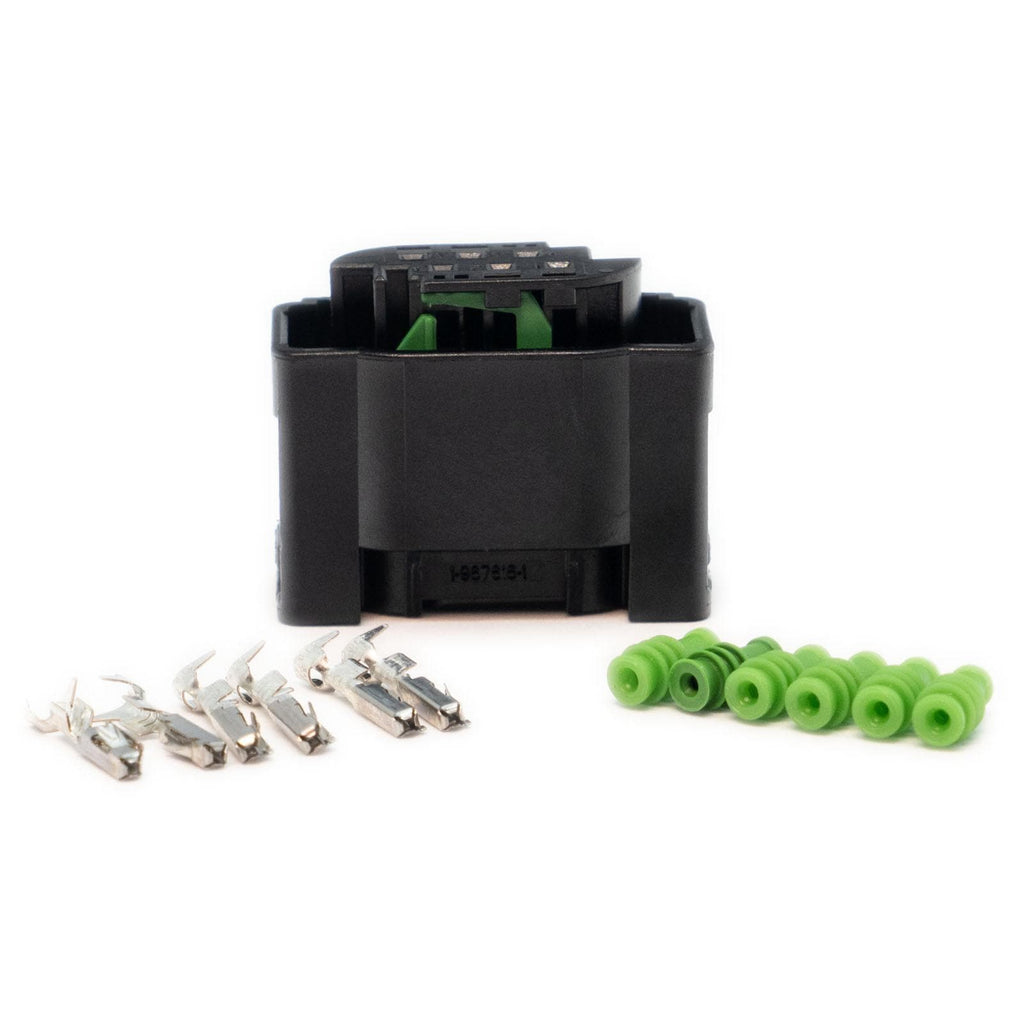

- Bosch E-Throttle Mating Connector, 6-pin AMP
- Printed Accessory instructions
Specifications
-
Electrical: Operating Voltage Range: 6-16V; Maximum Input Voltage: 16V; Maximum Continuous Current Draw: 10A; TPS Output: 0-5V
-
Connector: AMP 6-pin
Notes
- Further details on E-Throttle setup can be found in the PC Link helpfile.
