Link ECU E-Throttle Accelerator Pedal Module PED
Brand: Link ECU
Part Number: 101-0188
Description:

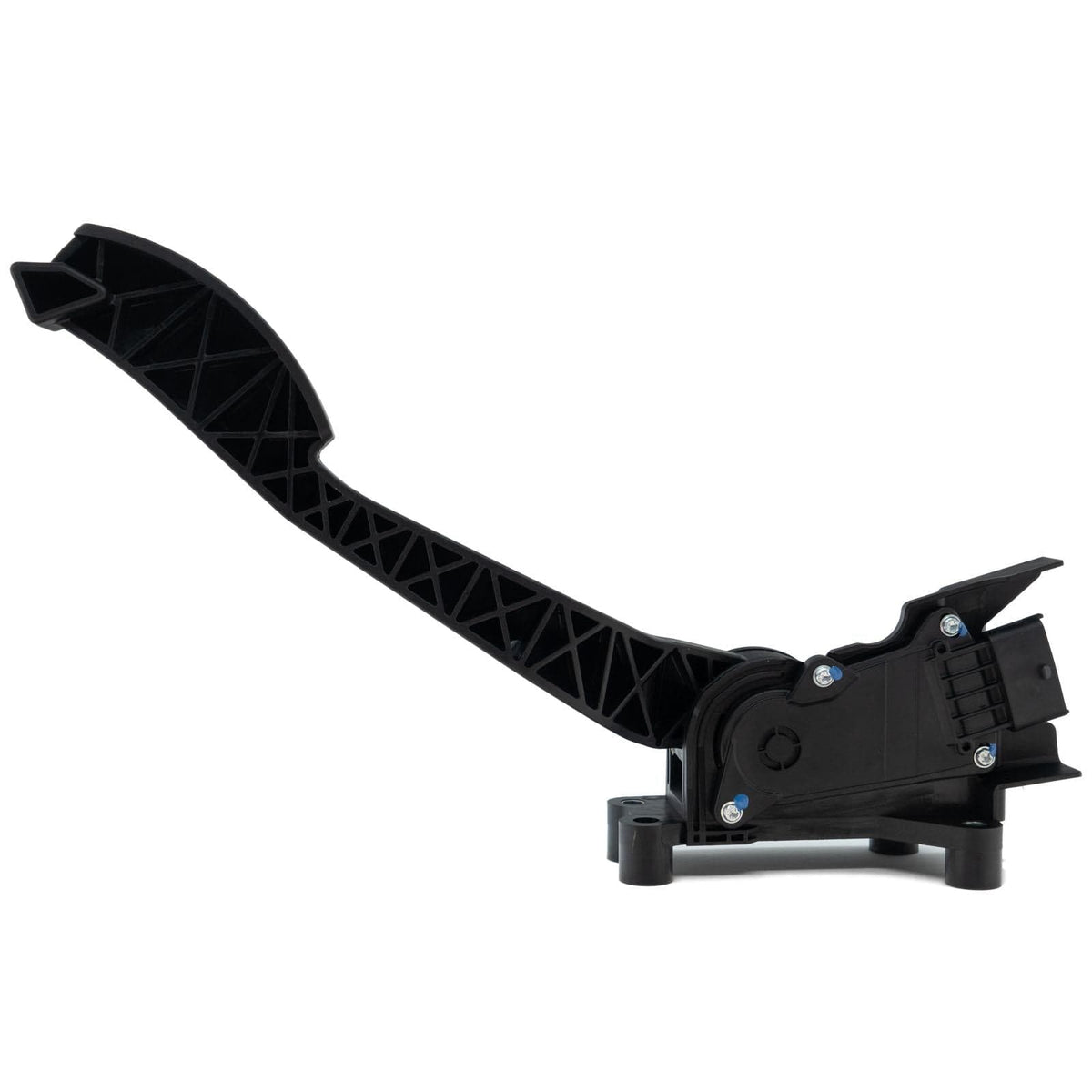

The Link Accelerator Pedal Module is a universal E-Throttle (drive-by-wire) pedal designed for motorsport and performance vehicles. Featuring dual potentiometer outputs for redundant pedal position measurement and a firewall-mounted design, it delivers precise, reliable throttle input for use with compatible Link ECUs.
E-throttle is faster responding, requires less maintenance, gives you better fuel economy and lowers emissions.
Features
The Link Accelerator Pedal Module has the following specifications:
- ECU Tuning Features
- Universal firewall-mounted design
- 16degree (~70mm) travel
- Dual potentiometer outputs
- Redundant pedal position measurement
- Smooth, progressive pedal travel
- Compact and lightweight construction
Suits
- Requires a compatible Link ECU with built-in E-throttle or an external E-throttle Module (115-1000).
- For some Plug-in ECUs without built-in e-throttle there is an upgrade option available (PN 400-0100).

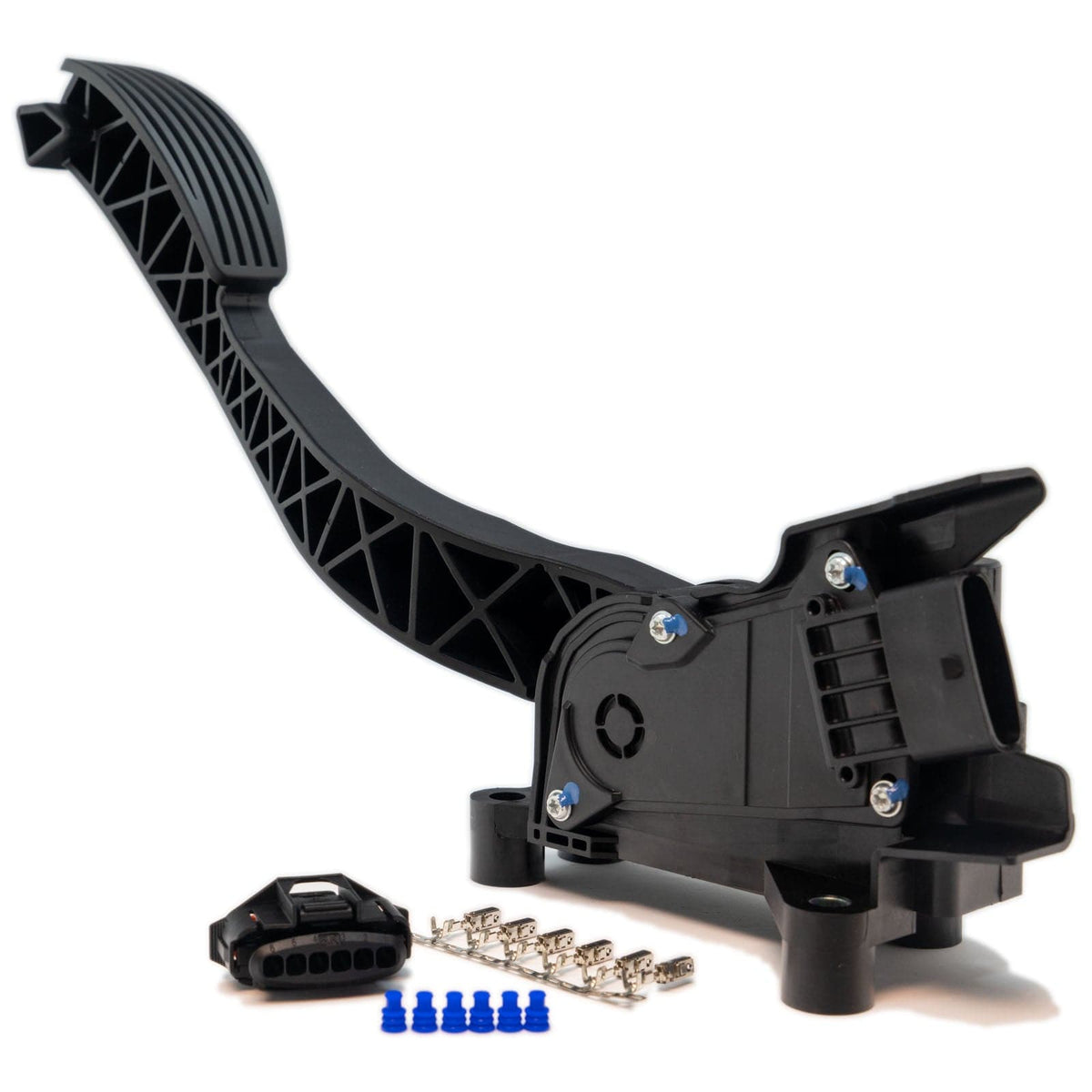

What's in the Box
- Bosch Accelerator Pedal Module
- Bosch Accelerator Pedal Module - 6 Pin Mating Connector
- Printed Accessory instructions
Specifications
-
Product Dimensions: 370mm(L)x250mm(W)x90mm(H); 14.57in(L)x9.84in(W)x3.54in(H)
-
Product Weight: 400 grams (14.11 ounces)
-
Electrical: Operating Voltage Range: 4.7-5.3V; Maximum Input Voltage: 5.3V
-
Connector: Bosch 6-pin
Notes
- Installation and calibration must be completed within PCLink before use.
- Further details on E-Throttle setup can be found in the PC Link helpfile.
