Link ECU 140 Bar Pressure Sensor HPS
Liquid Pressure Sensor, 140 Bar/2030PSI, M10x1
Brand: Link ECU
Part Number: 101-0186
Description:
The Link 140 Bar Pressure Sensor is a compact, high-accuracy pressure sensor designed for measuring liquid pressure up to 140 Bar (2030psi). Featuring an M10 x 1 threaded fitting with a 45deg cone seat and a compact 3-pin connector, it delivers reliable pressure measurement for fuel, oil and hydraulic applications.
Features
The Link 140 Bar Pressure Sensor has the following highlight features:
- Highights
- Pressure range: 0-140 Bar (2030psi)
- M10 x 1 threaded fitting
- 45deg cone seat

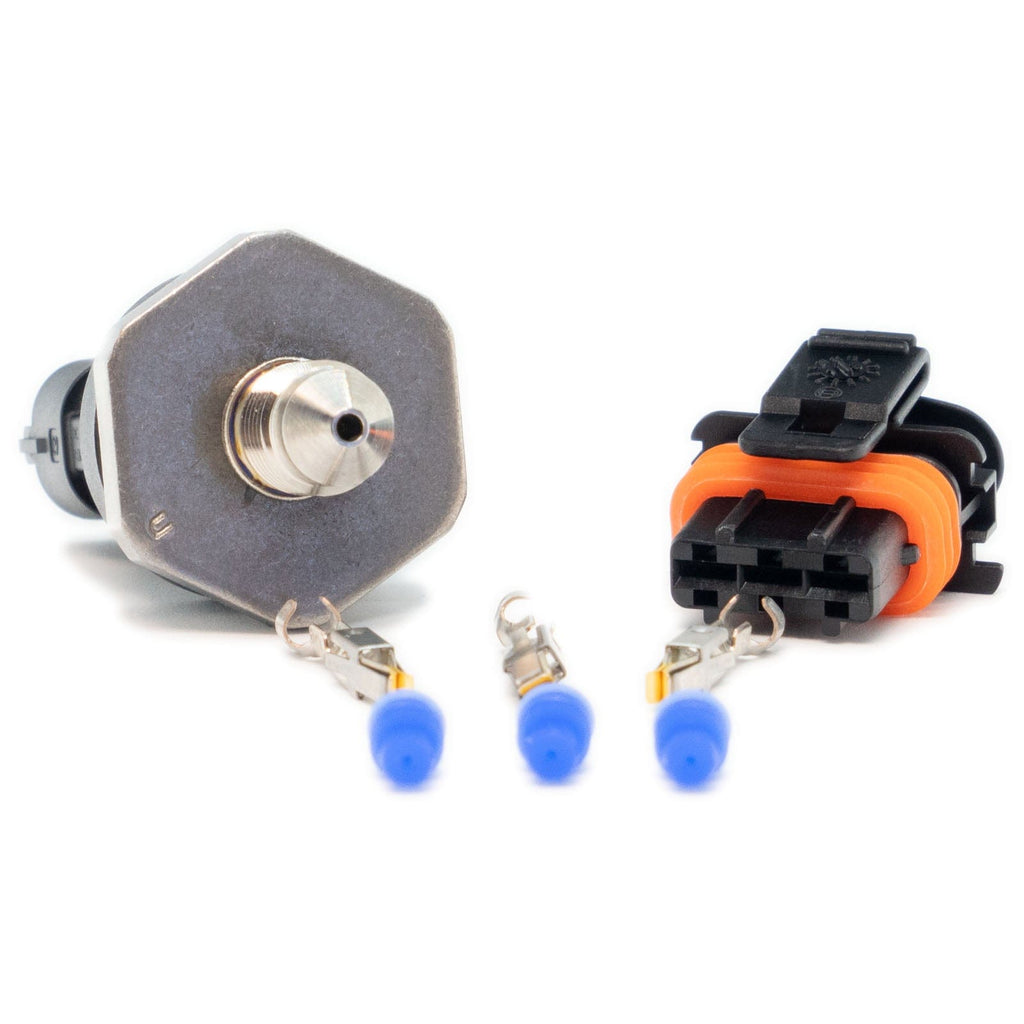

What's in the Box
- Bosch Pressure Sensor for Liquid 140 bar

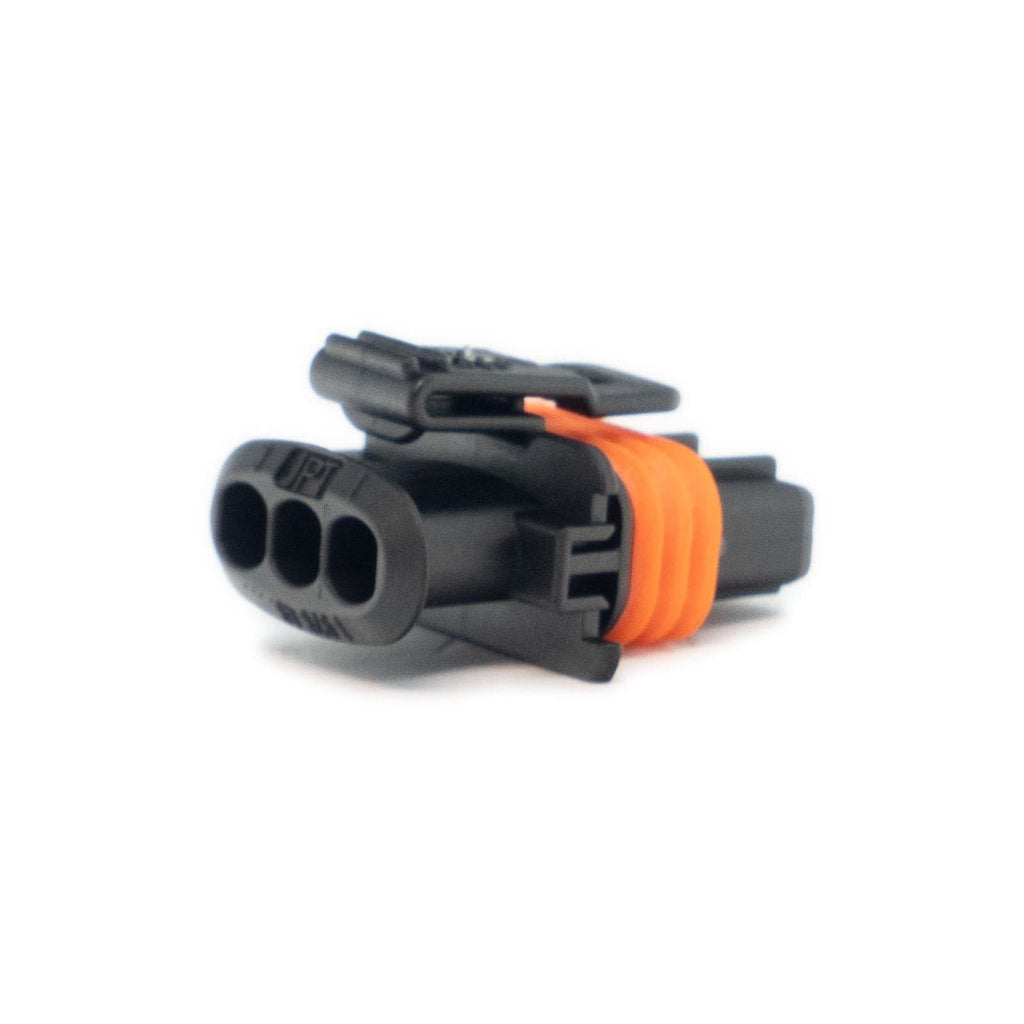

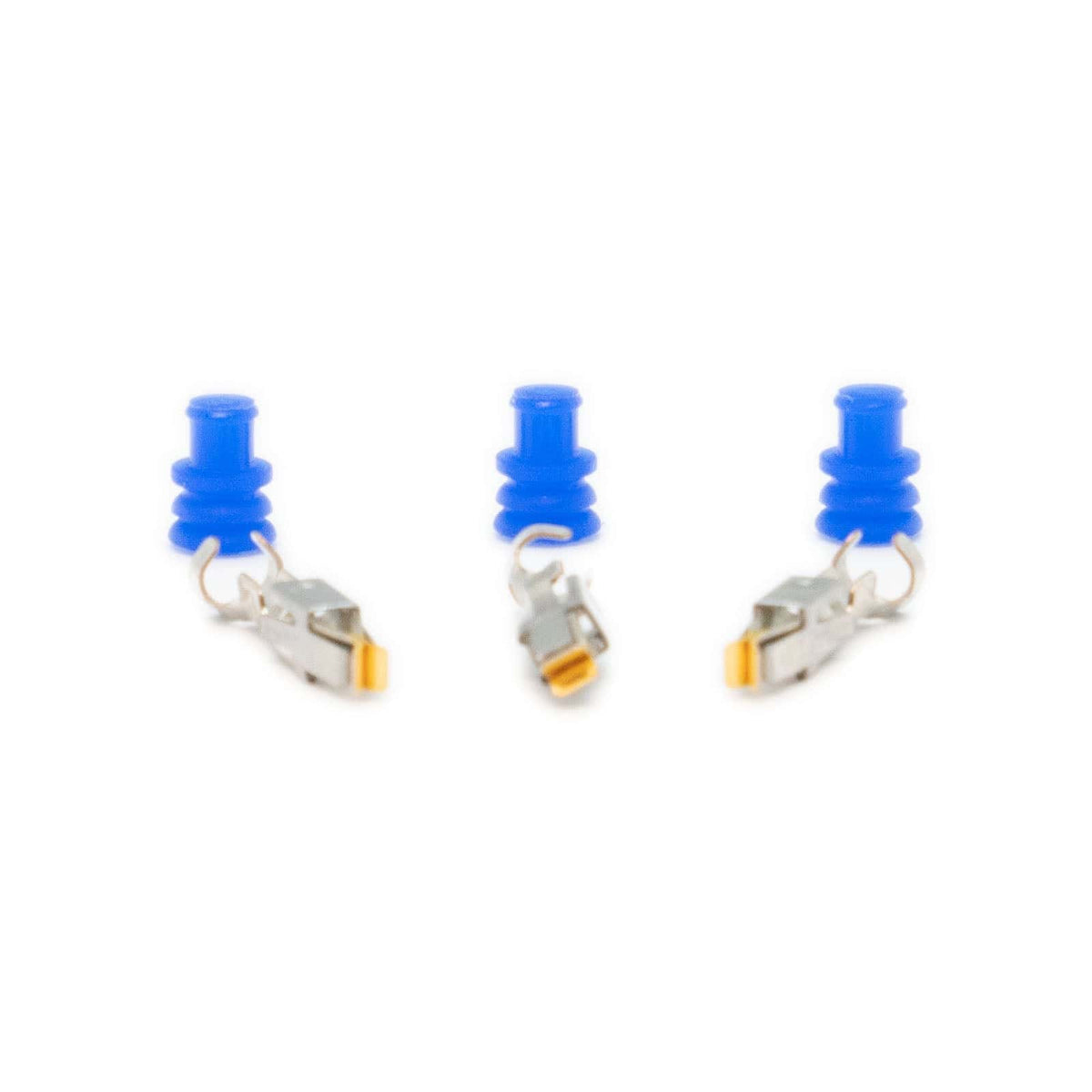

- Bosch Mating Connector 3-pin Compact for Pressure Sensor
- Printed Accessory instructions
Specifications
-
Product Dimensions: 50mm(L)x30mm(W)x30mm(H); 1.97in(L)x1.18in(W)x1.18in(H)
-
Product Weight: 40 grams (1.41 ounces)
-
Electrical: Operating Voltage Range: 4.75-5.25V; Maximum Input Voltage: 5.25V
-
PCLink Calibration Name: "Bosch 140Bar 0 261 545 053"
-
Raw Calibration Specs: 0.5V = 0kPa, 4.5V = 14000kPa
-
Connector: Compact 3-pin
Notes
- Suitable for liquid pressure measurement only.
- Up to 2030 PSI above atmospheric pressure, cannot be used to read vacuum.
- Install with the pressure tube pointing downwards (0deg to +/-90deg from vertical).
