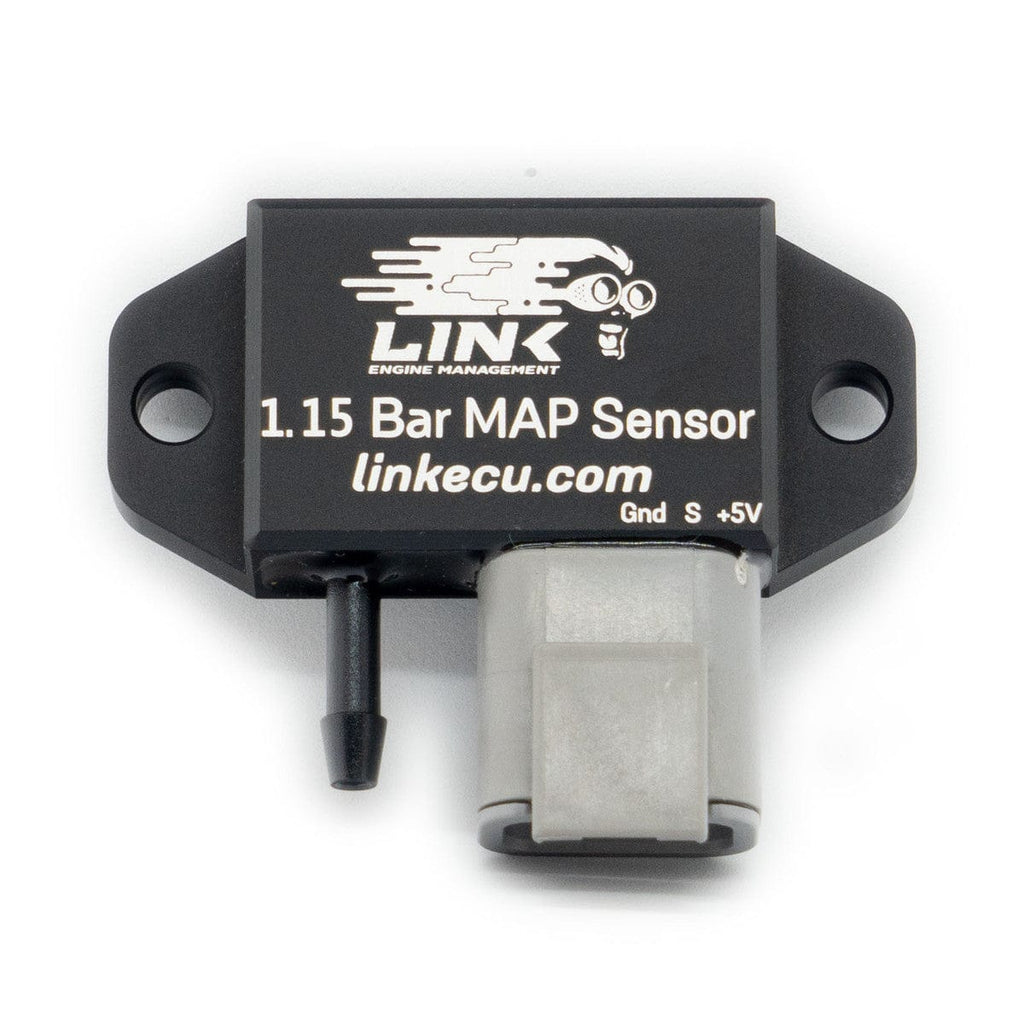

Link ECU 1.15 Bar MAP Sensor MAP1.15
MAP Sensor 1.15 Bar absolute
Brand: Link ECU
Part Number: 101-0162
Description:
The Link 1.15 Bar MAP Sensor is a high-accuracy manifold absolute pressure (MAP) sensor designed for naturally aspirated engines. It can measure manifold pressures from full vacuum to 2 psi (0.15 bar) of positive pressure, delivering accurate and reliable pressure measurement for precise engine tuning.
Suits
- All Link ECUs.
- Other aftermarket ECUs with analogue MAP sensor inputs.
- Applications up to 2 psi (0.15 bar) positive intake pressure.

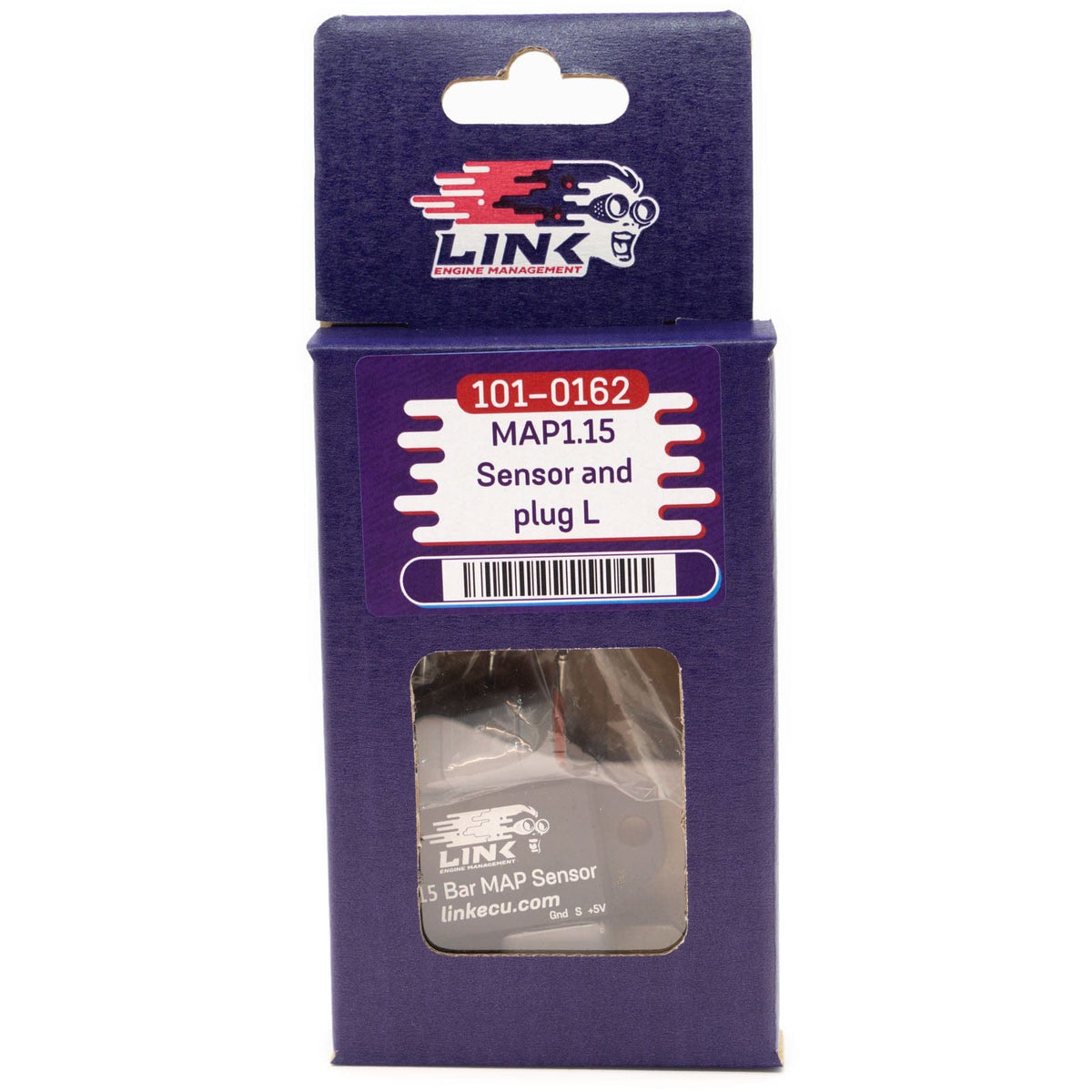

What's in the Box
- 1.15 Bar MAP Sensor

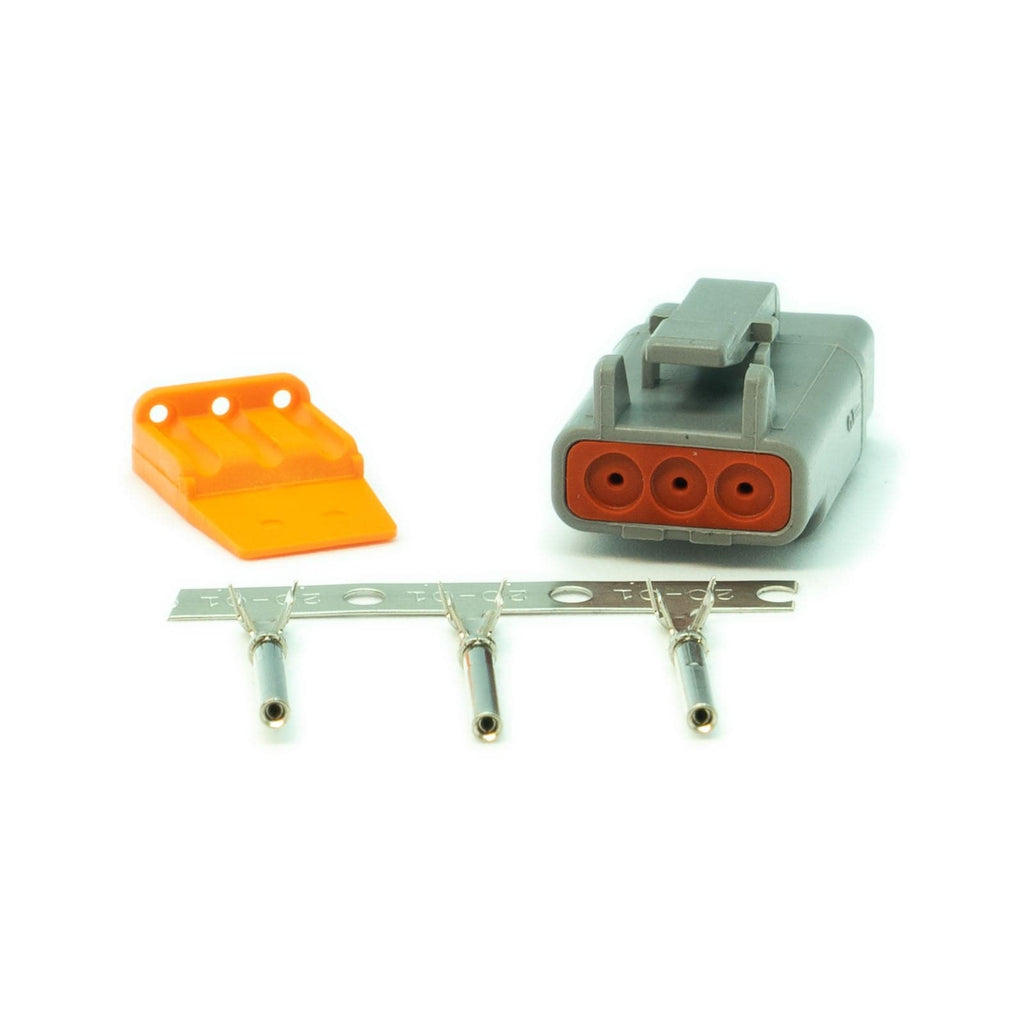

- Deutsch 3 Way Plug Kit
Specifications
-
Highlights: Pressure range: 0-1.15 bar absolute.; High-resolution pressure measurement.; Compact aluminium enclosure.; 4mm (3/16") hose barb connection.; Two-bolt mounting design.; Includes 3-pin Deutsch DTM connector kit.; Wiring pinout marked on the sensor housing.; Designed and manufactured by LinkECU.
-
Product Dimensions: 60mm(L)x50mm(W)x20mm(H); 2.36in(L)x1.97in(W)x0.79in(H)
-
Product Weight: 40 grams (1.41 ounces)
-
Electrical: Operating Voltage Range: 4.75-5.25V; Maximum Input Voltage: 5.25V; Maximum Continuous Current Draw: 10mA
-
PCLink Calibration Name: "Link 1.15 Bar"
-
Raw Calibration Specs: 0.5V = 21.7kPa, 4.5V = 110kPa
-
Connector: Deutsch 3 Way Plug Kit (PN 101-0128)
Notes
- Mount the sensor higher than the intake manifold connection point.
- In PCLink, select "Link 1.15 Bar" as the MAP sensor type.
- Not recommended for forced induction vehicles.
