Link ECU Coolant Temperature Sensor NTC12
Coolant Temperature Sensor M12 with plug and terminals
Brand: Link ECU
Part Number: 101-0077
Description:
The Link NTC12 Temperature Sensor is a high-quality NTC thermistor designed to measure fluid temperatures including coolant, oil and fuel. Featuring an M12 x 1.5 thread, operating range from -40degC to 130degC and a compact, robust design, it delivers accurate temperature measurement for a wide range of motorsport and performance applications.

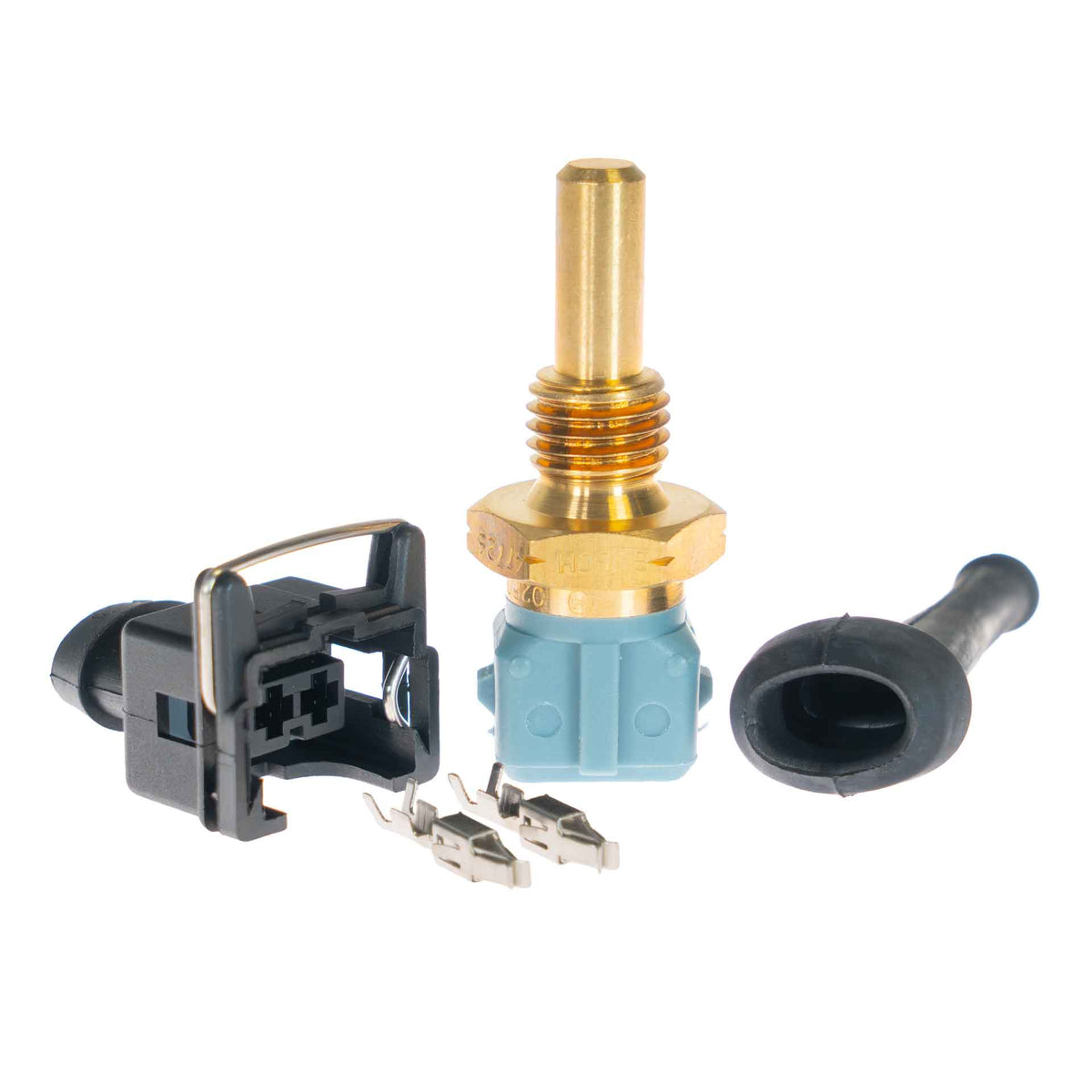

What's in the Box

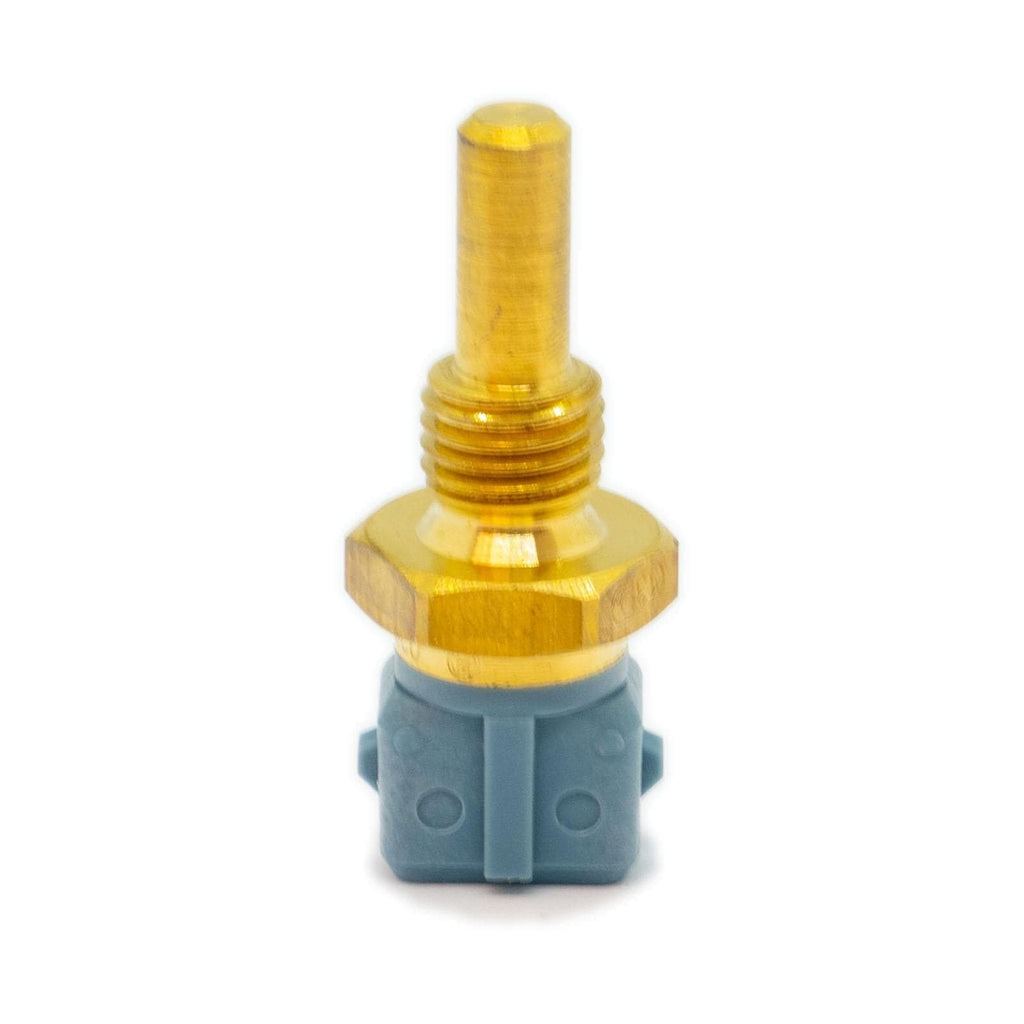

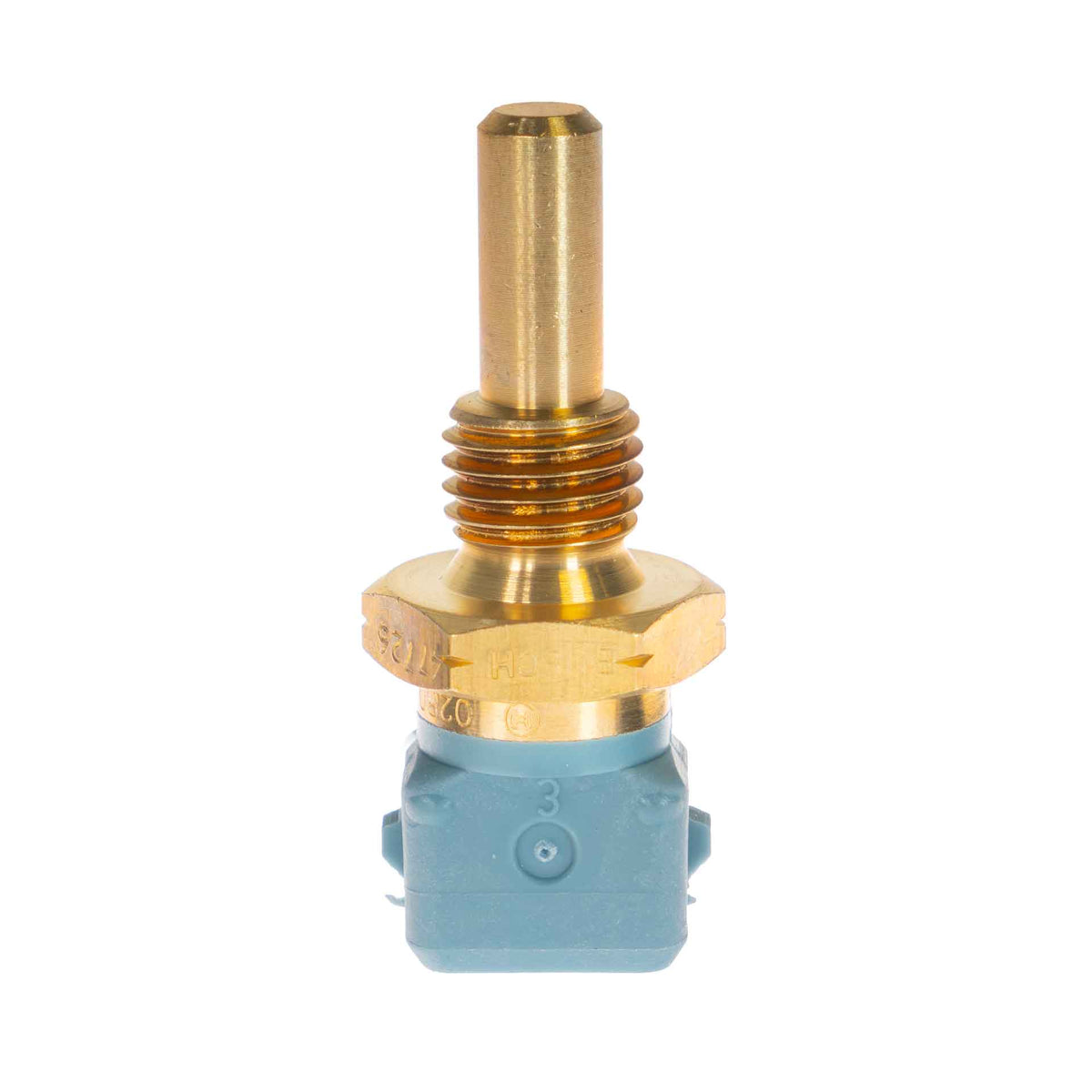

- Fluid Temp Sensor M12

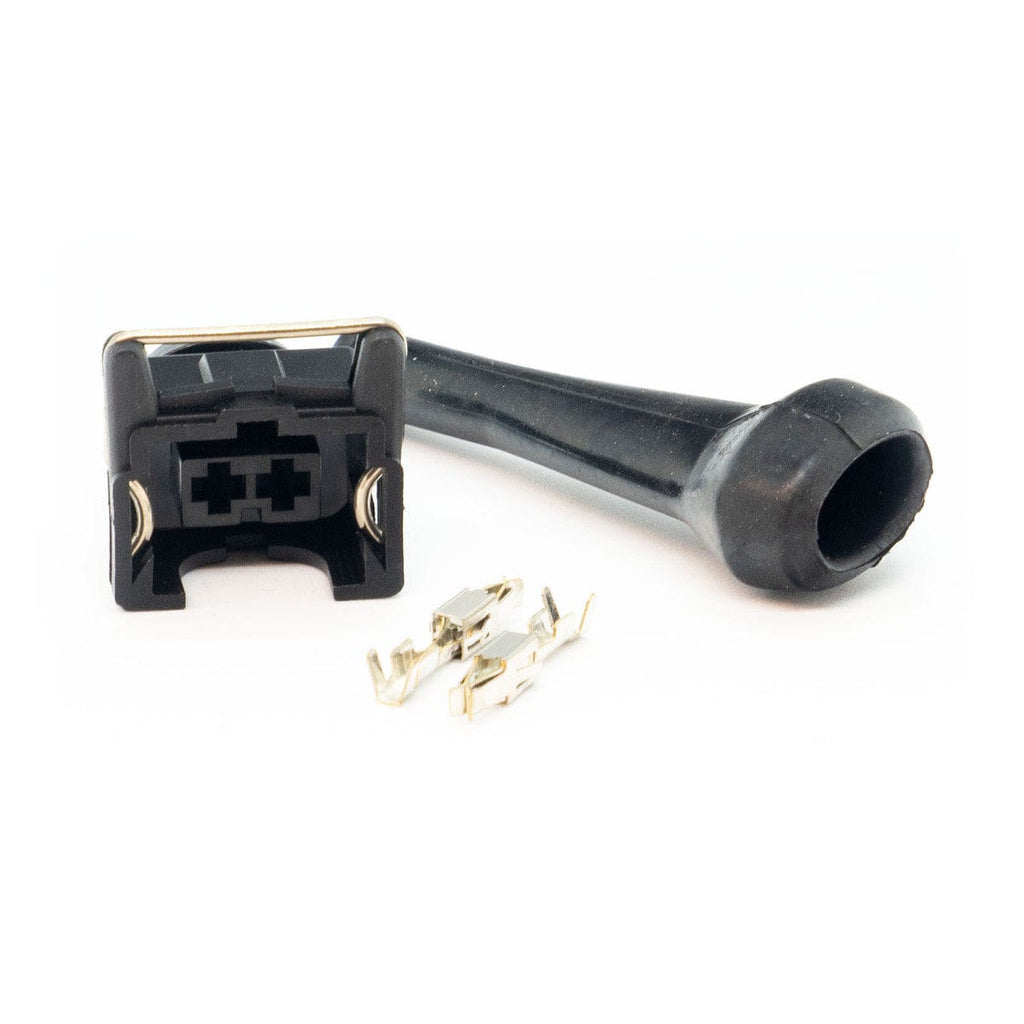

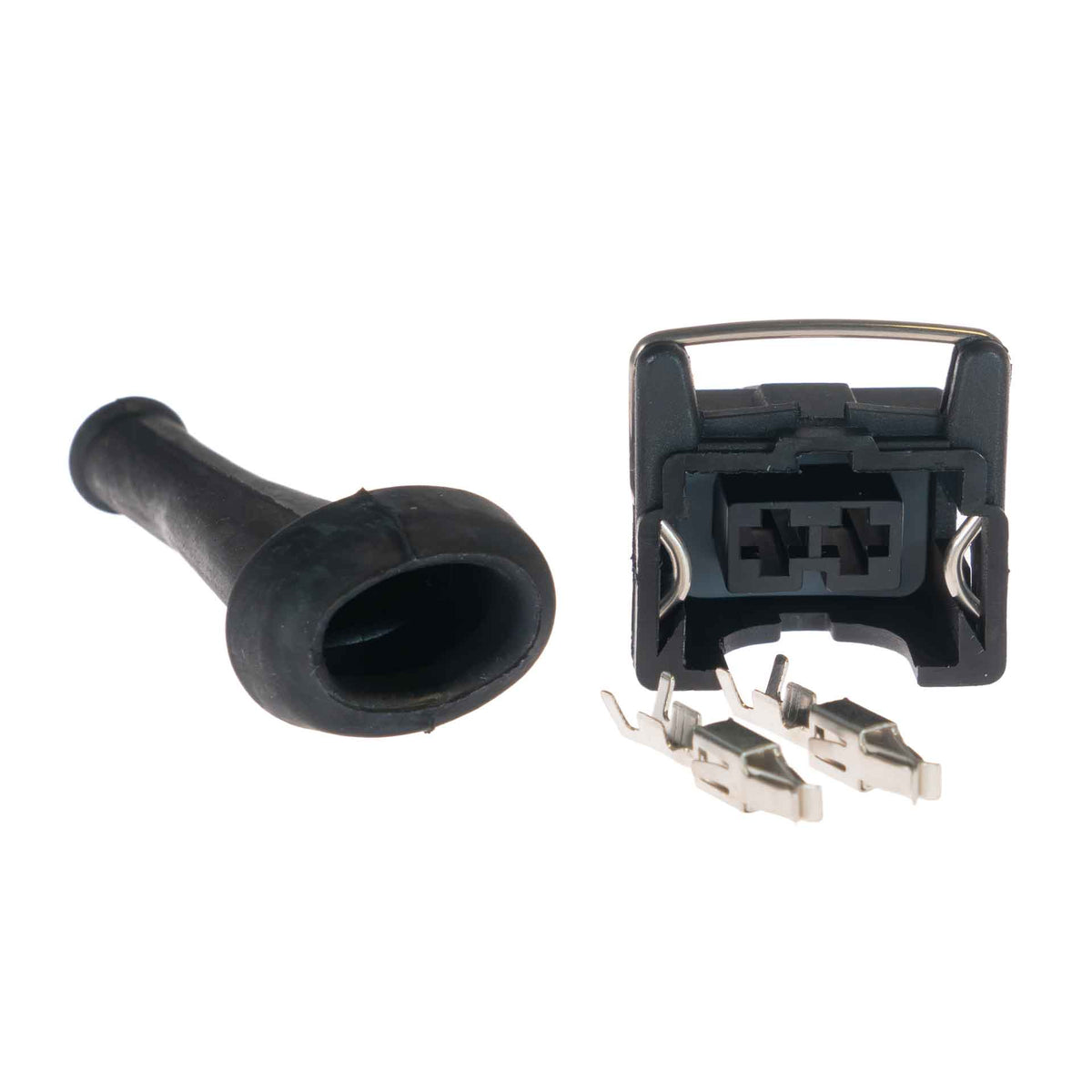

- Bosch Style 2 way Plug, Pin and Boot
Specifications
-
Highlights: The Link NTC12 Temperature Sensor has the following specifications:; One pin for signal, one for sensor ground, polarity does not matter; NTC thermistor.; M12 x 1.5 male thread.; Temperature Range: -40degC to 130degC.; Nominal Resistance: 2.5k ohm +/-5% @ 20degC.; Accuracy @ 25degC: +/-1.4degC.; Accuracy @ 100degC: +/-3.4degC.; Response Time (tau63): <15s (still water).; Bosch Jetronic connector.; E85 compatible.; Comes with Bosch Style 2 way Plug, Pin and Boot.
-
Product Dimensions: 50.5mm(L)x25mm(W)x20mm(H); 1.97in(L)x0.98in(W)x0.79in(H)
-
Product Weight: 29 grams (1.02 ounces)
-
Electrical: Operating Voltage Range: 5V
-
PCLink Calibration Name: "Link NTC12 & IATB" OR "Std Bosch NTC"
-
Raw Calibration Specs: 40degC: 45,313 ohm; 30degC: 26,114 ohm; 20degC: 15,462 ohm; 10degC: 9,397 ohm; 0degC: 5,896 ohm; 10degC: 3,792 ohm; 20degC: 2,500 ohm; 30degC: 1,707 ohm; 40degC: 1,175 ohm; 50degC: 834 ohm; 60degC: 596 ohm; 70degC: 436 ohm; 80degC: 323 ohm; 90degC: 243 ohm; 100degC: 187 ohm; 110degC: 144 ohm; 120degC: 113 ohm; 130degC: 89 ohm; 140degC: 72 ohm; 150degC: 55 ohm
-

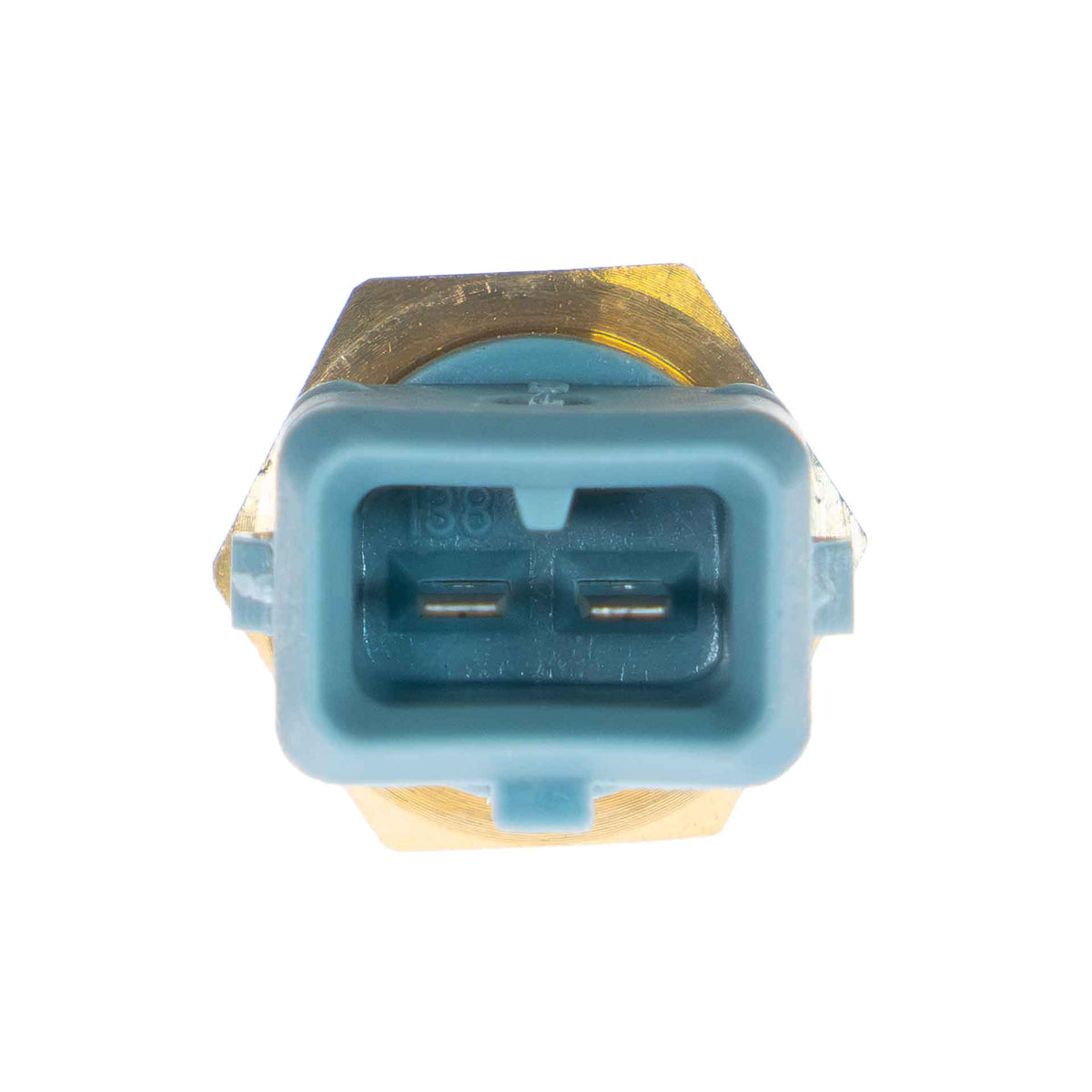

Connector: Bosch 2 Way Plug Kit (PKB2), 101-0051.
Notes
- Sealing washer not included. Can be connected to most ECUs directly to a Temp Input or to an Analog Input using an external pull-up resistor to 5V. Any mounting orientation is suitable.
- One pin for signal, one for sensor ground, polarity does not matter
