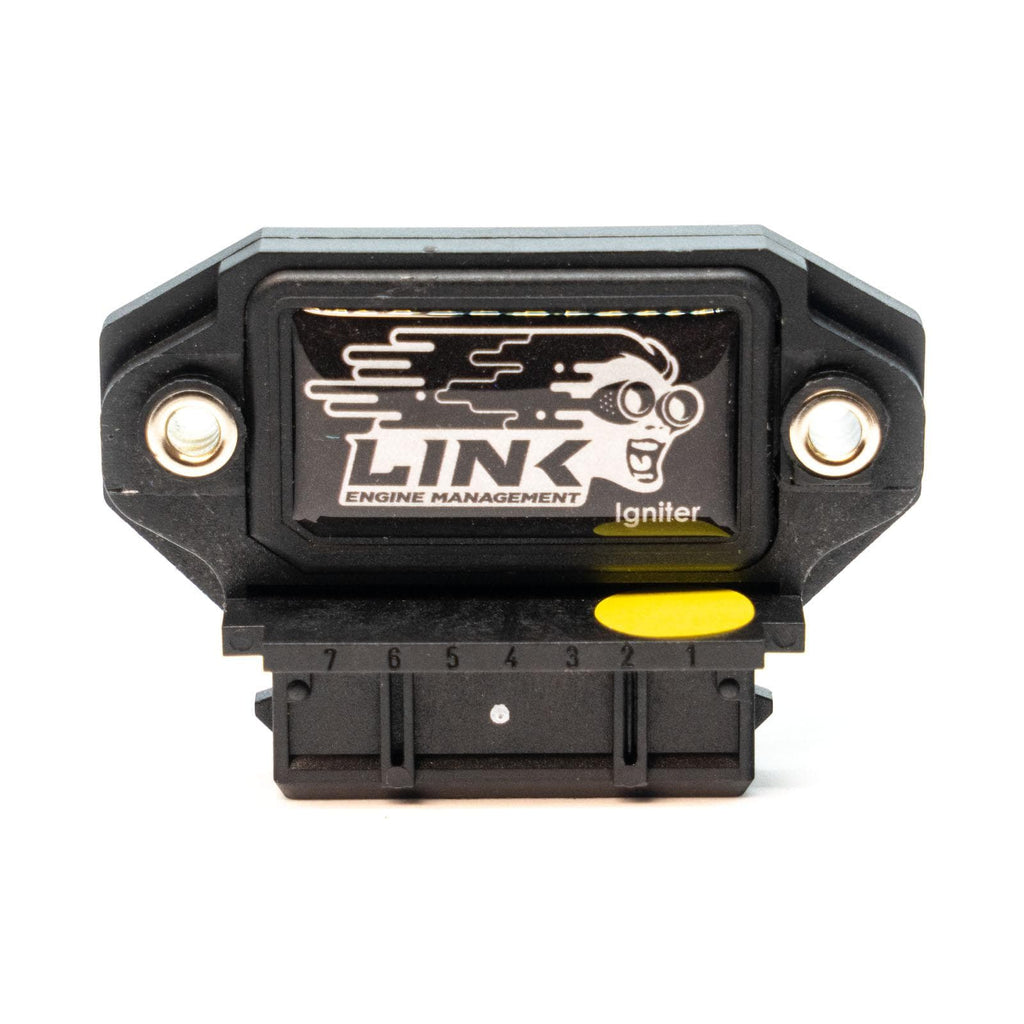

Link ECU Three Channel Inductive Igniter I3
Three Channel Inductive Igniter with plug and terminals
Brand: Link ECU
Part Number: 101-0044
Description:
The Link 3 Channel Ignitor is designed for applications using ignition coils without built-in igniters. Capable of driving up to three non-transistorised ignition coils, it provides a reliable ignition driver solution for a wide range of motorsport and performance applications, including wasted spark on 6 cylinder engines, coil-per-plug setups on 3 cylinder engines or using multiple igniters for 6 and 8 cylinder set-ups.
Features
The Link 3 Channel Ignitor has the following specifications:
- ECU Tuning Features
- Drives up to 3 ignition coils
- Suitable for non-transistorised ("dumb") ignition coils
- Triple Darlington transistor design
- Bosch 7-pin Jetronic connector
Suits
- Suitable when using ignition coils without built-in igniters.

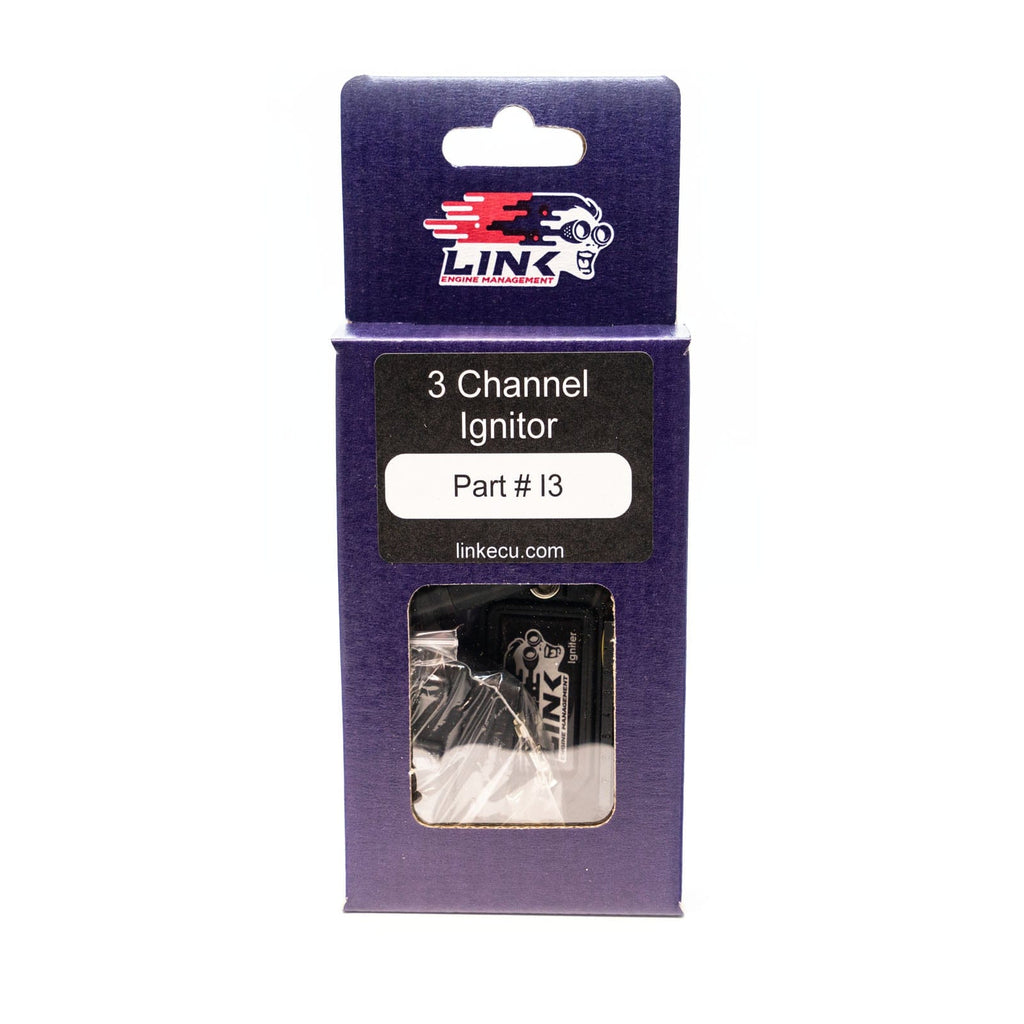

What's in the Box
- Three Channel Igniter
- Wire side Ignitor/Map
- Rubber boot 7 way Bosch
- Printed Accessory instructions
Specifications
-
Product Dimensions: 71mm(L) x 48mm(W) x 21mm(H); 2.80in(L) x 1.89in(W) x 0.83in(H)
-
Product Weight: 45 grams (1.59 ounces)
-
Electrical: Operating Voltage Range: 6-18V; Maximum Input Voltage: 400V; Primary current up to 8.5A per channel
-
Misc.: Operating Temperature -40degC to +110degC
-
Connector: Bosch 7-pin Jetronic
Notes
- Mount to a suitable heatsink or metal surface using heat transfer compound.
- Protect the connector from water and moisture.
- Do not parallel multiple ignition outputs onto a single channel.
